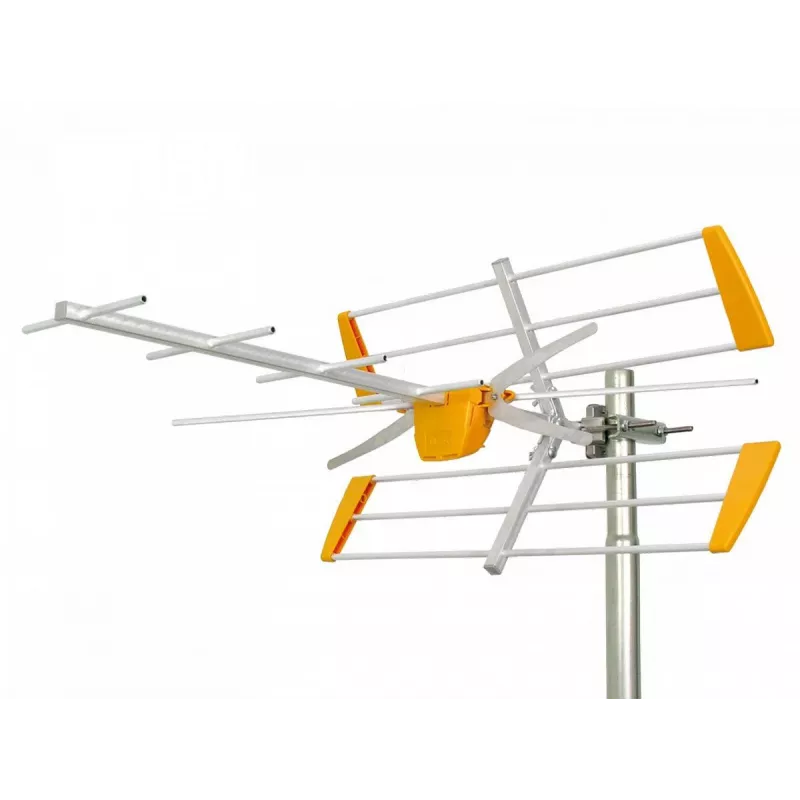

Antena direcional Televes YAGI EDGE MIX Combo, Ref. 111842

The Televes YAGI EDGE MIX Combo is a high-performance directional Yagi antenna designed for optimal reception of VHF and UHF digital terrestrial television (DVB-T/T2). With a robust construction and advanced filtering, it ensures clear signal reception even in challenging environments.

Advantages

This antenna combines VHF and UHF reception in a single unit, eliminating the need for multiple antennas. Its pre-assembled, tool-free design simplifies installation, while the integrated LTE/5G filter protects against interference from mobile networks. The adjustable polarization (horizontal/vertical) provides flexibility for optimal signal alignment.

Suitable for

• Digital terrestrial television reception (DVB-T/T2)
• Areas with mixed VHF and UHF broadcast signals
• Installations requiring a compact, high-gain directional antenna

Key specifications

• Antenna Type: Directional Yagi
• Frequency Bands: VHF (174-230 MHz, Ch. 5-12), UHF (470-694 MHz, Ch. 21-48)
• Gain: 10 dBi (VHF), 17 dBi (UHF)
• Elements: 3 (VHF), 21 (UHF)
• LTE/5G Filtering: Yes (C694 / LTE700 Ready)
• Output Impedance: 75 Ω
• Connector Type: F-type
• Polarization: Horizontal/Vertical (Adjustable)
• Front-to-Back Ratio (UHF): >25 dB
• Wind Load (130 km/h): 90 N
• Material: Aluminum, ABS Plastic
• Mounting: Mast Clamp (up to Ø60mm)
• Assembly: Pre-assembled, tool-free
• VSWR: < 2:1

Recommendations

For best performance, mount the antenna outdoors with a clear line of sight to the broadcast tower. Use high-quality 75 Ω coaxial cable and F-type connectors. Ensure the mast is securely clamped and the antenna is properly grounded.
