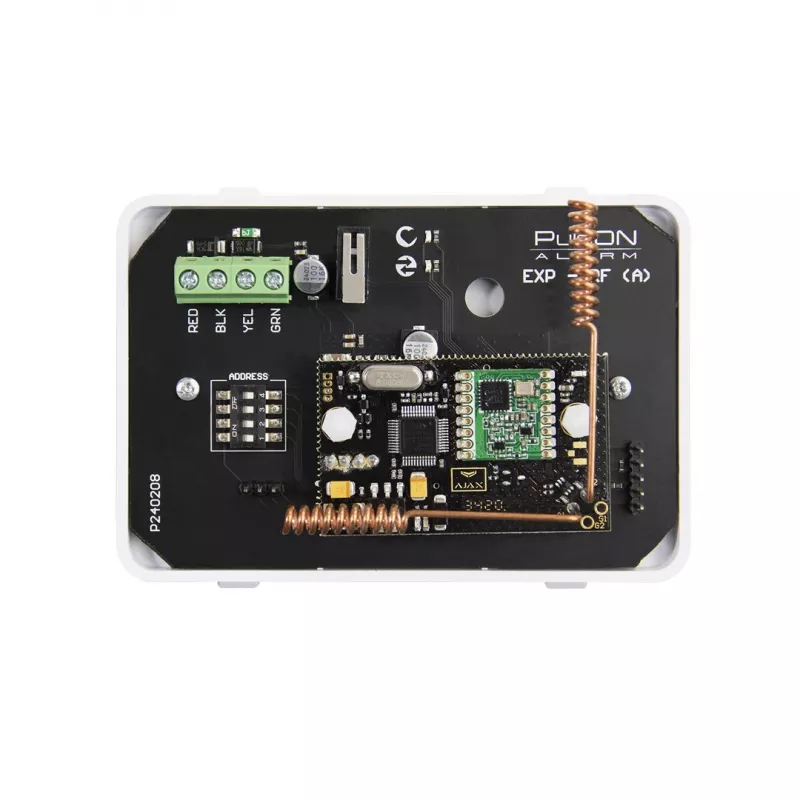

Kit de avaliação de radar UWB BCS PulsON EXP-RF(Ajax)-BOX

The BCS PulsON EXP-RF(Ajax)-BOX is a professional Ultra-Wideband (UWB) radar evaluation kit designed for precision ranging, asset tracking, and imaging applications. Based on the PulsON 440 transceiver, this enclosed RF module box provides sub-centimeter accuracy and a maximum line-of-sight range of up to 200 meters. It is ideal for developers and engineers integrating UWB technology into industrial, security, or research systems.

Advantages

Sub-centimeter ranging accuracy ensures reliable distance measurement. The UWB technology operates in the 3.1–5.3 GHz frequency band, offering robust performance in multipath environments. The enclosed box form factor simplifies prototyping and field testing. FCC Part 15 compliant for unlicensed operation.

Suitable for

• Precision ranging and positioning systems
• Asset tracking in warehouses or factories
• Collision avoidance for robotics and vehicles
• Radar imaging and sensing research

Key specifications

• Technology: Ultra-Wideband (UWB) Radar/Ranging
• Frequency Band: 3.1 GHz to 5.3 GHz
• Ranging Accuracy: Sub-centimeter
• Maximum Ranging Distance: Up to 200 m (Line of Sight)
• Data Rate (UWB Communication): Up to 6.7 Mbps
• Output Power: FCC Part 15 Compliant (-14 dBm/MHz EIRP)
• Pulse Repetition Frequency (PRF): Configurable, up to 10 MHz
• Interface: SPI, USB (via host board/evaluation kit)
• Antenna Connectors: 2x SMA (for transmit and receive)
• Power Supply: Typically 3.3V DC (module core), higher for box/evaluation kit
• Power Consumption: Approx. 1W (typical operation)
• Operating Temperature: -40°C to +85°C
• Form Factor: Enclosed RF Module / Evaluation Box Component
• Compatibility: Designed for PulsON 440 (P440) UWB Transceiver
• Software Support: SDK and API available for integration
• Regulatory Compliance: FCC Part 15 (UWB)

Recommendations

For optimal performance, use with compatible UWB antennas and ensure line-of-sight conditions. Refer to the PulsON 440 SDK documentation for integration guidelines.
