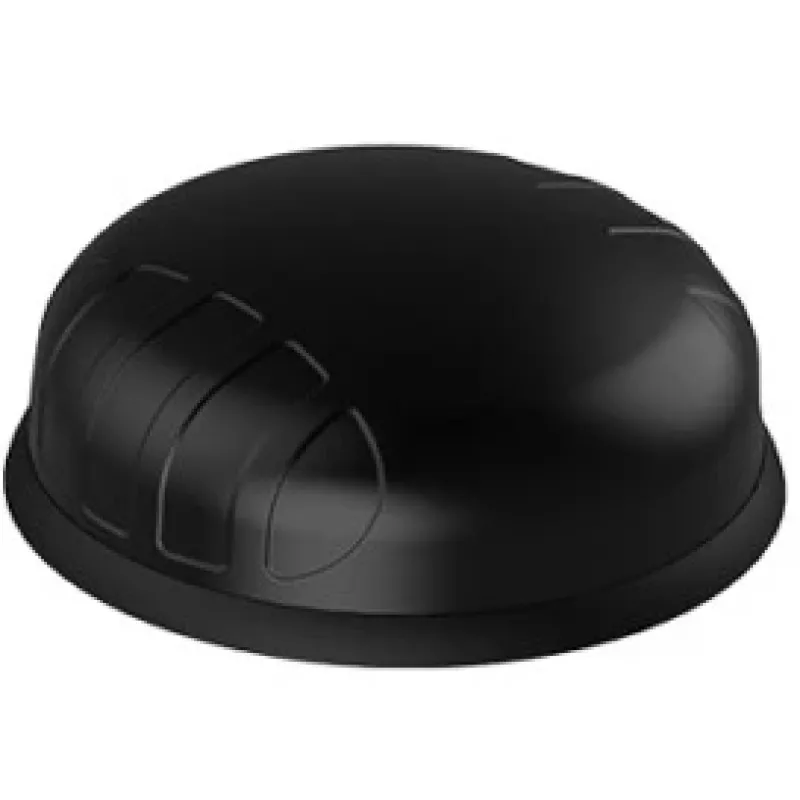

Antena exterior 5G/LTE Poynting A-PUCK-0004-V2-01, 6 dBi, SMA (macho), 2× LTE, 1× GPS

Poynting A-PUCK-0004-V2-01 is an outdoor 5G/LTE antenna offering 6 dBi gain, equipped with SMA (male) connectors and configured with two LTE ports plus a dedicated GPS port. The antenna is intended to improve cellular reception for routers, modems and gateways in multi-operator environments, and its compact, weather-resistant form factor supports both fixed and vehicle-mounted installations.

Advantages

The antenna provides a balanced combination of compact size and 6 dBi peak gain to enhance uplink and downlink performance in areas with weak or variable mobile signals. Dual LTE ports allow connection to dual-modem routers or diversity inputs for improved throughput and stability. An integrated GPS port enables reception of satellite navigation signals separately from the cellular feeds. The use of SMA (male) connectors ensures compatibility with many consumer and industrial cellular devices.

Suitable for

• Outdoor mounting on buildings, poles or vehicle roofs to improve cellular data reception
• Connection to routers, modems and gateways with SMA antenna inputs
• Multi-operator or multi-band installations requiring diversity or MIMO on LTE/5G-capable equipment
• Applications requiring separate GPS reception for navigation, fleet tracking or location services

Key specifications

• Frequency support: 5G/LTE bands (multi-band cellular coverage)
• Peak gain: 6 dBi
• Connectors: SMA (male) for LTE ports; dedicated GPS port
• Port configuration: 2 × LTE, 1 × GPS
• Enclosure: compact outdoor housing designed for fixed or vehicle mounting

How to use

Mount the antenna outdoors in a location with clear access to the sky and minimal obstructions for best cellular and GPS reception. Connect the LTE SMA (male) connectors to the corresponding antenna inputs on your router, modem or gateway, respecting any diversity or MIMO port labeling. Attach the GPS cable to the device's GPS input if required. Ensure all connections are tightened and weatherproofed according to the installation environment, and position the antenna to minimize interference from nearby metal structures or other antennas.

Recommendations

For optimal performance, place the antenna at the highest practical point and orient it vertically. Use quality, low-loss coaxial cables of appropriate length to reduce signal attenuation; avoid excessive cable runs. When installing on vehicles, verify that the mounting location provides a clear view of the sky for GPS reception and secure all cable entries against moisture. If connecting to a dual-antenna router, follow the router manufacturer's guidance on port assignment for diversity or MIMO operation.
