Antena omnidirecional Lancom Systems AirLancer O-360Q-5G

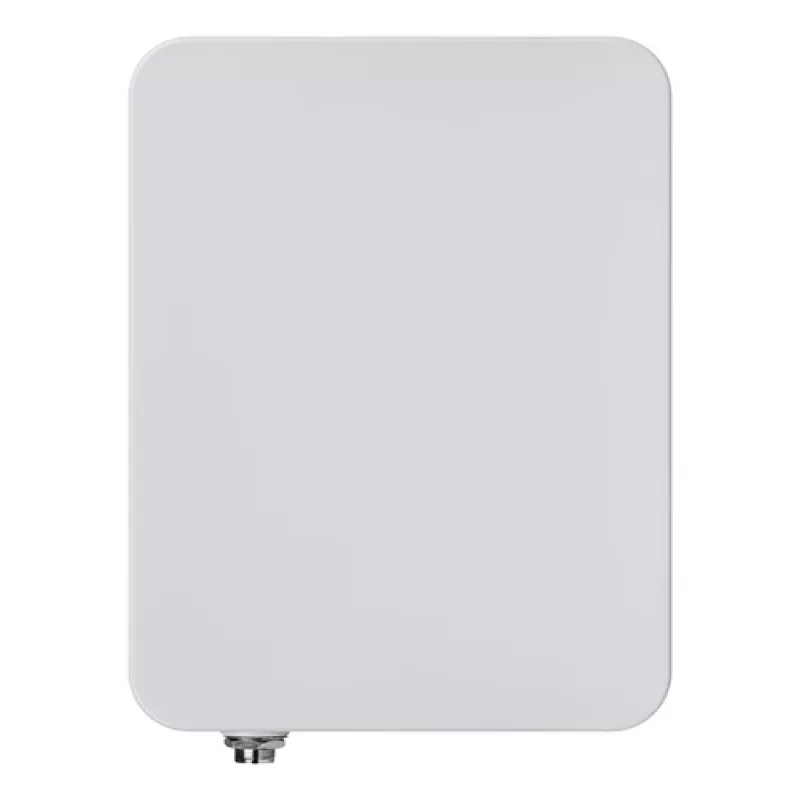

The Lancom Systems AirLancer O-360Q-5G is an outdoor omni-directional antenna designed for 4G/LTE and 5G New Radio (NR) networks. It supports 4x4 MIMO to utilise available 5G performance and comes with a permanently attached 5 m cable and mounting hardware for installation on facades or masts. The compact white housing and SMA connection are intended for outdoor wireless communication where a 360° coverage pattern is required.

Advantages

The antenna provides omni-directional 360° coverage and 4x4 MIMO capability to improve throughput and reliability in mobile networks. A permanently connected 5 m cable and included mounting material simplify installation. Its wide frequency support for 5G and 4G/LTE ensures compatibility with modern cellular routers and delivers low-latency, high-bandwidth links for demanding applications.

Suitable for

• Outdoor 5G and 4G/LTE signal reception and distribution
• Connection to LANCOM 5G routers and other cellular gateways
• Sites requiring 360° coverage such as roofs, masts, and building facades

Key specifications

• Model: AirLancer O-360Q-5G (Lancom Systems)
• Frequency band: 5000 MHz (5 GHz range for 5G/4G use as specified)
• Antenna gain (max): 1.7 dBi
• MIMO: 4x4 MIMO capability
• Connector/cable: Permanently attached 5 m cable with SMA connector
• Colour: White
• Dimensions: approx. 183.7 mm × 233.7 mm
• Maximum power handling: 20 W
• EAN: 4044144612343

How to use

Mount the antenna on a suitable outdoor location such as a roof edge, mast or building facade using the supplied mounting hardware. Connect the permanently attached 5 m cable to the cellular router or gateway SMA port, ensuring secure mechanical and electrical connection. Position the antenna to provide clear line-of-sight where possible and avoid placing it adjacent to large metal objects that could affect the omni-directional pattern. Follow the router manufacturer’s instructions for antenna configuration and grounding requirements.

Recommendations

For optimal 5G performance, install the antenna at an elevated position with minimal obstructions; use weatherproofing at the cable entry point and verify antenna compatibility with your LANCOM 5G router model before installation.
