Antena omnidirecional Poynting A-PANL-0401-V1-01 7.8 dBi preto

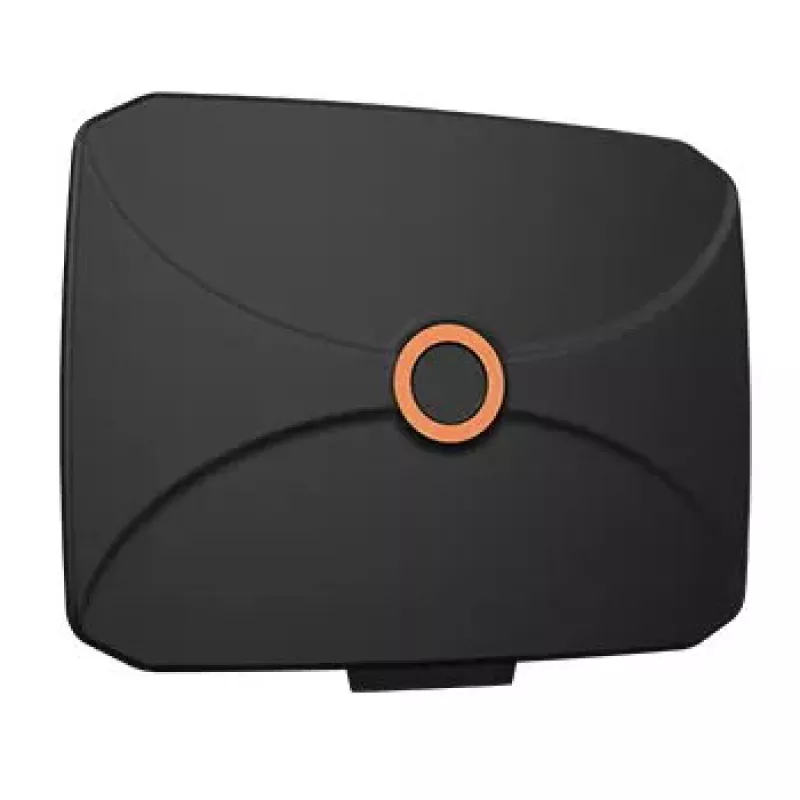

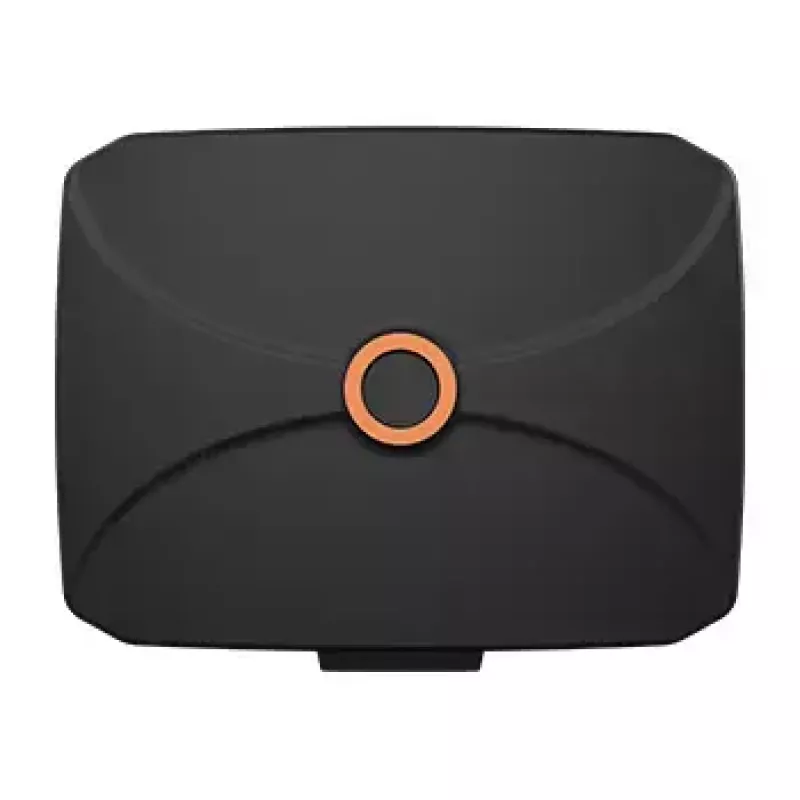

The Poynting A-PANL-0401-V1-01 (PANL-401) is an omni-directional, multi-function panel antenna combining four cellular elements and one dual-band active GNSS element in a low-profile, weatherproof enclosure. It covers ultra-wideband frequencies from 410 to 6000 MHz, delivers up to 7.8 dBi gain, and is suitable for vehicle or fixed installations where improved cellular and GNSS reception is required.

Advantages

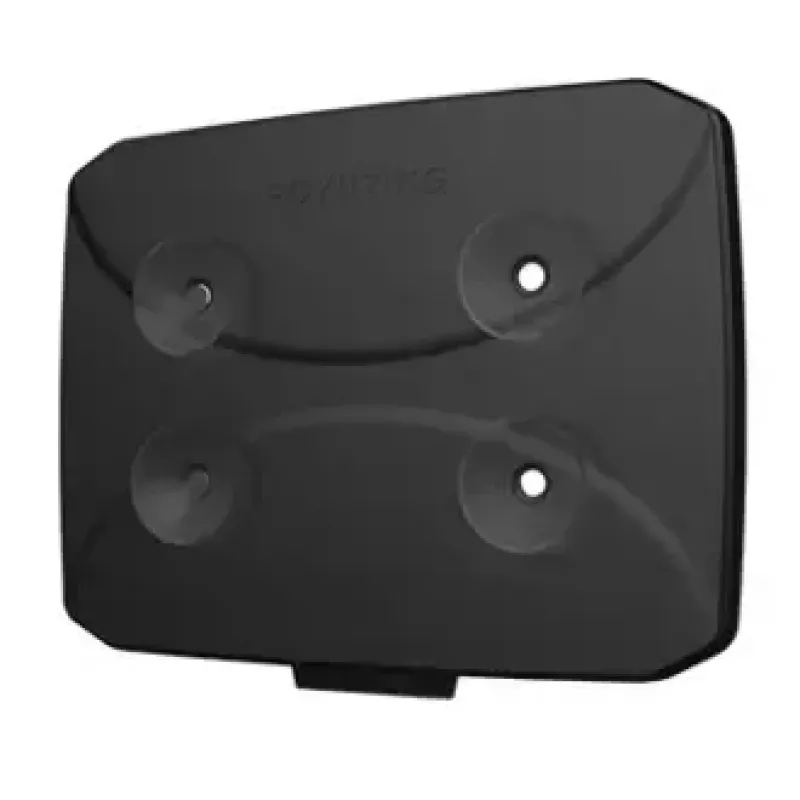

The PANL-401 provides wide frequency coverage (410–6000 MHz) for compatibility with multiple cellular technologies and operators, together with a dedicated dual-band active GNSS antenna for reliable positioning. Its omni-directional radiation pattern and pattern diversity offer balanced elevation coverage for transport and mobile use. The antenna is dustproof and weatherproof, has a compact low-profile design in black, and supports convenient window-mount installation using suction cups or adhesive mounts.

Suitable for

• Fleet vehicles and public transport requiring stable cellular connectivity and GNSS tracking
• Fixed installations on buildings where discreet, low-profile antenna mounting is needed
• IoT and M2M gateways that need wideband cellular coverage and GNSS timing/location

Key specifications

• Frequency range: 410–6000 MHz
• Antenna type: Omni-directional panel, 4 × cellular + 1 × dual-band active GNSS
• Maximum gain: 7.8 dBi
• Colour: Black

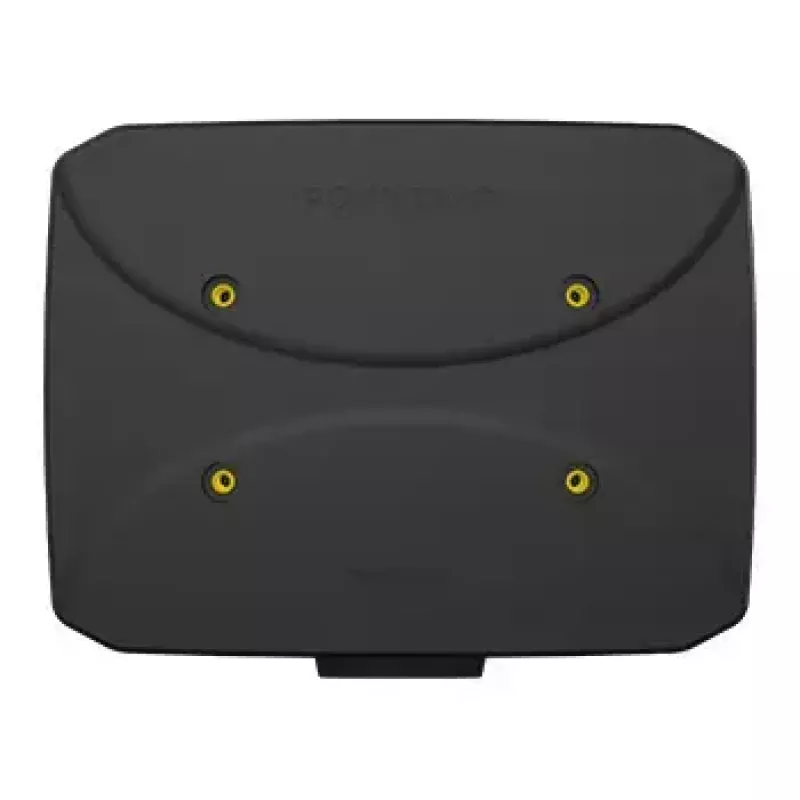

• Mounting: Window mount (suction cup or adhesive) for vehicles and buildings
• Environmental: Dustproof and weatherproof enclosure
• Manufacturer model: A-PANL-0401-V1-01 (PANL-401)

How to use

Position the antenna on a suitable vehicle window or building glazing to maximize sky and cellular signal exposure while maintaining a low-profile appearance. Attach the antenna using the supplied suction cups or an appropriate adhesive mount following the vehicle manufacturer’s and adhesive instructions. Route and connect the antenna cables to the modem, router or GNSS receiver ensuring secure, weather-protected cable entry points. Verify system operation and adjust placement if necessary to optimize cellular and GNSS reception.

Recommendations

For best performance, mount the antenna on a clear window area with minimal metallic obstructions and ensure the GNSS element has a clear view of the sky. Use correct cable types and maintain waterproof cable routing for outdoor-exposed connections. Confirm compatibility of frequency bands with local operators and the connected equipment.
