Antena omnidirecional QuWireless QuSpot

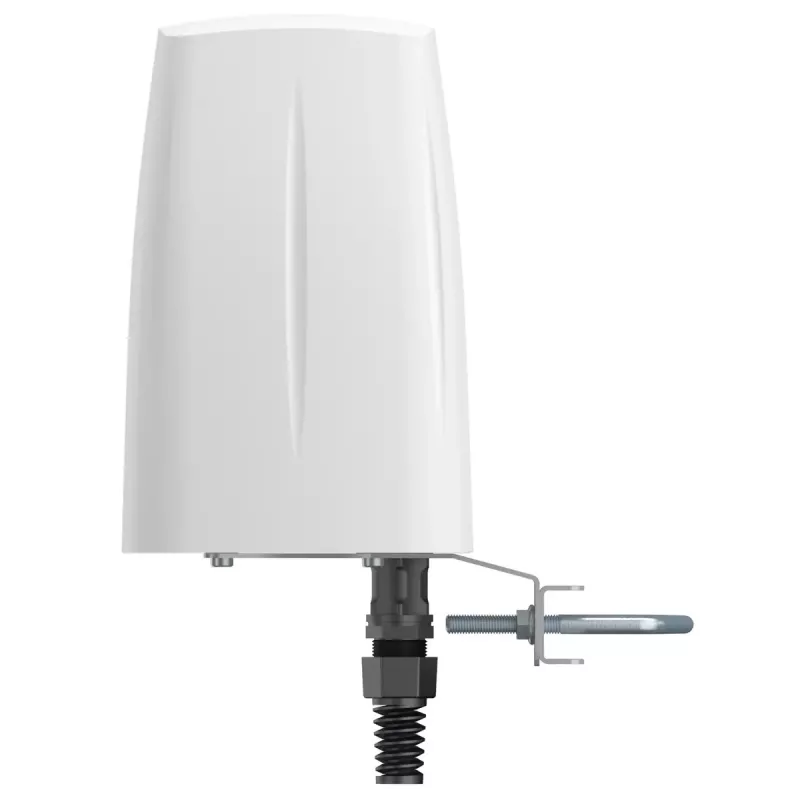

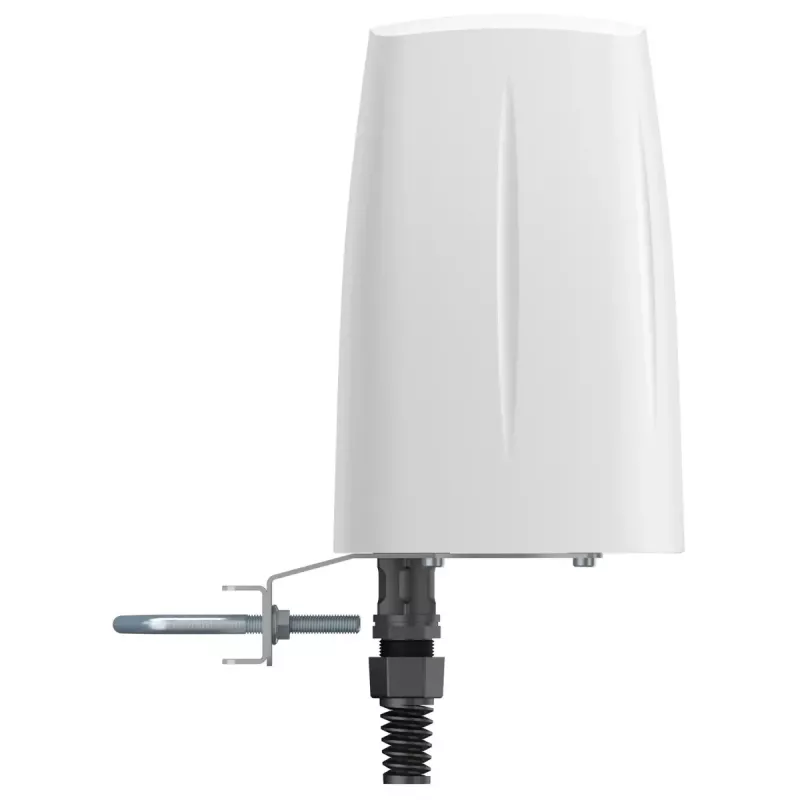

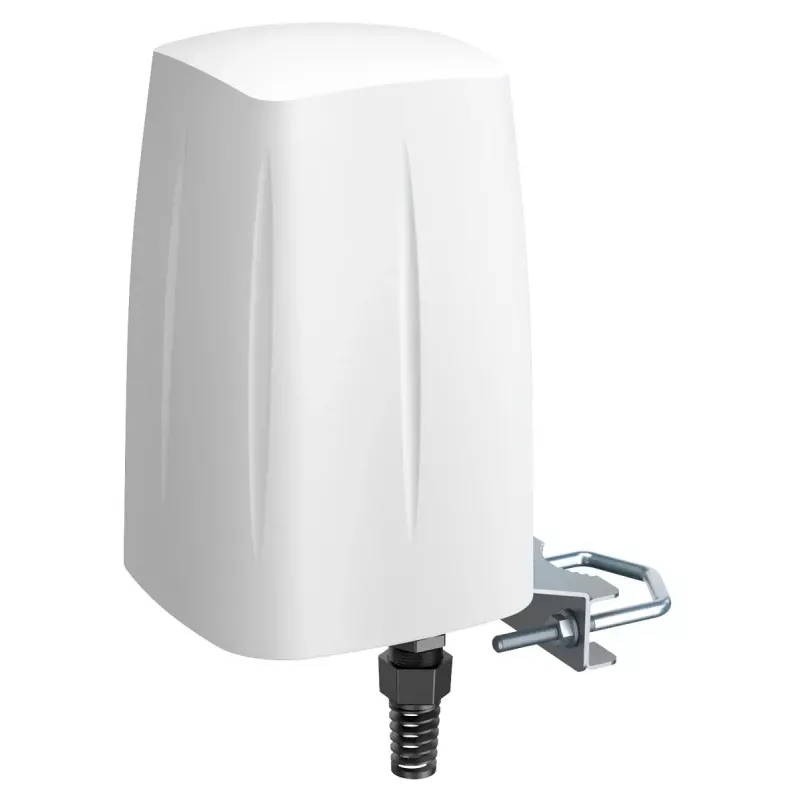

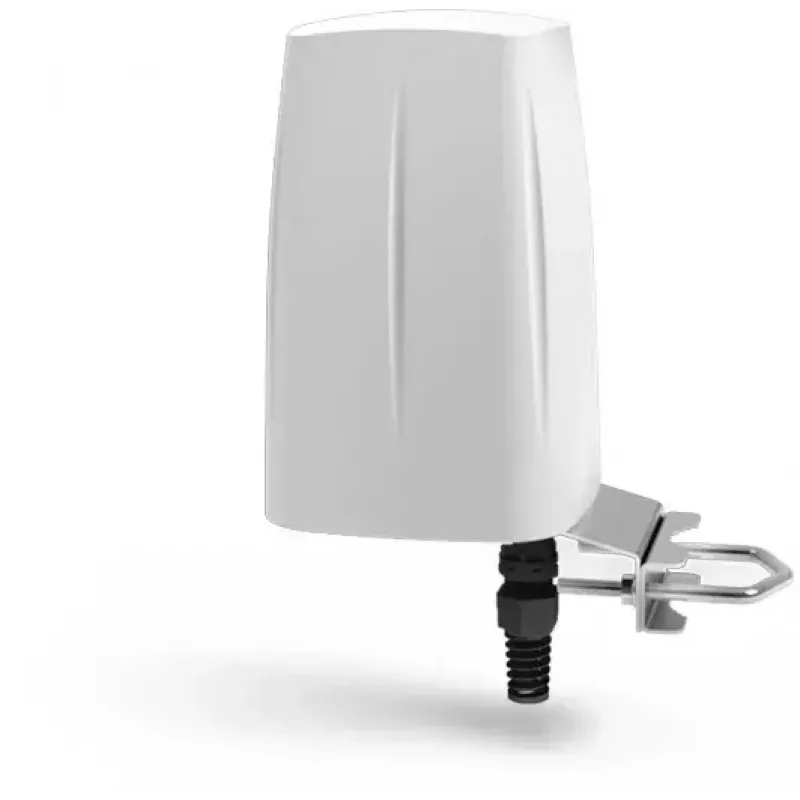

QuWireless QuSpot omni-directional outdoor antenna is an all-in-one enclosure combining multi-band LTE antennas, an embedded GPS antenna and a dedicated mounting space for the Teltonika RUTX09 router. The unit supports frequency ranges covering 0.694–0.96 GHz, 1.7–2.2 GHz and 2.2–2.7 GHz with an omni radiation pattern and vertical polarization, providing a compact external solution for mobile and fixed installations.

Advantages

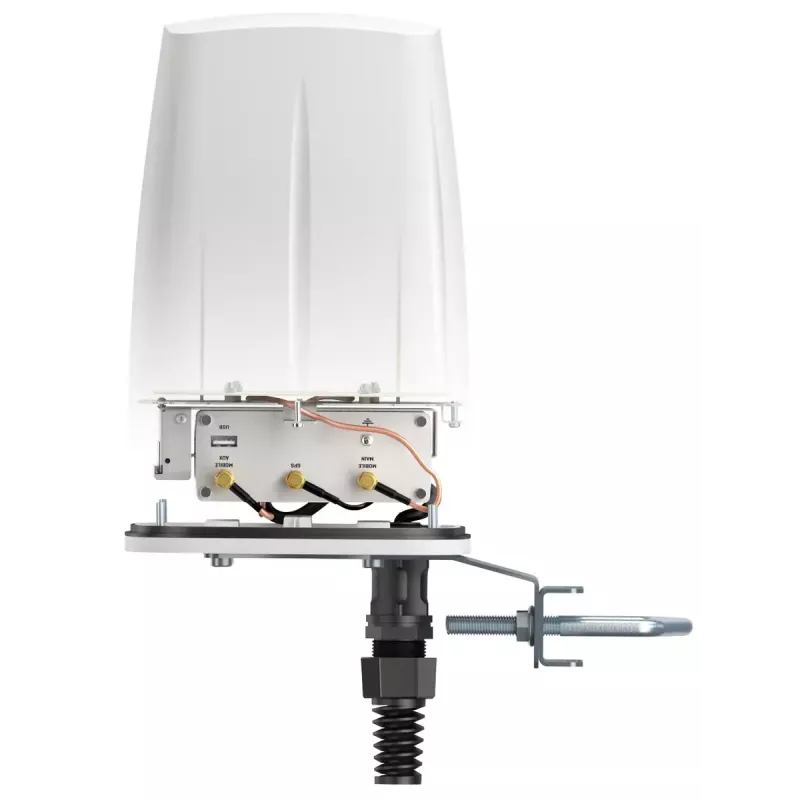

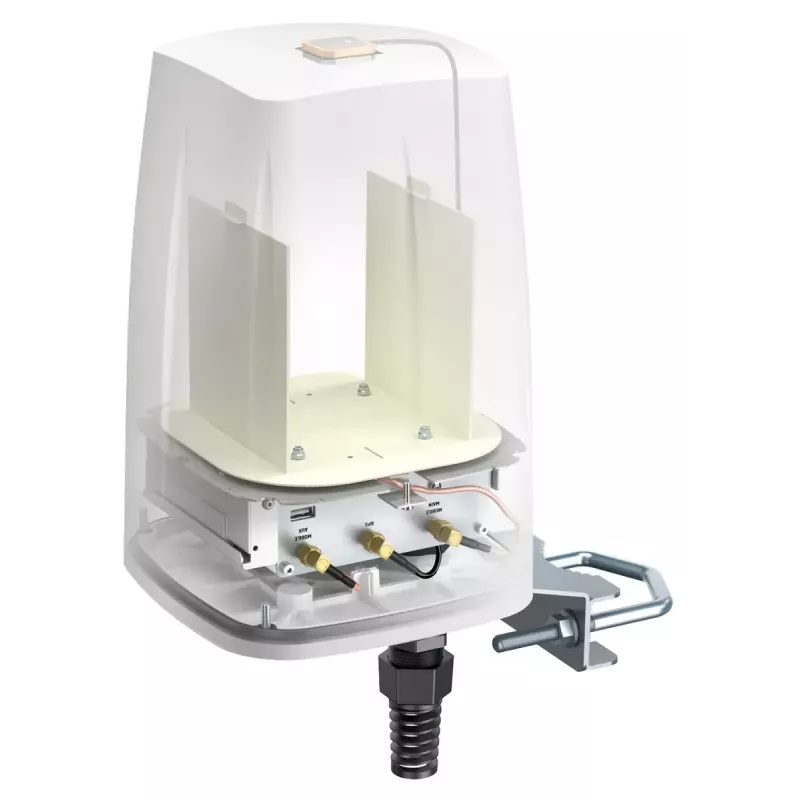

The QuSpot integrates multi-band LTE antennas and a GPS antenna in a single weather-resistant housing and includes a space to install the Teltonika RUTX09 router, reducing cable runs and simplifying deployment. With a peak gain of 4 dBi and PoE/LAN connector compatibility it offers reliable external signal reception while remaining compact (160 × 160 × 240 mm) and lightweight (1.5 kg).

Suitable for

• Industrial sites and machine-to-machine connectivity
• CCTV systems and remote surveillance
• Public hotspots and temporary network points
• Marine installations: yachts and boats
• Recreational vehicles: campers and RVs

Key specifications

• Frequency band: 0.694–0.96 / 1.7–2.2 / 2.2–2.7 GHz
• Antenna gain (max): 4 dBi
• Polarization: vertical
• Connector type: PoE/LAN compatible
• Dimensions: 160 × 160 × 240 mm
• Weight: 1.5 kg
• Colour: white
• Compatible router: space for Teltonika RUTX09 (installation required)

How to use

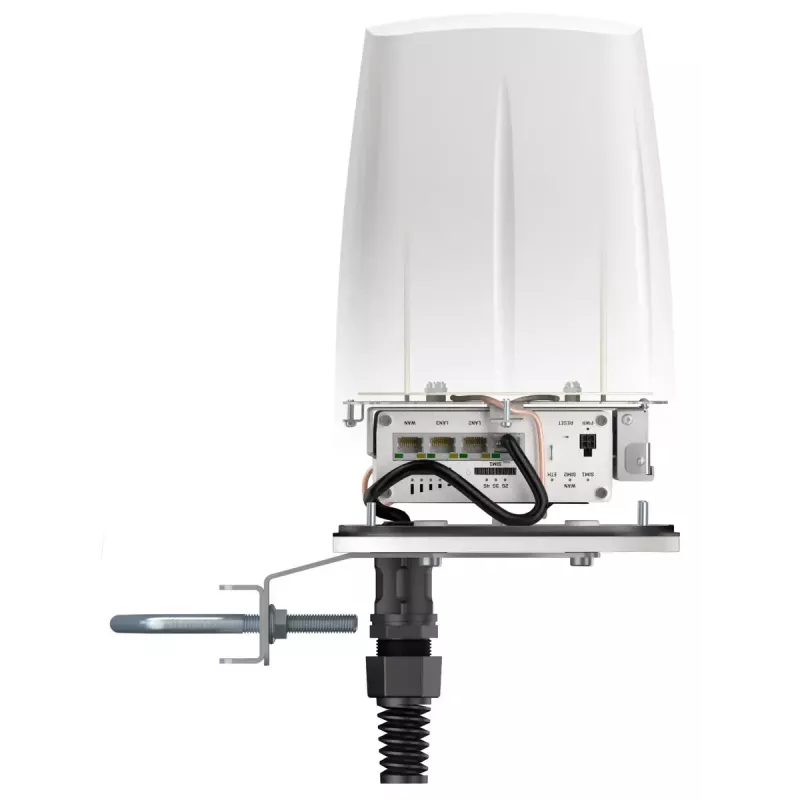

Mount the QuSpot antenna outdoors in a location with clear exposure to the sky for best GPS and cellular reception. Install the Teltonika RUTX09 into the provided compartment according to the router manufacturer instructions, connect power and network using the PoE/LAN interface, and secure all cable entries to maintain weather protection. After powering the router, verify cellular and GPS signals and adjust placement if necessary for optimal reception.

Recommendations

For stable long-term operation, mount the antenna at a moderate height away from large metallic obstructions and sources of radio interference. Use quality shielded cables for any external runs and follow Teltonika’s installation guidance when fitting the RUTX09 inside the enclosure.
