Antena parabólica Televes S760CL-G

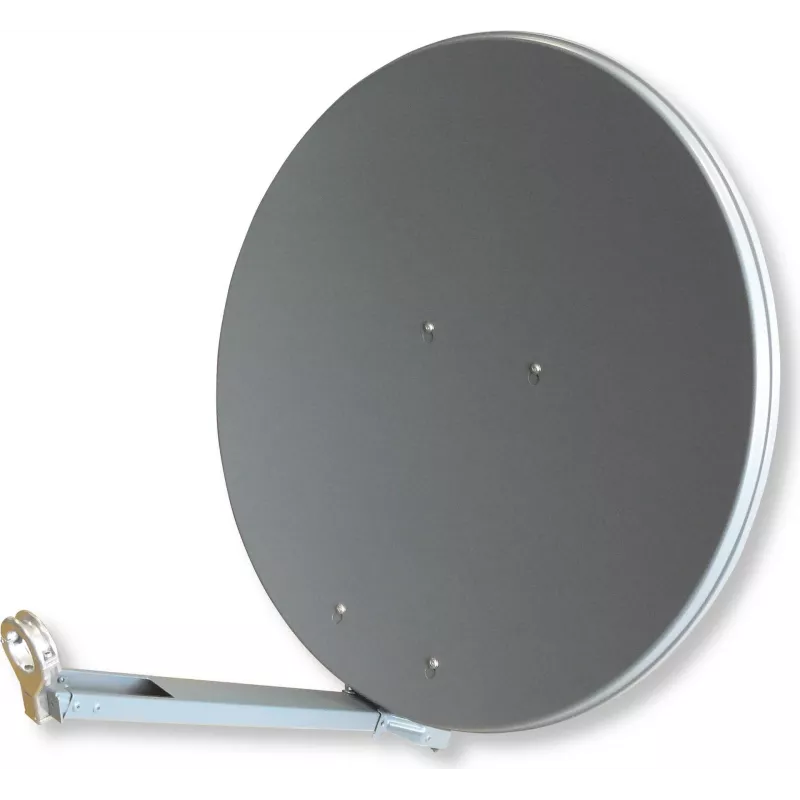

The Televes S760CL-G satellite antenna is a fixed outdoor parabolic reflector designed for reception in the 10.75–12.75 GHz frequency band. With overall dimensions of 750 mm width and 800 mm height and a graphite finish, it combines a compact footprint with structural rigidity. The antenna provides a maximum gain of 38.2 dBi and a noise figure of 26 dB, delivering focused reception for satellite signals while maintaining stable performance in typical residential and light-commercial installations.

Advantages

The antenna’s parabolic design and specified gain of 38.2 dBi allow for improved signal capture and selective reception of satellite transponders in the specified Ku-band range. A noise figure of 26 dB indicates the antenna’s contribution to system noise, enabling predictable link budgeting when combined with appropriate LNBs and cabling. The graphite finish offers weather-resistant aesthetics and the 7.05 kg weight reflects a balance between robustness and manageable handling during installation.

Suitable for

• Residential satellite TV reception in Ku-band (10.75–12.75 GHz)
• Small apartment buildings or light-commercial sites requiring focused satellite signal reception
• Upgrades or replacements of existing dishes with similar dimensions and mounting arrangements

Key specifications

• Operating frequency range: 10.75–12.75 GHz
• Maximum gain: 38.2 dBi
• Noise figure: 26 dB
• Dimensions (W × H): 750 mm × 800 mm
• Color/finish: Graphite
• Weight: 7.05 kg

How to use

Mount the Televes S760CL-G on a suitable pole or wall bracket that supports the dish’s weight and wind load, following local mounting and safety regulations. Orient the dish toward the desired satellite using a satellite finder or alignment app, and secure the feedhorn/LNB assembly at the focal point specified by the dish geometry. Use low-loss coaxial cable and proper connectors to link the LNB output to the receiver, and verify signal strength and quality at the receiver to fine-tune azimuth and elevation adjustments. Ensure all mechanical fasteners are tightened and sealed to prevent moisture ingress.

Recommendations

For best performance, pair the dish with a compatible Ku-band LNB of suitable noise temperature and gain, and use high-quality, weather-resistant coaxial cable and connectors. Check local regulations for antenna placement and grounding requirements to ensure safe and compliant installation.
