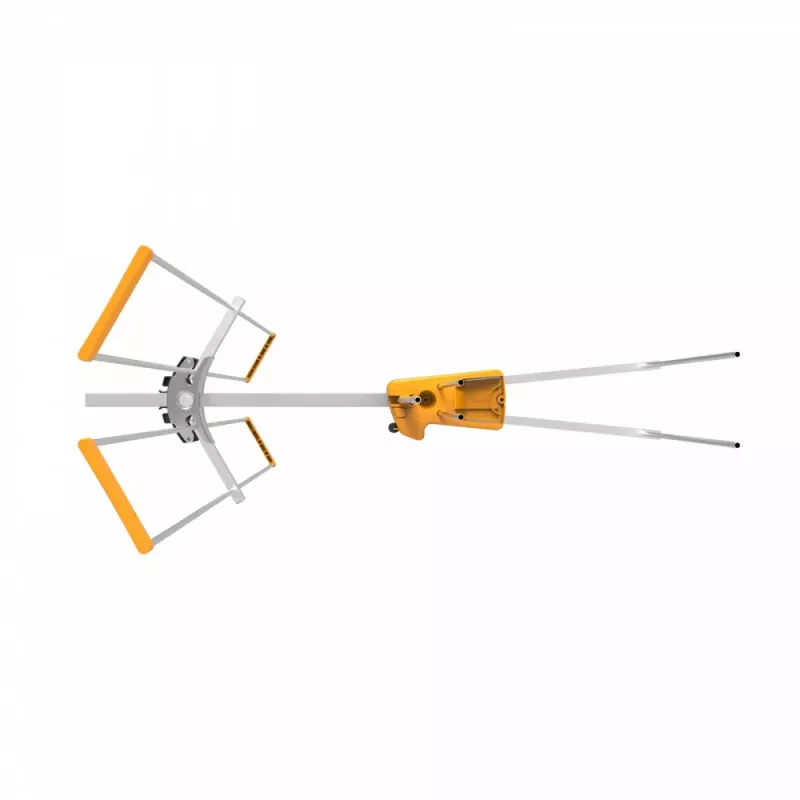

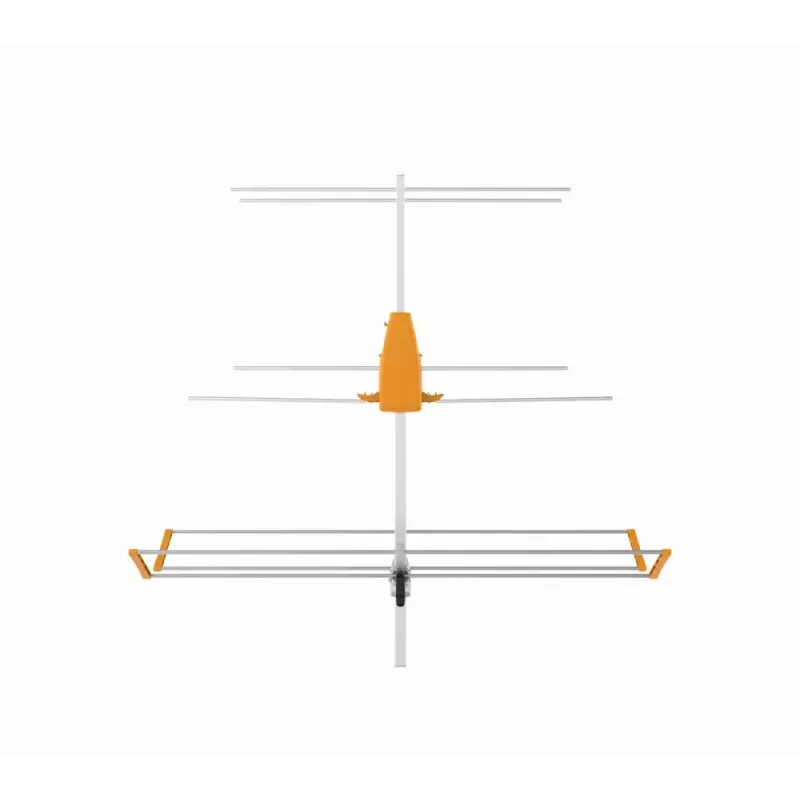

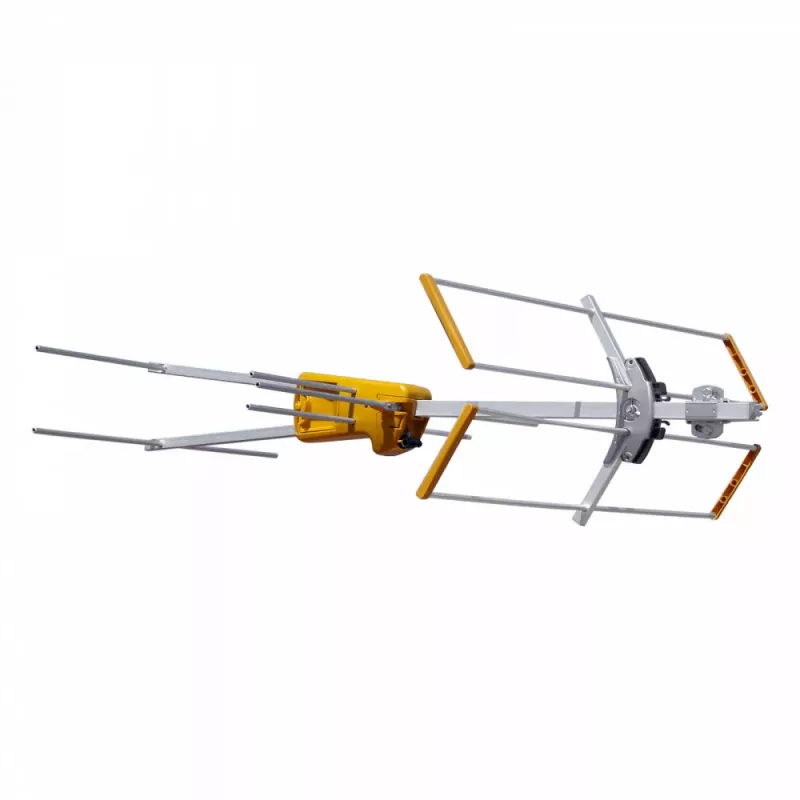

Antena VHF TELEVES Yagi V BIII, 5 elementos, 174-230 MHz, 7,5 dBi, ficha F, exterior, Preto

The TELEVES Yagi V BIII is a high-performance VHF antenna designed for reliable reception of terrestrial digital TV (DVB-T/DVB-T2) in Band III (174-230 MHz). With a 5-element Yagi design, it delivers a gain of 7.5 dBi and excellent front-to-back ratio, ensuring clear signal reception even in challenging environments. Built with durable aluminum and weather-resistant plastic, this antenna is suitable for outdoor installation and can be mounted on masts up to 50 mm in diameter.

Advantages

Optimized for VHF Band III, the Yagi V BIII offers superior directivity and low VSWR (<1.5), minimizing signal loss. Its adjustable polarization (horizontal/vertical) provides flexibility for different broadcast configurations. The robust construction withstands wind loads up to 55 N at 150 km/h, ensuring long-term reliability.

Suitable for

• Terrestrial digital TV reception (DVB-T/DVB-T2)
• VHF Band III (174-230 MHz) broadcasting
• Outdoor installations in residential or commercial settings

Key specifications

• Antenna Type: Yagi
• Band: VHF Band III
• Frequency Range: 174 - 230 MHz
• Number of Elements: 5
• Gain: 7.5 dBi
• Front-to-Back Ratio: >15 dB
• Impedance: 75 Ohm
• Connector Type: F-type
• Polarization: Horizontal / Vertical (Adjustable)
• Material: Aluminum, Weather-resistant Plastic
• Mounting Type: Mast Clamp (up to 50mm diameter)
• Wind Load (130 km/h): 40 N
• Wind Load (150 km/h): 55 N
• VSWR: < 1.5
• Application: Terrestrial Digital TV (DTT) Reception
• Compatibility: DVB-T, DVB-T2

Recommendations

For optimal performance, use with a 75-ohm coaxial cable and ensure proper mast grounding. The antenna is designed for outdoor use; avoid indoor installation as it may reduce signal quality.
