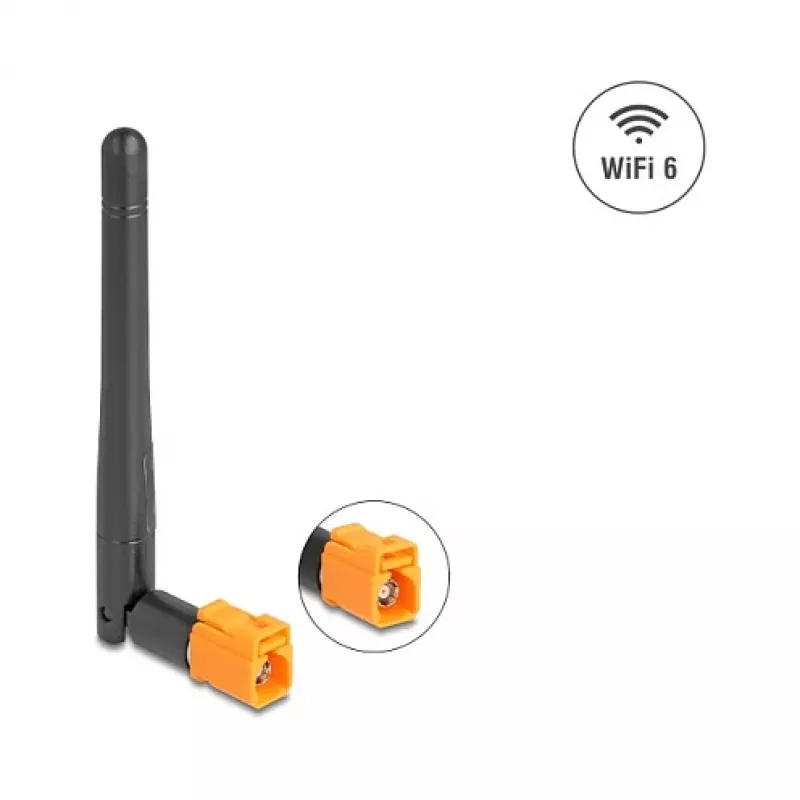

Antena WiFi 6 omnidirecional DELOCK FAKRA M 2,4/5 GHz 2,5–3,0 dBi articulação inclinável preta

DELOCK omnidirectional WiFi 6 antenna with FAKRA M connector is designed for external dual‑band use on routers, access points and vehicle installations that require a compact, adjustable antenna. It covers the 2.4–2.5 GHz and 5.15–5.875 GHz bands used by WiFi 6, provides linear vertical polarization and a characteristic impedance of 50 Ω. The antenna combines a metal and plastic construction with a tilt joint for angle adjustment and a slim profile (length 115.4 mm, diameter 9.6 mm), enabling installation in confined spaces.

Advantages

The omnidirectional radiation pattern offers broad horizontal coverage for client devices without the need for precise aiming. Maximum gain up to 3.0 dBi supports stable signal levels for both 2.4 GHz and 5 GHz networks while maintaining a small form factor. The FAKRA M connector provides a secure connection suitable for vehicle and industrial environments, and the tilt joint allows users to set the optimal antenna angle for improved reception and reduced reflections. The antenna's 50 Ω impedance and linear vertical polarization ensure compatibility with typical WiFi 6 equipment.

Suitable for

• External router and access point antenna upgrades
• Vehicle installations requiring a compact, angled external antenna
• Indoor locations with limited space where a slim antenna is needed
• Dual‑band WiFi 6 deployments on 2.4 GHz and 5 GHz bands

Key specifications

• Frequency range: 2.4–2.5 GHz and 5.15–5.875 GHz
• Maximum gain: up to 2.5–3.0 dBi (depending on band)
• Polarization: linear, vertical
• Impedance: 50 Ω
• Connector type: FAKRA M (female socket)
• Material: metal and plastic
• Adjustment: tilt joint for angular positioning
• Physical dimensions: length 115.4 mm, diameter 9.6 mm

How to use

Mount the antenna on the external connector of the router, access point or vehicle antenna cable that accepts a FAKRA M socket. Adjust the tilt joint to set the antenna angle that provides the best coverage for the required area. Ensure the mating connector and cable assembly are rated for the intended environment and are tightened to avoid intermittent contact. Use the antenna with WiFi 6 equipment configured for the 2.4 GHz and 5 GHz bands; no additional configuration is required on the antenna itself.

Recommendations

Place the antenna vertically for typical omnidirectional coverage; if the installation is in a vehicle or near reflective surfaces, experiment with small angle adjustments via the tilt joint to reduce multipath interference. Verify cable routing and connector integrity to maintain 50 Ω matching and minimize signal loss.
