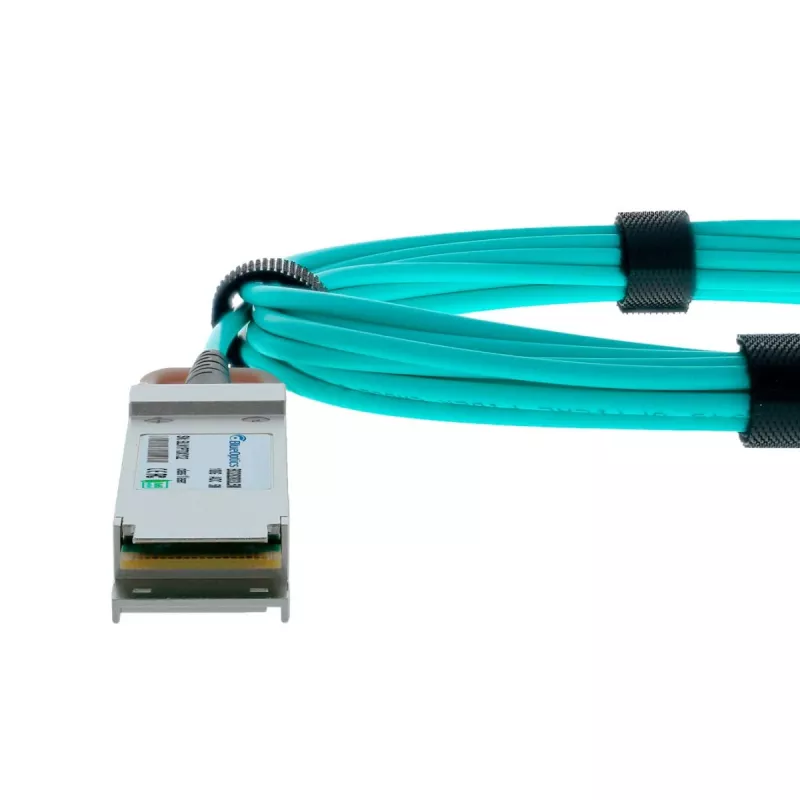

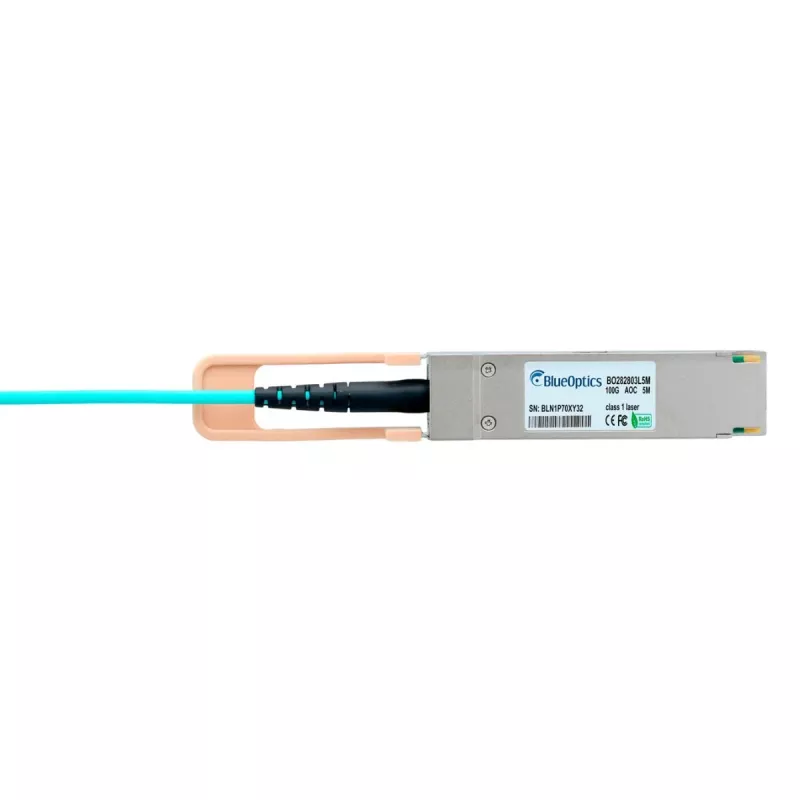

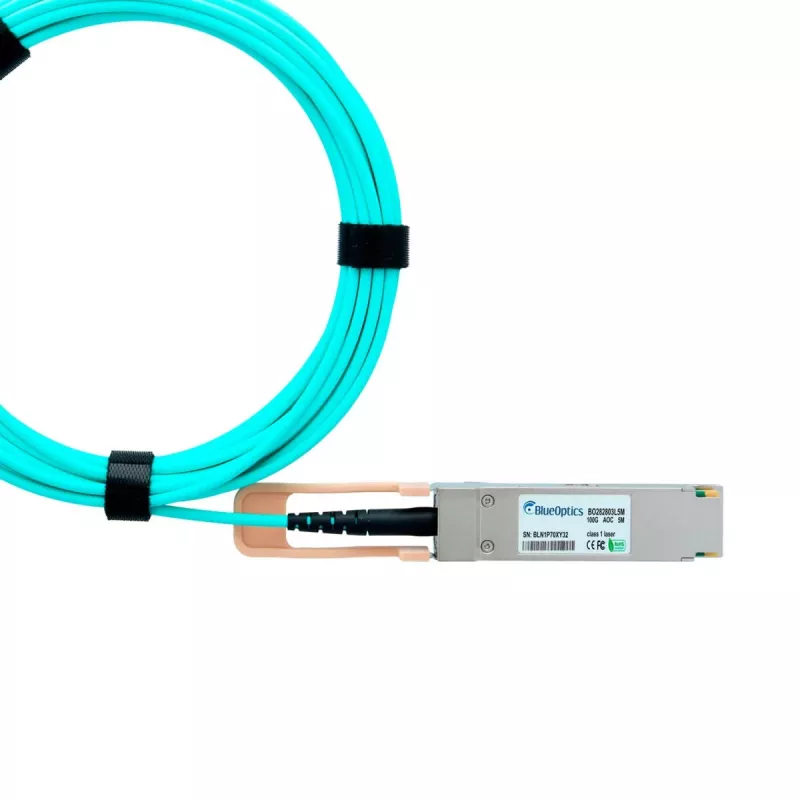

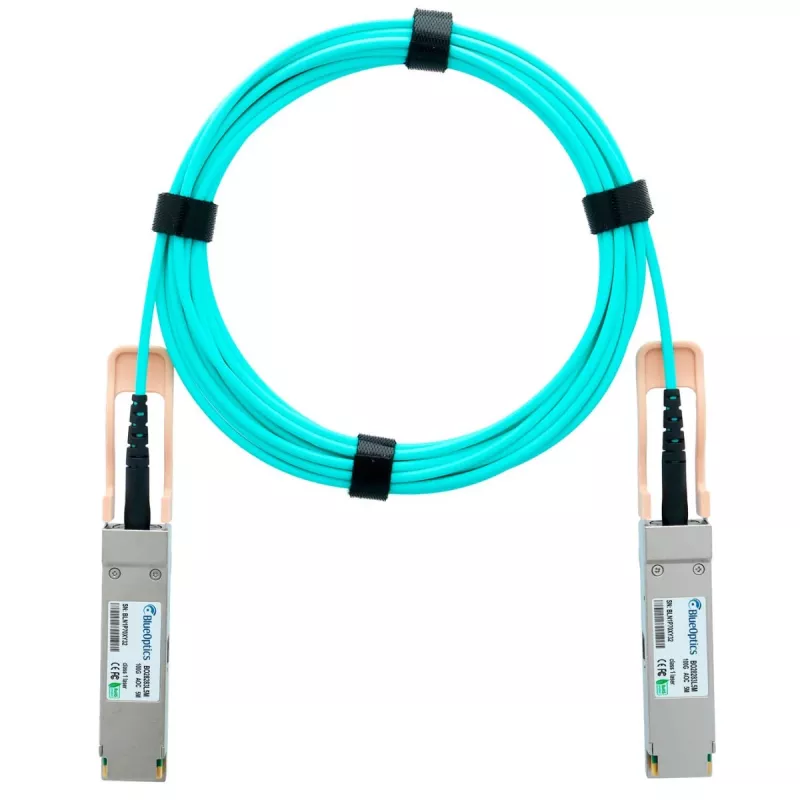

AOC QSFP28 BlueOptics BO282803L20M 20m cabo ótico ativo compatível com Ruckus 100G-QSFP-QSFP-AOC-2001

The BlueOptics BO282803L20M is a high-performance Active Optical Cable (AOC) designed for 100 Gigabit Ethernet connectivity. It is fully compatible with Ruckus 100G-QSFP-QSFP-AOC-2001 systems, providing a reliable and cost-effective solution for data center and enterprise networking. With a length of 20 meters, this QSFP28 to QSFP28 cable supports 100GBASE-SR4 equivalent data rates over multi-mode fiber, ensuring low power consumption and high signal integrity.

Advantages

This AOC offers significant advantages over traditional copper cabling, including longer reach, lighter weight, and immunity to electromagnetic interference. It is hot-pluggable and MSA compliant, ensuring seamless integration with existing infrastructure. The cable features LSZH (Low Smoke Zero Halogen) jacket for safety in enclosed spaces, and supports Digital Diagnostics Monitoring (DDM) for real-time performance tracking.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking and server rooms
• Ruckus 100G-QSFP-QSFP-AOC-2001 compatible equipment

Key specifications

• Product Type: Active Optical Cable (AOC)
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gigabit Ethernet (4x 25Gbps)
• Cable Length: 20 meters
• Fiber Type: Multi-mode fiber (MMF)
• Wavelength: 850 nm
• Power Consumption: < 2.5W per end
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Supply Voltage: 3.3V
• Hot-Pluggable: Yes
• MSA Compliant: Yes
• Digital Diagnostics Monitoring (DDM): Yes
• RoHS Compliant: Yes
• Jacket Material: LSZH
• Protocol Support: Ethernet, InfiniBand EDR

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP28 ports. This cable is ideal for short-reach, high-bandwidth applications within racks or between adjacent racks. Always handle the cable with care to avoid damaging the optical connectors.
