APC Easy Rack PDU, medido, 0U, 3 fases, 11 kW, 230 V, 16 A, 21 saídas C13 e 3 saídas C19, entrada IEC60309 3P+N+PE

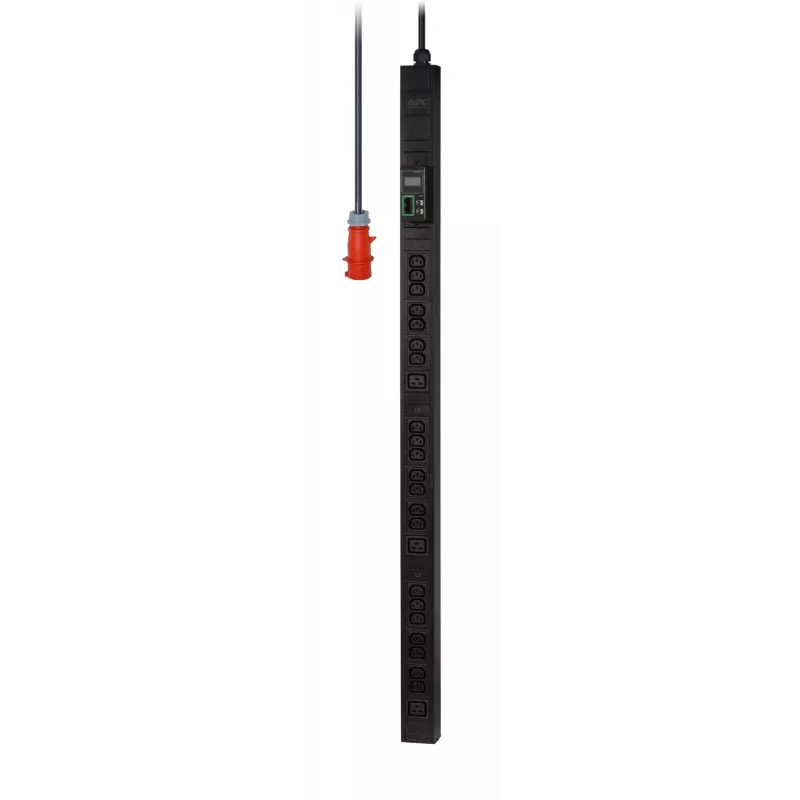

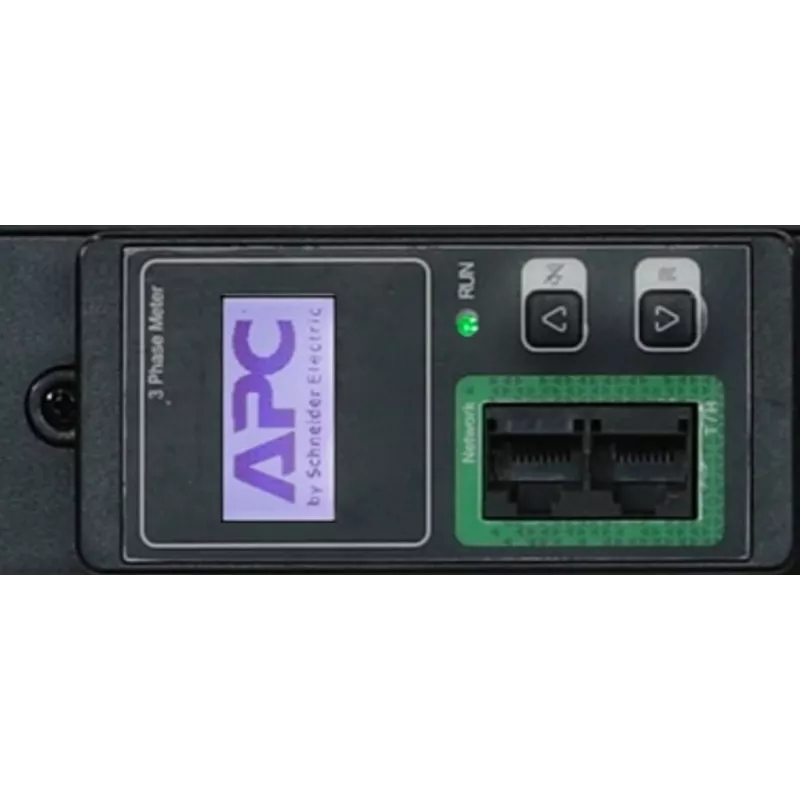

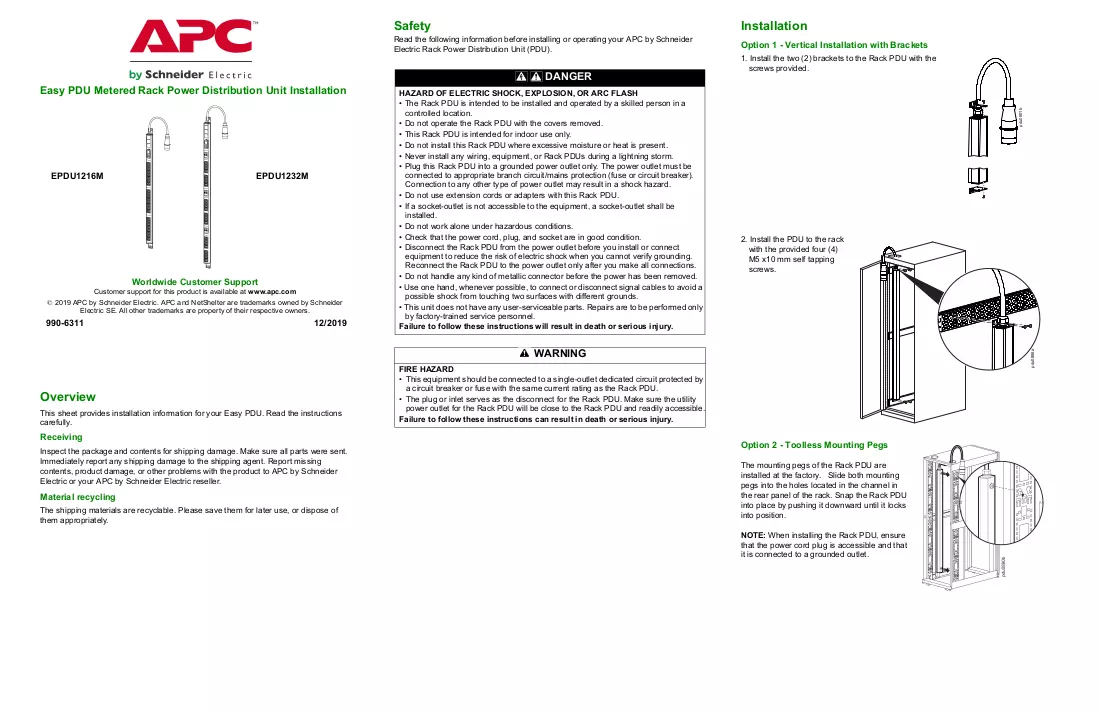

APC Easy Rack PDU EPDU1216M is a metered 0U three-phase power distribution unit designed for rack environments. It provides remote real-time monitoring of current, power and voltage and offers 21 IEC C13 and 3 IEC C19 outlets with an IEC 309 16A 3P+N+E inlet. The slim vertical form factor occupies zero U of rack space and is equipped with a multifunctional display for local readouts. The unit supports network management via Web, SNMP and CLI and operates in ambient temperatures from -5° to +45°C. Package contents include installation guide, user manual, toolless mounting kit and vertical mounting brackets. The product comes with a one-year standard warranty.

Advantages

The EPDU1216M combines compact vertical mounting with metered monitoring to allow efficient power distribution without consuming valuable rack U space. Remote network access and a user-friendly web interface enable configuration and monitoring from remote locations. The device reports overload and warning conditions using user-defined alarm thresholds and supports firmware upgrades over the network to add features without physical replacement.

Suitable for

• Rack-mounted servers and network equipment in data centers
• Telecom cabinets and network closets
• Enclosures where zero U vertical mounting is required
• Environments needing remote power monitoring and basic metering

Key specifications

• Model: EPDU1216M
• Type: Metered PDU, 0U vertical mount
• Input: IEC 309 16A 3P+N+E
• Outlets: 21 × IEC C13, 3 × IEC C19
• Nominal input voltage: 400 V
• Maximum current: 16 A
• Power capacity: 11 kW at 230 V (three-phase system)
• Dimensions (W×D×H): 62 × 44 × 1506 mm
• Weight: 3.008 kg
• Colour: Black
• Operating temperature: -5° to +45°C
• Warranty: 1 year

How to use

Install the EPDU1216M vertically in a compatible rack or enclosure using the supplied toolless mounting kit and vertical brackets. Connect the IEC 309 inlet to a suitable three-phase supply rated for 16 A and connect IT equipment to the IEC C13 and C19 outlets as required. Access the unit's web interface, SNMP or CLI over the network to configure monitoring parameters, define alarm thresholds and view real-time measurements of current, power and voltage. Use the local multifunctional display for quick on-site readings.

Recommendations

Define alarm thresholds before placing critical loads on the PDU to receive timely network and visual alerts for potential overloads; verify that the supply and connected loads do not exceed the 16 A rated input and follow standard rack installation safety practices.
