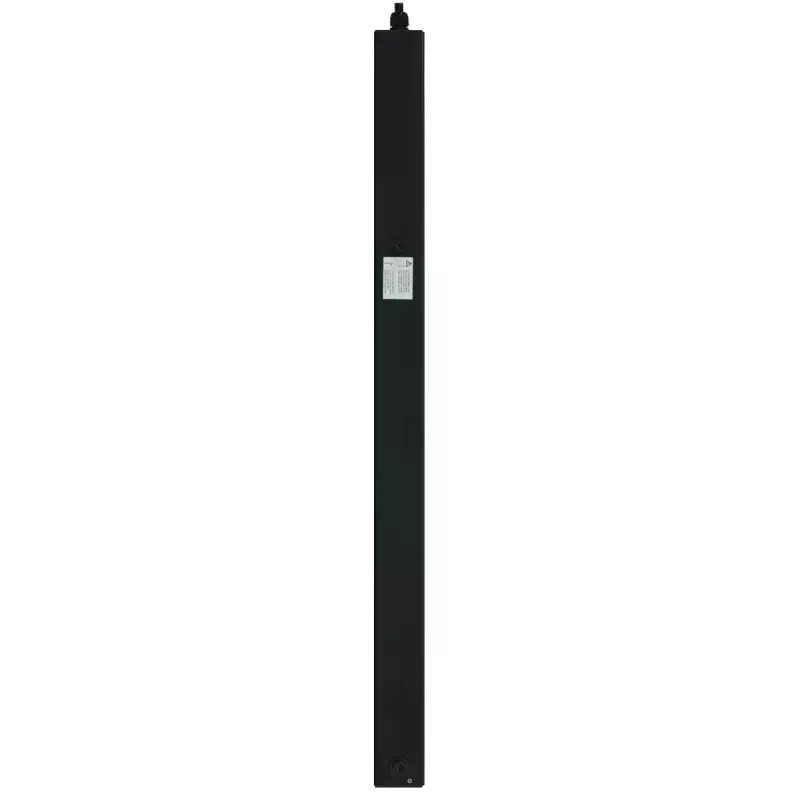

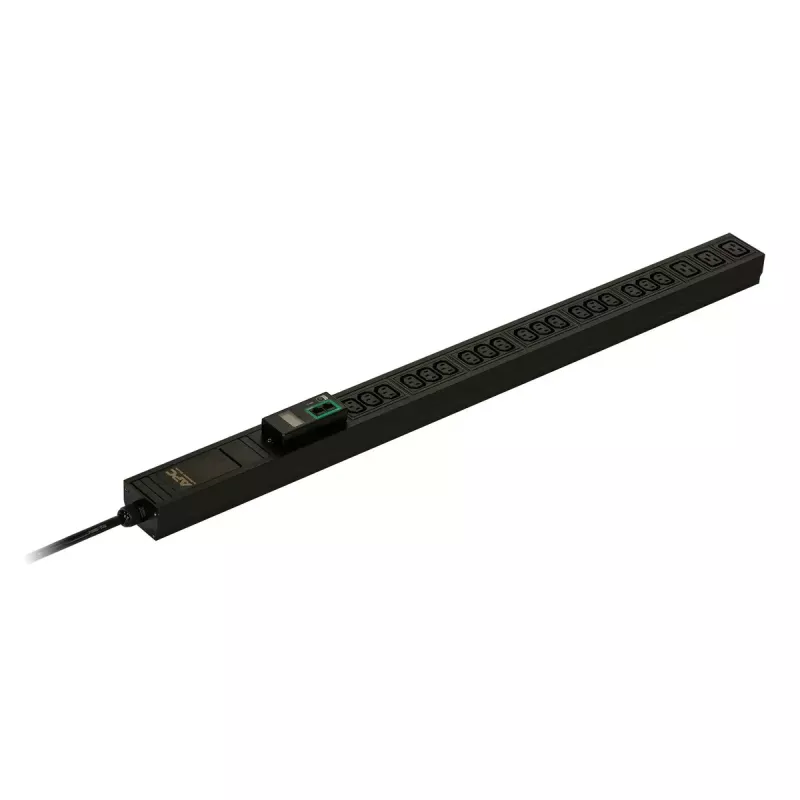

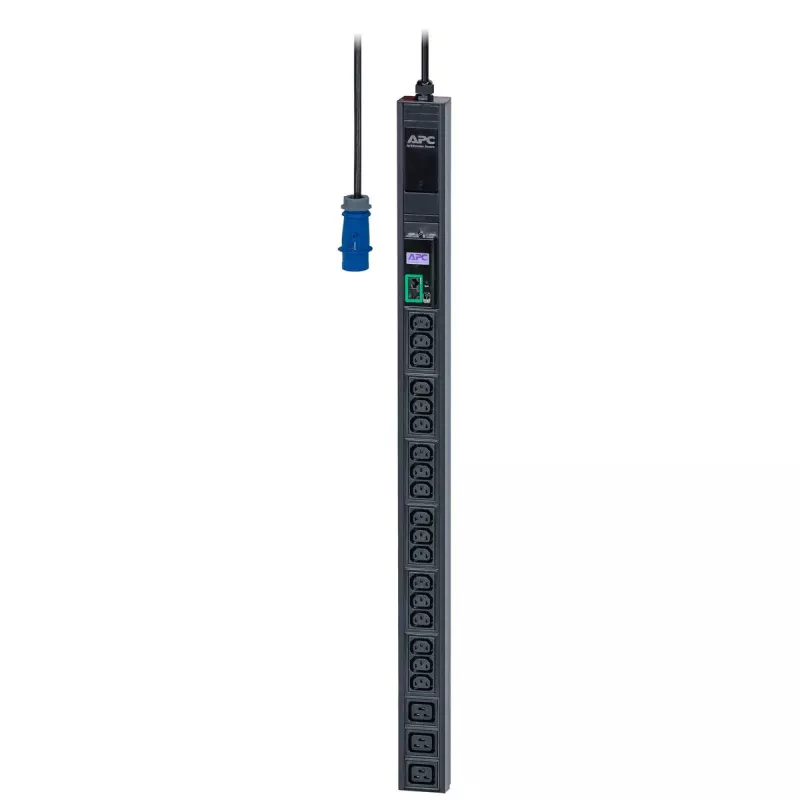

APC Easy Rack PDU, medido, 0HE, 1 fase, 3,7 kW, 230 V, 16 A, 18 saídas C13 e 3 saídas C19, entrada IEC60309 2P+E

APC Easy Metered Rack PDU EPDU1116M is a vertical, 0U metered power distribution unit for racks and enclosures. It provides real-time monitoring of current, power and voltage for connected loads and supports remote management via Web, SNMP and CLI. The unit has an IEC 60309 16A 2P+E inlet, eighteen IEC C13 and three IEC C19 outlets, a 3 m cable, and operates at nominal input voltages of 200/208/230 V with a maximum current of 16 A. The PDU is lightweight, includes vertical mounting brackets and documentation in the package, and is covered by a one-year standard warranty.

Advantages

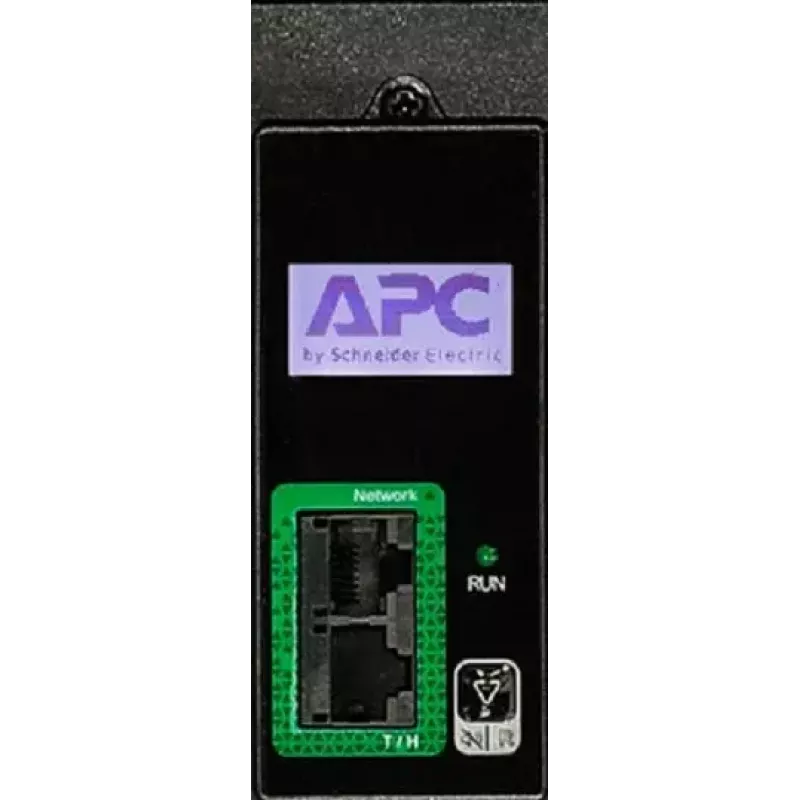

The EPDU1116M combines compact 0U vertical mounting with metered monitoring to save rack space while providing detailed power information. It supports standardized remote management protocols (Web, SNMP, CLI), user-definable alarm thresholds for overload and warning conditions, and network firmware upgrades to add features without hardware replacement. The smart multifunctional display offers local readings and the lightweight design simplifies installation in the rear of enclosures.

Suitable for

• Data centre and server racks where rack space conservation is required
• Network closets and telecom enclosures requiring per-PDU power monitoring
• Small and medium IT deployments that need remote power management and alerts

Key specifications

• Model: APC EPDU1116M
• PDU type: Metered
• Nominal input voltage: 200/208/230 V
• Maximum current: 16 A
• AC outlets: 18 × IEC C13, 3 × IEC C19 (total 21)
• Inlet: IEC 60309 16A 2P+E
• Cable length: 3 m
• Mounting: Vertical 0U rack mount (rear of enclosure)
• Weight: 2.5 kg
• Colour: Black
• Operating temperature: -5° to +45°C
• Warranty: 1 year (standard)

How to use

Mount the PDU vertically in the rear of the rack or enclosure using the supplied brackets so it occupies 0U of rack space. Connect the inlet to the appropriate power source using the IEC 60309 16A inlet. Attach equipment to the IEC C13 and C19 outlets as required. Use the local display for immediate readings of current, power and voltage, and configure remote access via the web interface, SNMP or CLI to monitor and manage the PDU from a remote location. Configure user-defined alarm thresholds to receive overload and warning notifications.

Recommendations

Install the EPDU1116M in a temperature-controlled environment within the specified -5° to +45°C operating range, ensure the inlet matches the facility supply and protection, and configure alarms and remote access before placing critical equipment on the PDU.
