Régua de tomadas Lanberg PDU-08E-0200-BK

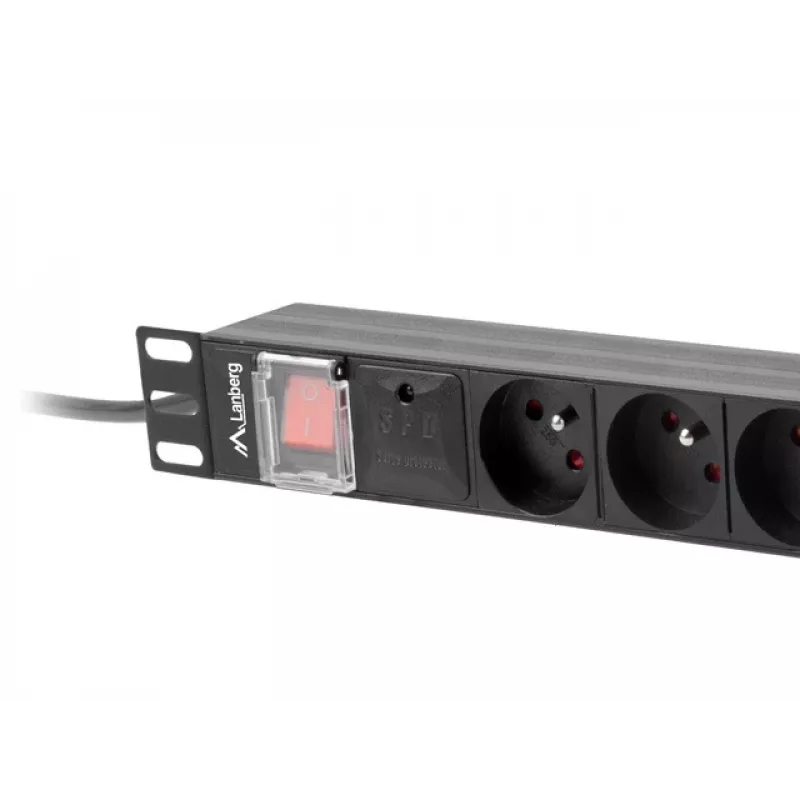

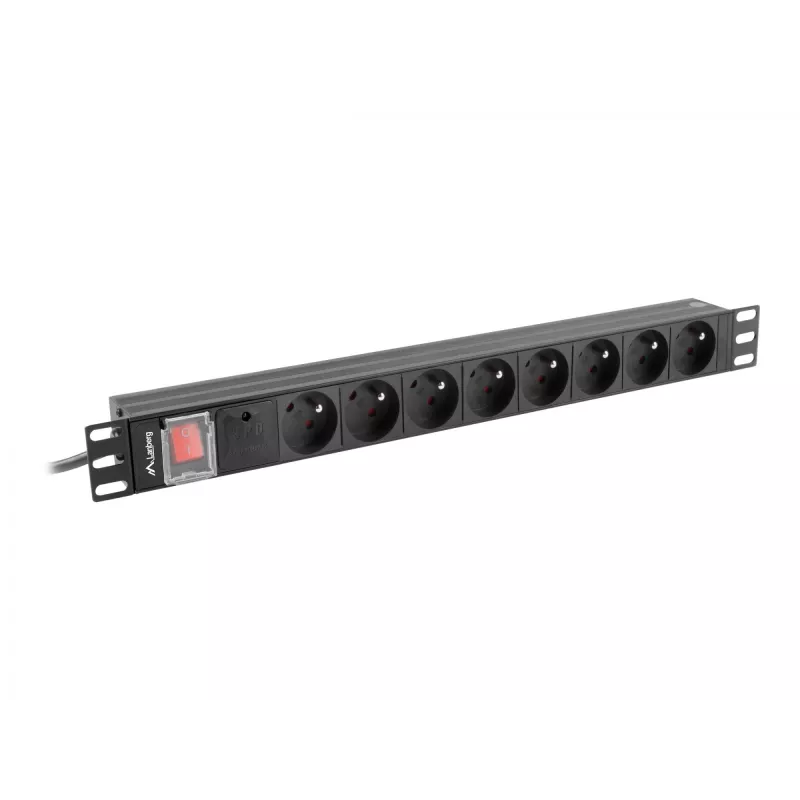

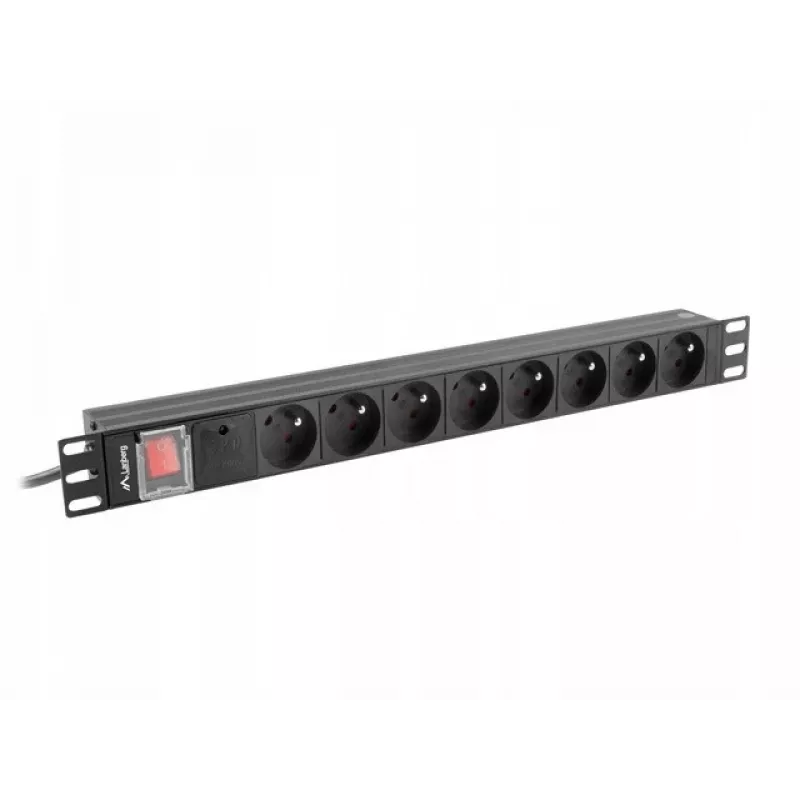

The Lanberg Power Distribution Unit PDU-08E-0200-BK is a 1U rack-mount surge protector designed for horizontal installation at the front of 19" server cabinets. It provides eight Type E AC outlets, supports a nominal input voltage of 220–250 V and a maximum current of 16 A, and operates at 50–60 Hz. The compact dimensions (482.7 mm width, 45 mm depth, 1U height) make it suitable for professional rack environments where reliable, continuous power distribution is required.

Advantages

This PDU includes overload protection, current circuit diaphragms for user safety and an automatic, easily replaceable fuse. The unit is built with a larger cable cross-section to ensure stable operation even under high load. Its switched PDU design allows controlled power distribution to connected devices, and the sturdy black metal housing is intended for durable, long-term use in server cabinets.

Suitable for

• 19" server racks and IT cabinets (front horizontal mounting)
• Small and medium data centres
• Network and telecommunication equipment
• Laboratory and testing environments with rack-mounted devices

Key specifications

• Model: Lanberg PDU-08E-0200-BK
• Form factor: 1U, horizontal front-mount for 19" racks
• AC outlets: 8 × Type E
• Nominal input voltage: 220–250 V
• Maximum current: 16 A
• Frequency: 50–60 Hz
• PDU type: Switched
• Colour: Black
• Dimensions (W × D × H): 482.7 mm × 45 mm × 1U

How to use

Install the PDU horizontally on the front rails of a standard 19" server cabinet occupying 1U of rack space. Connect the unit to a suitable single-phase 220–250 V power source that can supply up to 16 A. Plug devices into the eight Type E outlets and, if applicable, use the switching control to manage power distribution. Replace the automatic fuse with the specified spare part when necessary and ensure overload protection settings match the load requirements.

Recommendations

Mount the PDU in a properly grounded rack and verify the upstream circuit can handle the combined load of connected equipment. Periodically inspect the fuse, cable connections and outlet condition; do not exceed the maximum current of 16 A per unit.
