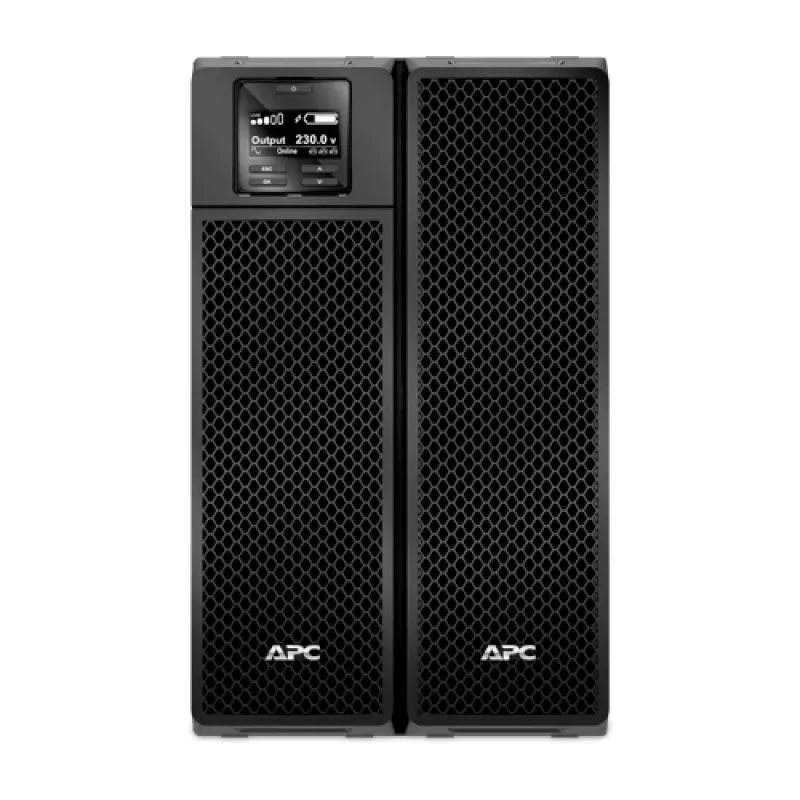

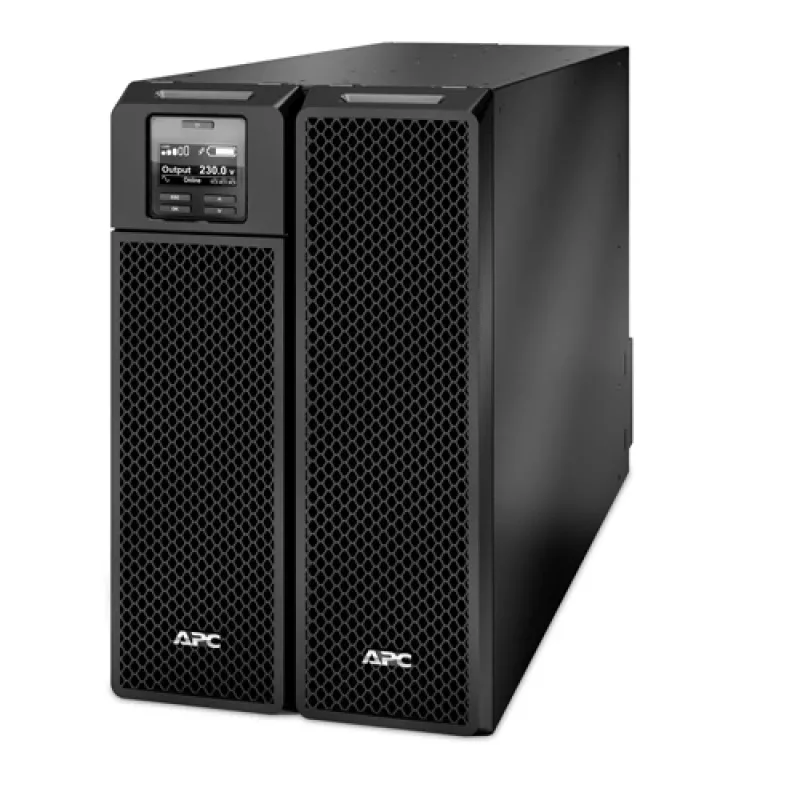

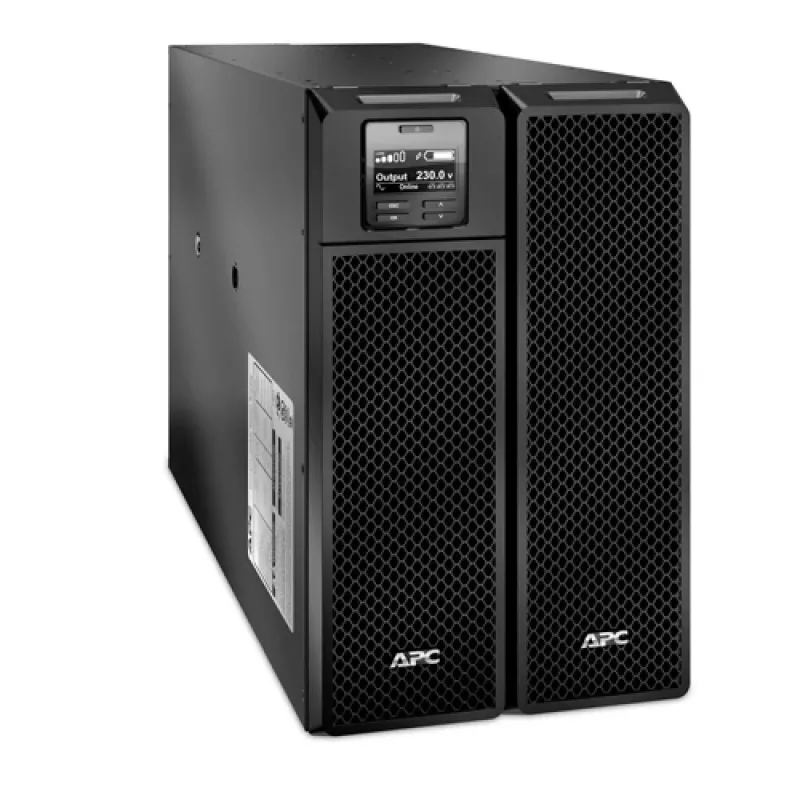

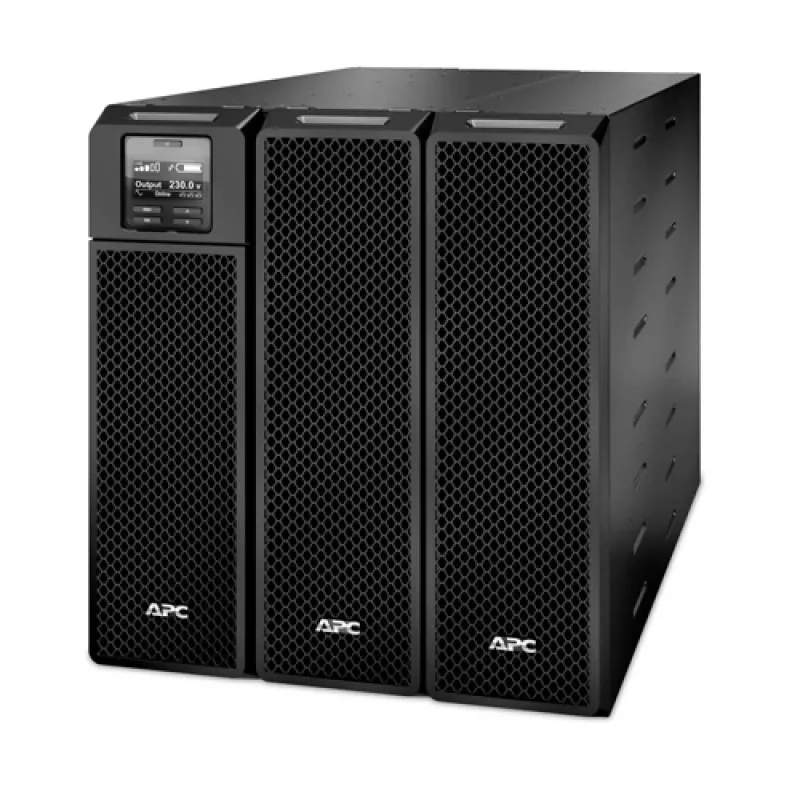

APC Smart-UPS On-Line, 10kVA/10kW, Torre, 230V/400V, 6x C13+4x C19 Saídas IEC, Placa de Rede+SmartSlot, Autonomia Estendida, sem Kit de Calhas

The APC Smart-UPS On-Line 10kVA/10kW Tower is a double-conversion UPS designed for IT professionals and network administrators who need continuous, regulated power for critical equipment. This on-line tower model delivers pure sine wave output, extended runtime with a sealed lead-acid battery (1805 VAh), and network management capability for remote monitoring and controlled shutdowns of servers and virtual machines.

Advantages

The UPS provides tight output voltage and frequency regulation, a wide input voltage window, internal bypass and input power factor correction to preserve equipment operation during disturbances. It includes an embedded Network Management Card and PowerChute Network Shutdown for graceful shutdowns, a SmartSlot for optional accessory cards, and multiple IEC outlets (6x C13 and 4x C19) plus three IEC jumper cables. It supports connection to EcoStruxure IT or third-party management platforms and is compatible with optional SRTRK2 (4-post) and SRTRK3 (2-post) rail kits.

Suitable for

• Data center rack/tower equipment requiring clean, continuous power
• Physical servers and virtual machine infrastructure with managed shutdown needs
• Network and telecommunications equipment in small to medium enterprise environments

Key specifications

• Output power: 10000 W (10 kW)
• Output power capacity: 10 kVA

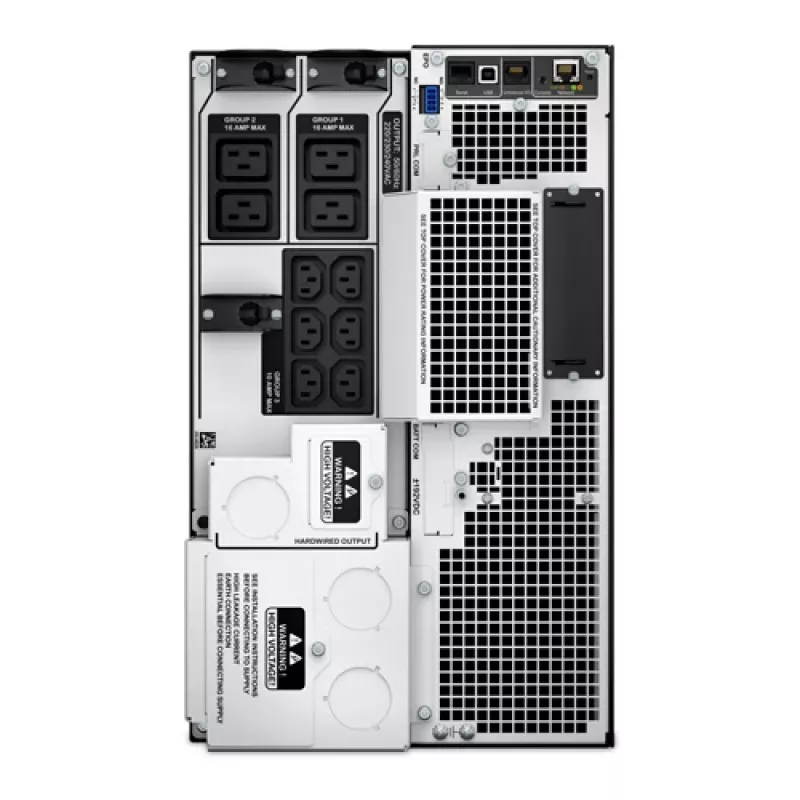

• AC outlets: 10 (6 x IEC 320 C13, 4 x IEC 320 C19)
• Battery type and capacity: Sealed lead-acid, 1805 VAh

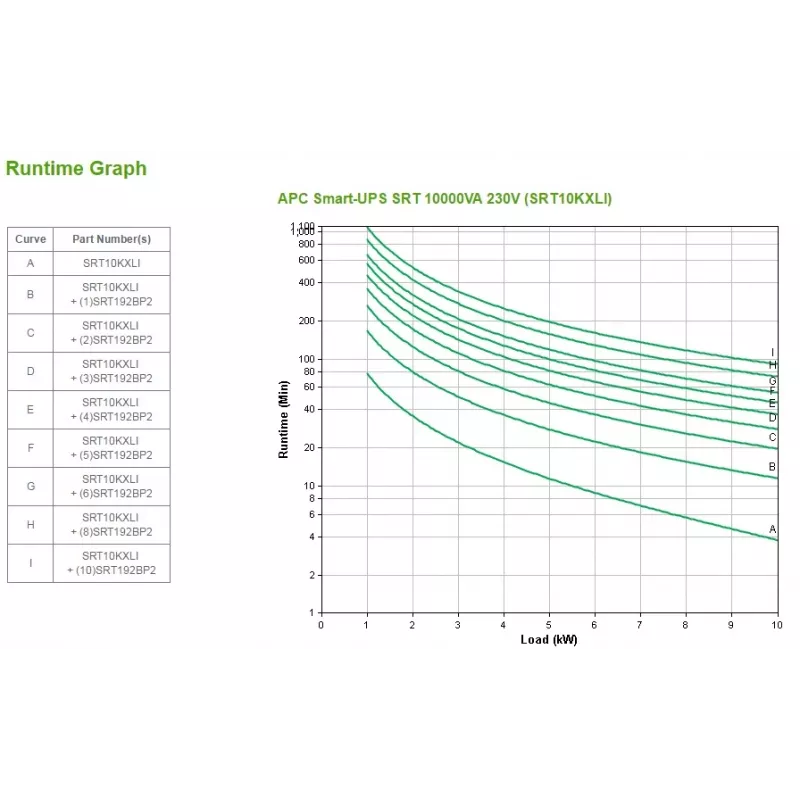

• Typical backup time: ~3.8 minutes at full load
• Weight: 111.82 kg
• Colour: Black

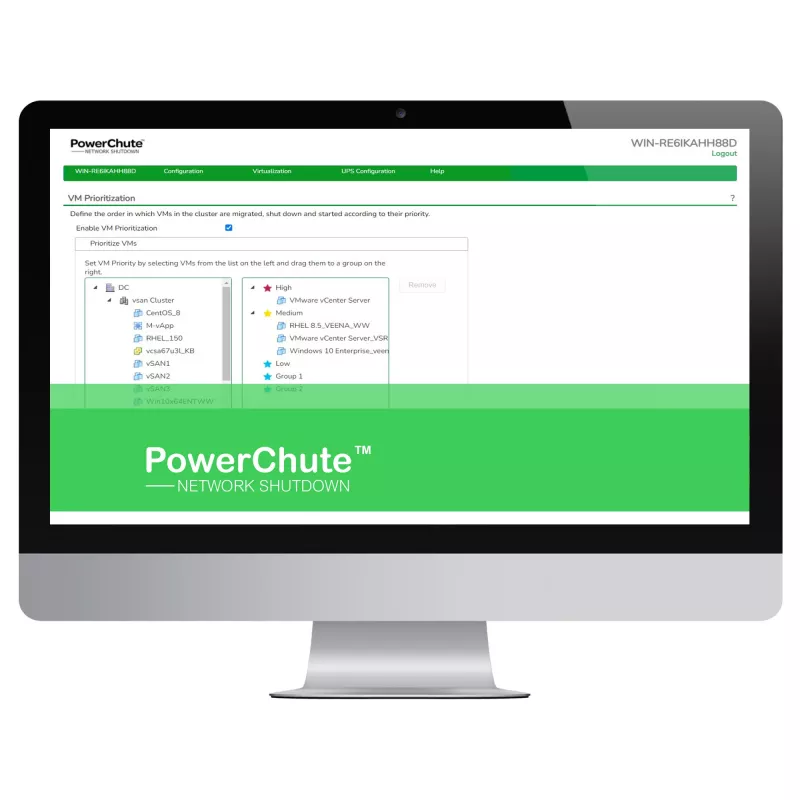

• Network management: Embedded Network Management Card, PowerChute Network Shutdown
• Warranty: 3-year UPS, 2-year battery

How to use

Install the tower UPS in a stable, ventilated location or fit it into a rack using compatible SRTRK2 or SRTRK3 rail kits (sold separately). Connect mains power via the hard-wire input (available as 3-wire 1P+N+E or 5-wire 3P+N+E) and attach critical loads to the IEC C13 and C19 outlets. Configure the embedded Network Management Card for network-based monitoring and enable PowerChute Network Shutdown to automate graceful shutdown of connected servers and virtual machines. For extended runtime requirements, consider adding external battery packs if supported by the system.

Recommendations

Ensure periodic battery checks and replace the sealed lead-acid battery according to the 2-year warranty or when runtime degrades; register the UPS to validate the 3-year product warranty and integrate with EcoStruxure IT or other centralized monitoring tools for proactive alerts and maintenance.
