Armário de montagem na parede Extralink EX.12981 12U cinzento

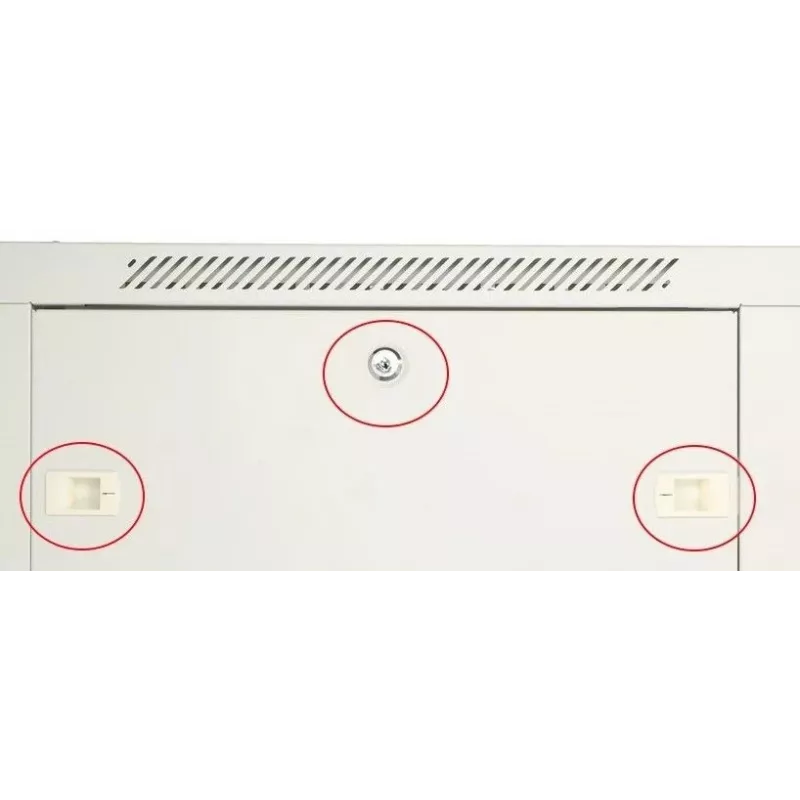

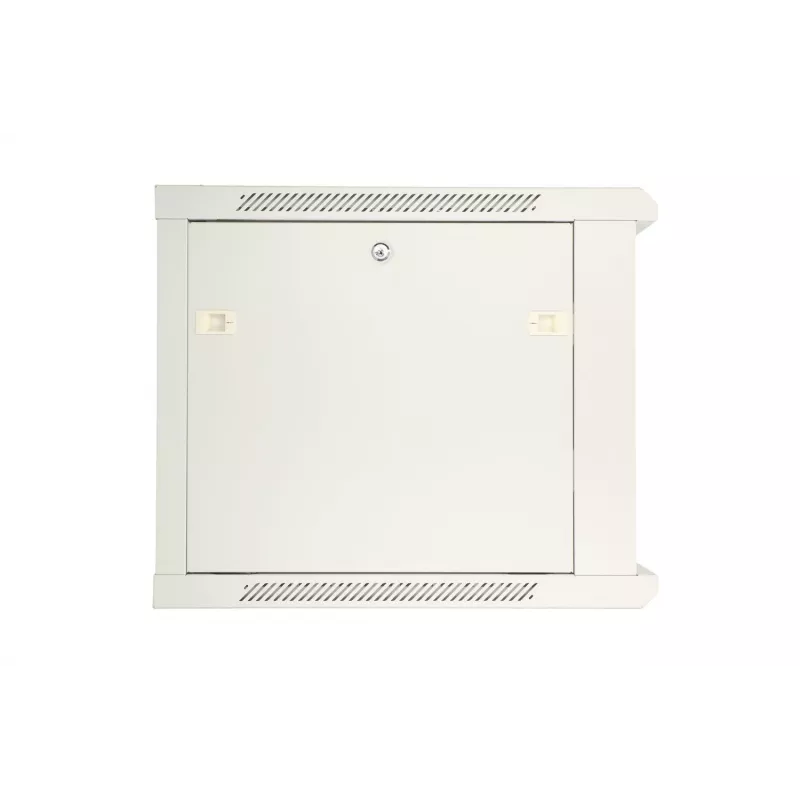

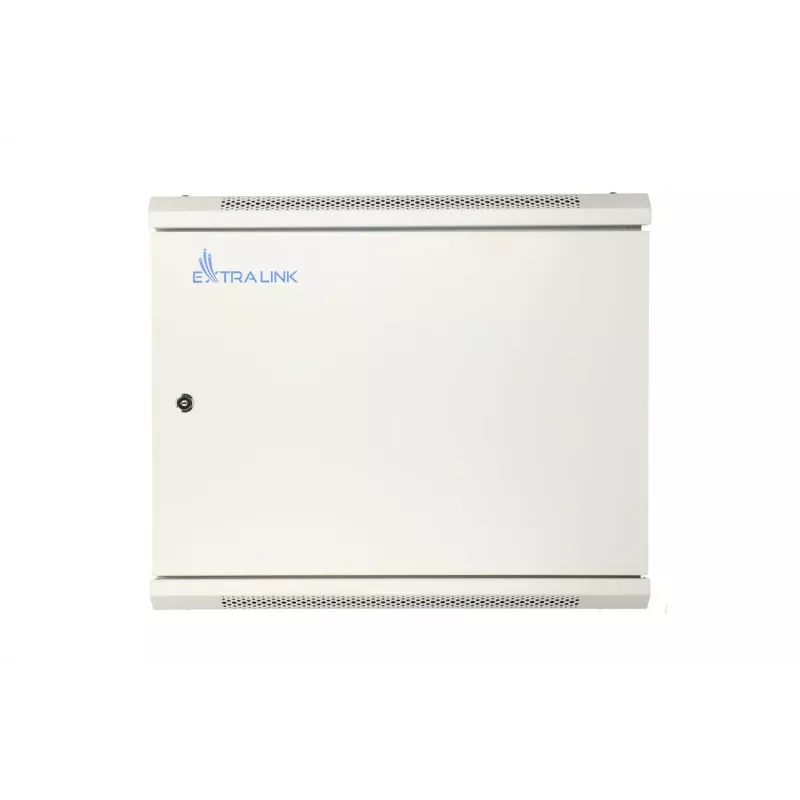

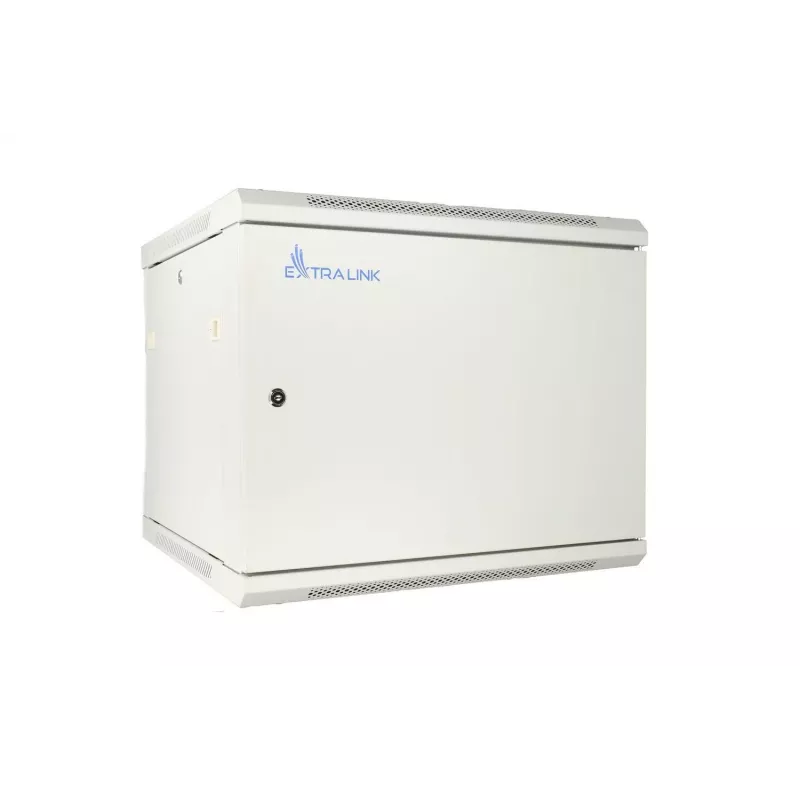

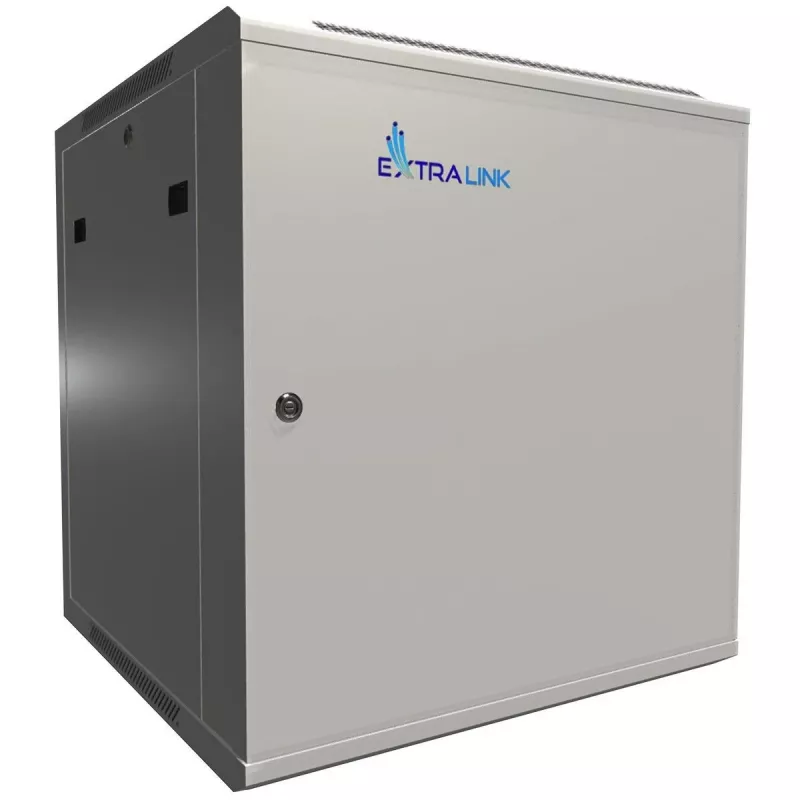

The Extralink 12U 600x600 wall-mounted rack cabinet (model EX.12981) is designed for mounting network devices, servers and CCTV equipment on walls in offices, server rooms and control rooms. Constructed from cold-rolled steel with a grey finish, the cabinet provides a compact 12U rack space with a total height of 640 mm and a 600 × 600 mm footprint. The front tin door can be configured to open left or right, and the unit includes a keyed lock for security.

Advantages

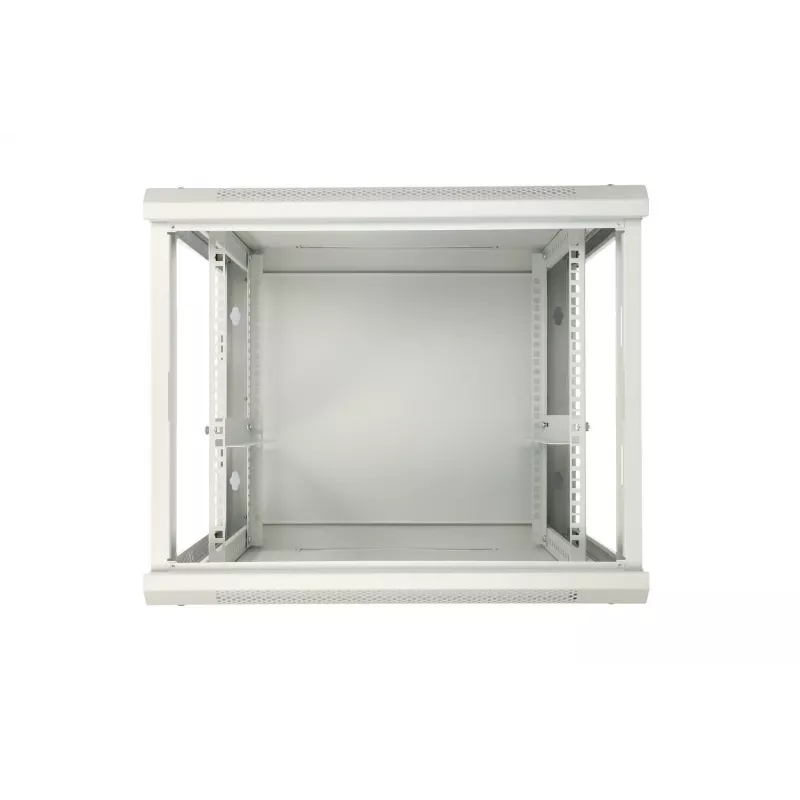

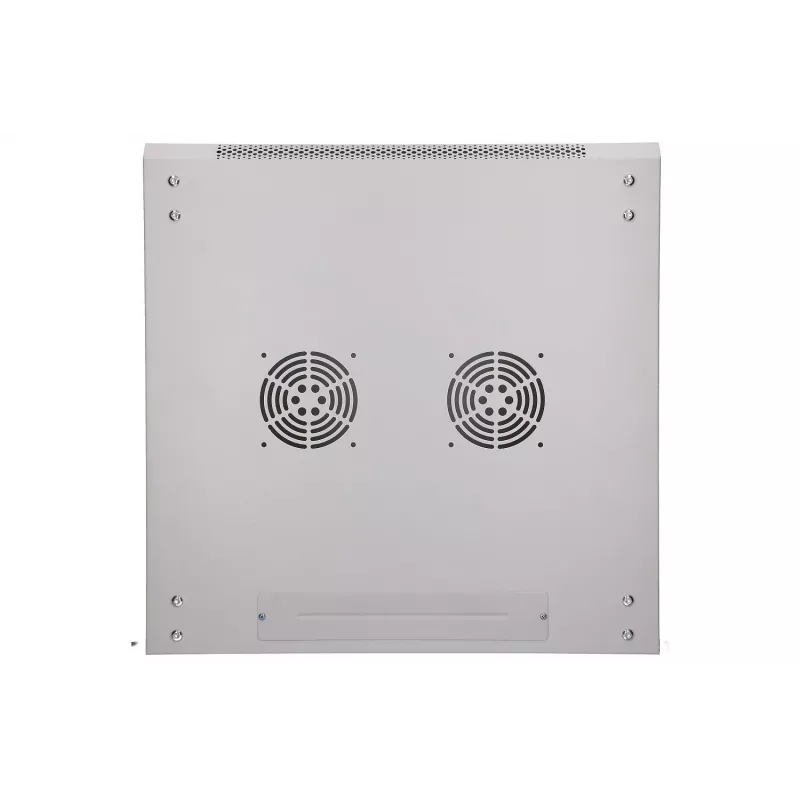

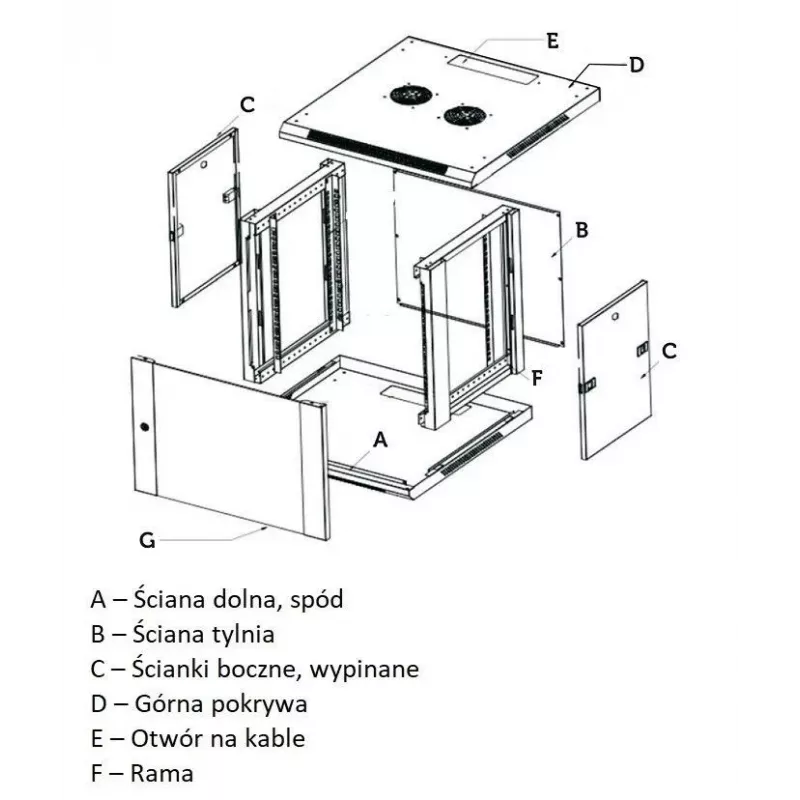

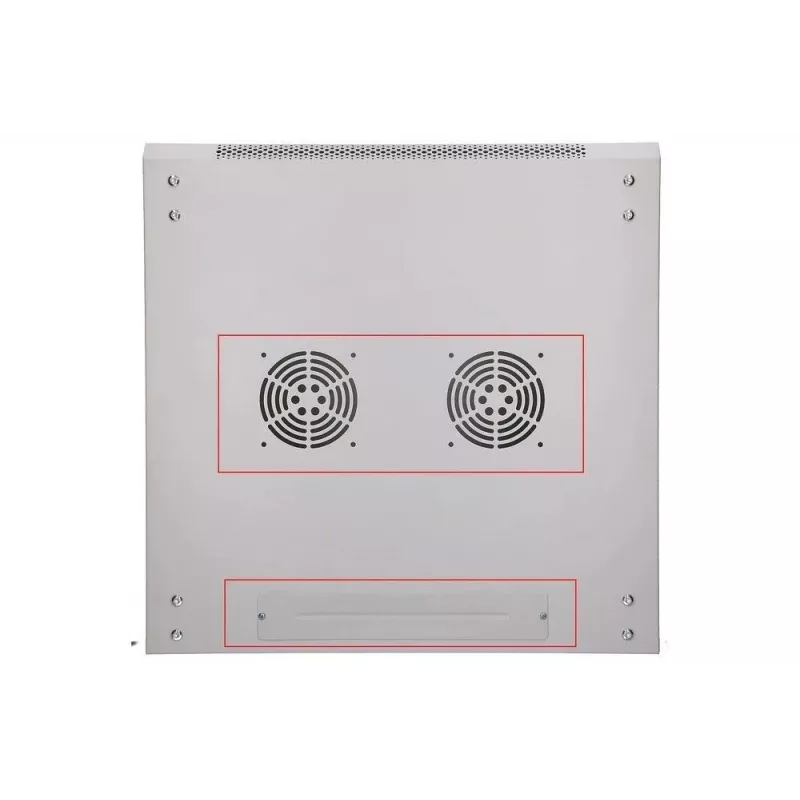

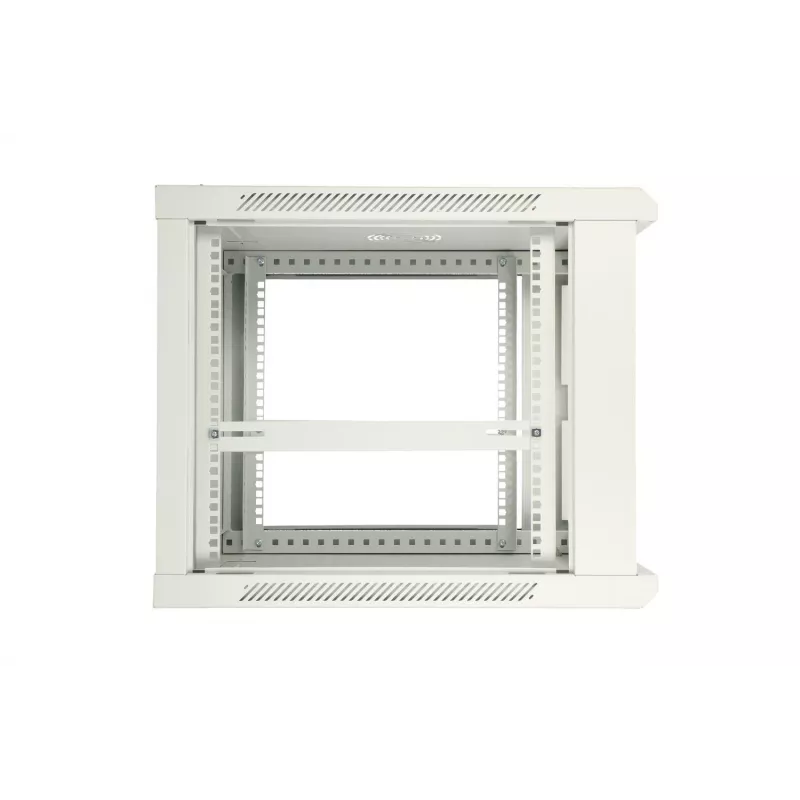

The cabinet offers clearly marked vertical rails with 12U height designation for straightforward device installation and alignment. Side panels feature snap fasteners for quick removal during installation or maintenance. The top panel includes two mounting positions for fans and an additional conduit opening for cable routing, while the cold-rolled steel construction supports a sturdy installation and a maximum recommended load of 60 kg.

Suitable for

Key specifications

How to use

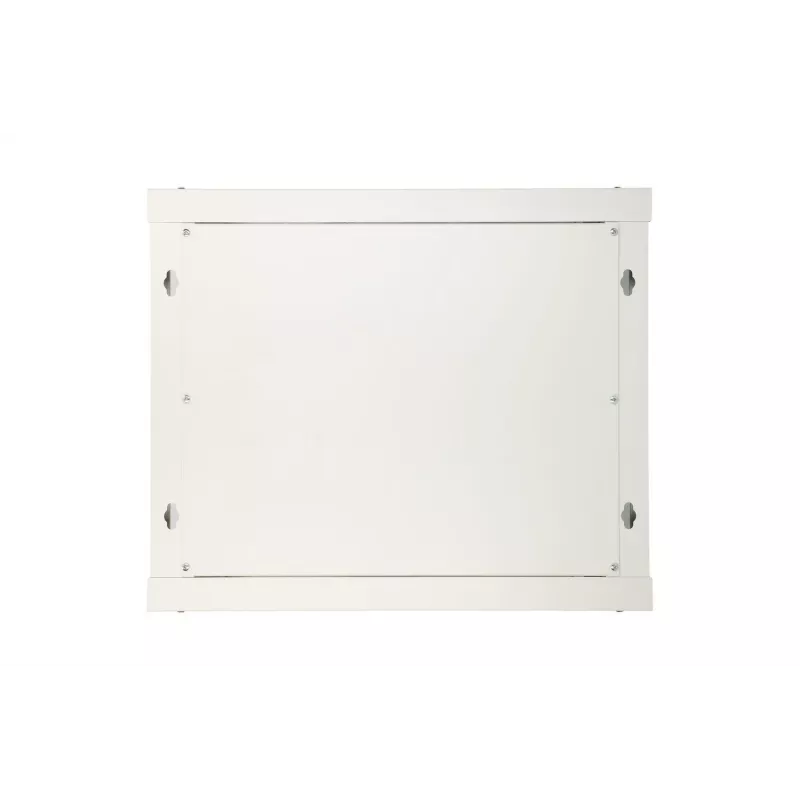

Mount the Extralink 12U rack to a solid wall using appropriate anchors and fixings rated for the combined weight of the cabinet and installed equipment. Install devices on the clearly marked 12U vertical rails and secure them with standard 19" rack screws. Route cables through the conduit opening on the top panel and, if needed, fit fans into the two top mounting positions to improve airflow. Use the snap fasteners to remove side panels for easier access during installation and maintenance.

Recommendations

Place the cabinet on a load-bearing wall and ensure installation hardware matches local building codes. Distribute equipment weight evenly on the rails and maintain ventilation clearance; add fans if used with heat-generating devices. Keep the keyed lock engaged when the cabinet is unattended to protect installed equipment.
