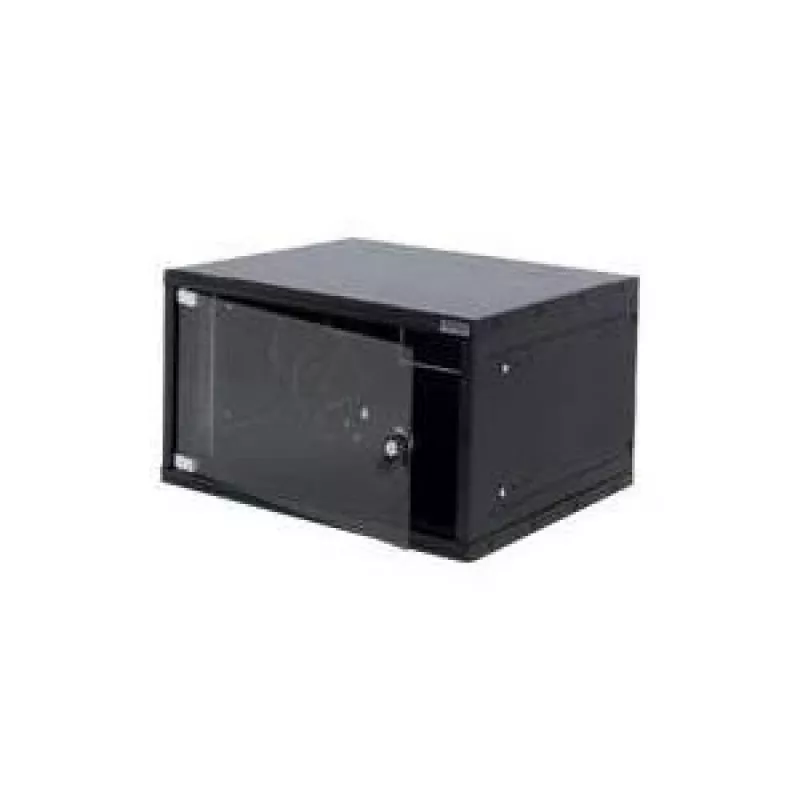

Armário de montagem na parede Triton RXA-09-AS4-BAX-A1 Preto 9U

RXA wall-mounted cabinet represents the conception of "flat pack", which means a demountable cabinet that is supplied disassembled FLAT-PACK-CONCEPTION Reduces cost of transportation and storage. Together with a unique construction, it contributes to the attractive price while keeping all functional characteristics. MOUNTING Thanks to the unique construction, the assembly procedure of RXA takes only few minutes and it does not almost require any tools (Torx T25). Plastic pins are used to join all the individual parts. DESCRIPTION, PURPOSE OF USE Demountable 19" wall mounted cabinet with IP30 protection, supplied disassembled Cabinet is to be hanged right on the wall. Cabinet includes two adjustable vertical rails Cabinet construction: Cabinet is made from parts joined by plastic pins / glass door: safety hardened glass, thickness 4 mm Max. permissible load of the door is 10 kg. Min. thickness of the surface finish is 65 micrometer Cabinets are intended for installation of data and telecommunication devices and their distribution systems All parts are connected with earthing cables that have to be properly fixed and inserted into connectors during all the time when using the cabinet. There is one M8 screw placed on the bottom part of the cabinet as an earthing main point Cable openings covered with breakout-type blanking panels are placed in the top and the bottom part of the cabinet rear side, others are in the top and the bottom side of cabinet OPERATION CONDITIONS Operation environment: Office The cabinet is not intended for outdoor installations and for installations in environment that can influence negatively the functionality of the cabinet and the mounted devices (e.g. environment with danger of explosion or humid and wet surroundings) Must be protected against: Mechanical damage Improper manipulation A different usage than the cabinet is intended for Improper manipulation is especially: Overloading (maximum recommended load exceeding) Device installation that can influence negatively operation and function of the cabinet or the installed equipment Change of the construction or design of the cabinet INSTALLATION OF THE CABINET: It is necessary to assemble all single cabinet parts and to join them with delivered plastic pins. See the enclosed manual for the detailed assembly procedure This type of cabinet is to be hanged right on the wall using screws, wall plugs and washers. Spacing of mounting holes is indicated as "R" in the cabinet scheme To secure the maximum recommended load, it is necessary to fi x the cabinet on the wall with an appropriate carrying capacity (brick, concrete or similar) and to distribute the installed loading equally To avoid dust penetration in case that cables lead through some of the cable openings, you can seal it with the use of a blanking panel with a brush ENVIRONMENT PROTECTION: All parts are made of recyclable materials and after its discard, it is necessary to dispose the cabinet according to valid regulations Specifications: Demountable 19" wall mounted cabinet, one-piece glass door Dimensions: Width 550mm, Depth 400mm

• Door height: 412mm
• Manufacturer No.: RXA-09-AS4-BAX-A1
• EAN Barcode: 8595105020500
• Colour: Black (RAL9005)
• Detachable side panels: Yes
• Detachable rear panel: Yes
• Demountable: Yes
• Height (outside): 463mm
• Height packaging: 0.463m
• Packaging volume: 0.1019m³
• Length packaging: 0.400m
• Manufacturer information: Triton Chemnitz GmbH
  Teichstraße 11
  09366 Niederdorf
  Deutschland
  [email protected]
• Country of origin: Czech Republic
• Im Angebot: No
• Stark reduziert: No
• Weight: 17.330kg
• Width packaging: 0.550m
• Depth: 400mm
• Brand: Tritón
• Customs tariff number: 8538100090
• Recommended maximum load: 25kg
• Protection class: IP30
• Width: 550mm
• Door width: 505mm
• Height unit: 9U

How to use

Unpack the flat-pack cabinet and follow the included assembly guide. Join body panels using the supplied plastic pins and secure the vertical rails in the desired prepared depth positions using screws. Install equipment on the 19" vertical rails and route cables through the top, bottom or rear middle cable entries by breaking out the relevant blanking panel as needed. Mount the glass door on the preferred side and lock it when access is not required.

Recommendations

Place the rack on a suitable load-bearing wall and ensure secure wall fixings appropriate for the wall material. Do not exceed the 25 kg total load rating; distribute weight evenly across the rails. For cable management, use the provided break-out panels and avoid sharp bends in cabling. Verify earthing continuity after installation.
