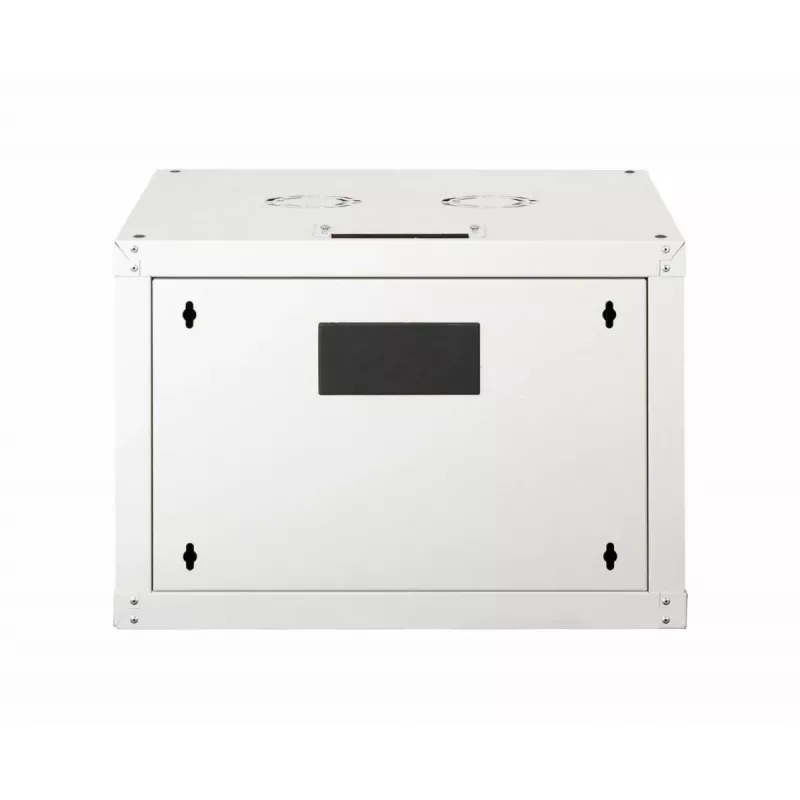

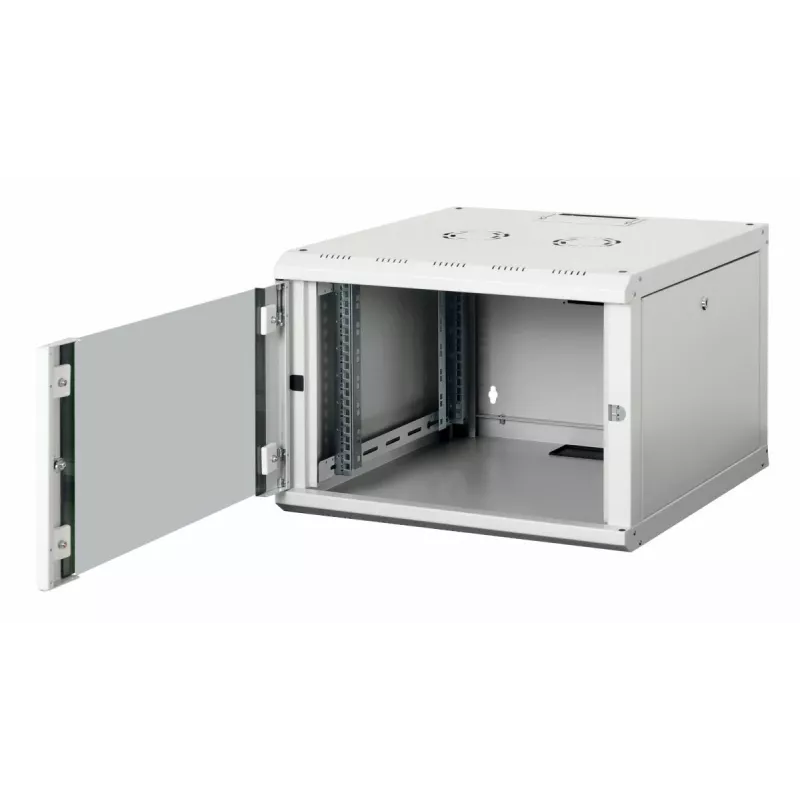

Armário de Parede Equip Pro Mount Armário 19' EPM-07-6060-G-CBAA

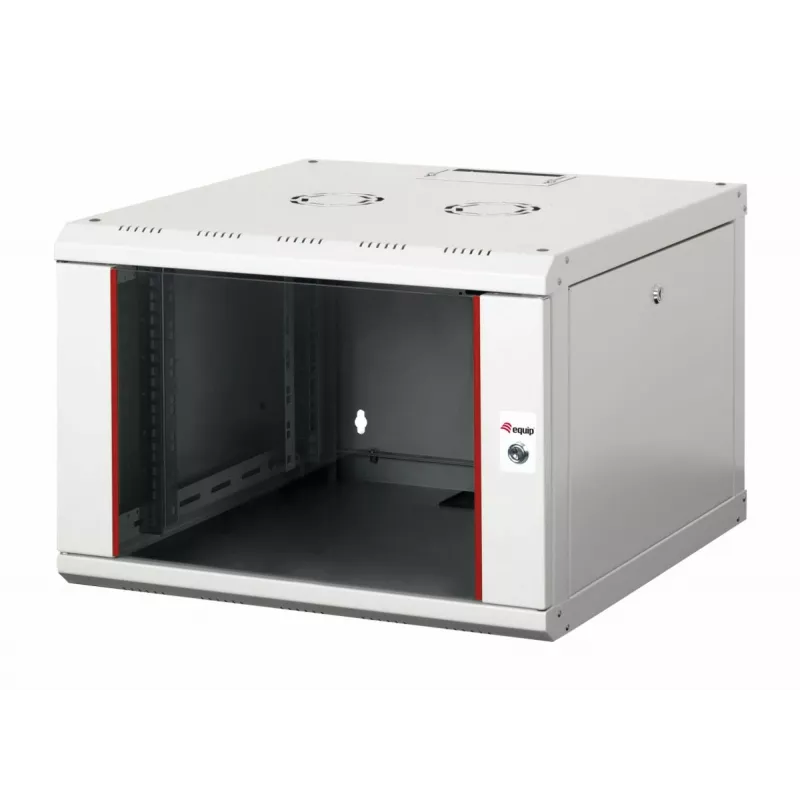

The Equip Pro Mount 19" Cabinet EPM-07-6060-G-CBAA is a 7U wall-mounted network rack designed to host both active and passive networking components while keeping cable routing tidy. Constructed from steel sheets up to 1.5 mm thick and finished with a powder coating in light grey (RAL 7035), this cabinet includes two pre-mounted 483 mm (19") profile rails with height unit markings and adjustable depth. The rack weighs 18 kg and provides ventilation slots in the roof, removable door and side panels, reversible door orientation, and options for leveling feet or castors for standalone use.

Advantages

The cabinet offers a compact 7U capacity with robust 1.5 mm steel construction and a corrosion-resistant powder coating. Pre-mounted galvanized 19" rails with readable U markings and depth adjustment simplify equipment installation. Cable management features include a sliding roof cable entry panel with rubber seal, punched cable entries with plastic covers on the rear wall and base, and brushes in the rear frame to maintain tidy cabling. Detachable panels and reversible door orientation increase installation flexibility.

Suitable for

• Small server or network equipment installations in offices or comms rooms
• Mounting patch panels, switches, and compact UPS units
• Environments where wall-mounted, space-saving racks are required

Key specifications

• Model: Equip Pro Mount 19' Cabinet EPM-07-6060-G-CBAA
• Rack capacity: 7U
• External dimensions (H×W×D): 418 × 600 × 600 mm
• Maximum mounting depth: 450 mm
• Material thickness: up to 1.5 mm steel sheets
• Profile rails: 2 × pre-mounted 483 mm (19") galvanized rails, adjustable depth, bidirectional U markings
• Weight: 18 kg
• Colour: Light grey (RAL 7035)
• Security: key lock on the door

How to use

Securely fasten the cabinet to a suitable load-bearing wall following local mounting regulations and using appropriate fixings for the wall material. Install equipment on the pre-mounted 19" rails, adjusting rail depth as needed within the 450 mm maximum mounting depth. Route cables through the sliding roof cable entry or the punched entries on the rear wall and base, using the supplied plastic covers and brushes to protect and organize cabling. Remove side panels or the door for easier access during installation; the door can be reversed to open from the preferred side.

Recommendations

For reliable operation, avoid exceeding the specified 7U capacity and respect the 450 mm maximum mounting depth. Ensure proper ventilation around the cabinet and do not block roof ventilation slots. Use appropriate cable management accessories and secure heavy equipment with additional support if required.
