Armário de Parede Equip Pro Mount Armário 19' EPM-09-6045-G-CBAA

The Equip Pro Mount 19" Cabinet EPM-09-6045-G-CBAA is a 9U wall-mounted network rack designed for tidy installation of active and passive equipment in small server rooms, network closets, or office environments. Constructed from steel sheets up to 1.5 mm thick and finished in light grey (RAL 7035) with a powder coating, the cabinet includes pre-mounted 483 mm (19") profile rails, a key lock for security and multiple cable entry options to support organized cable routing.

Advantages

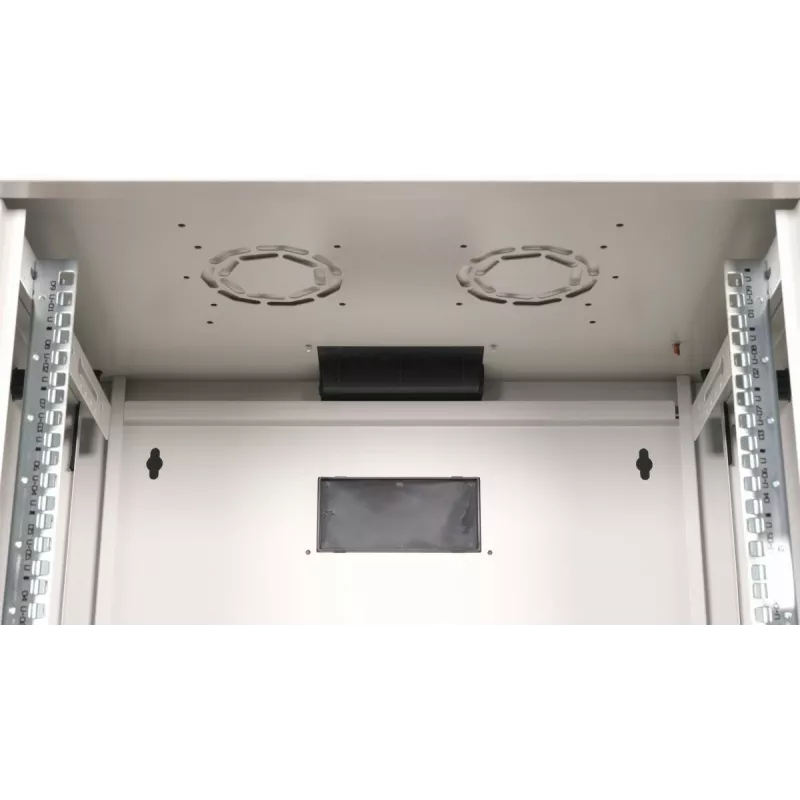

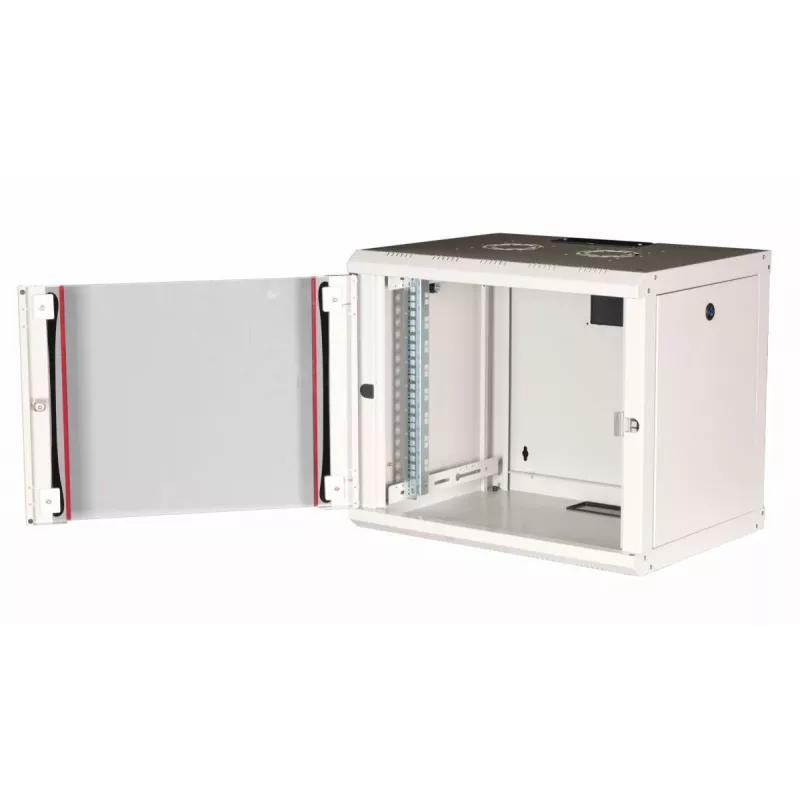

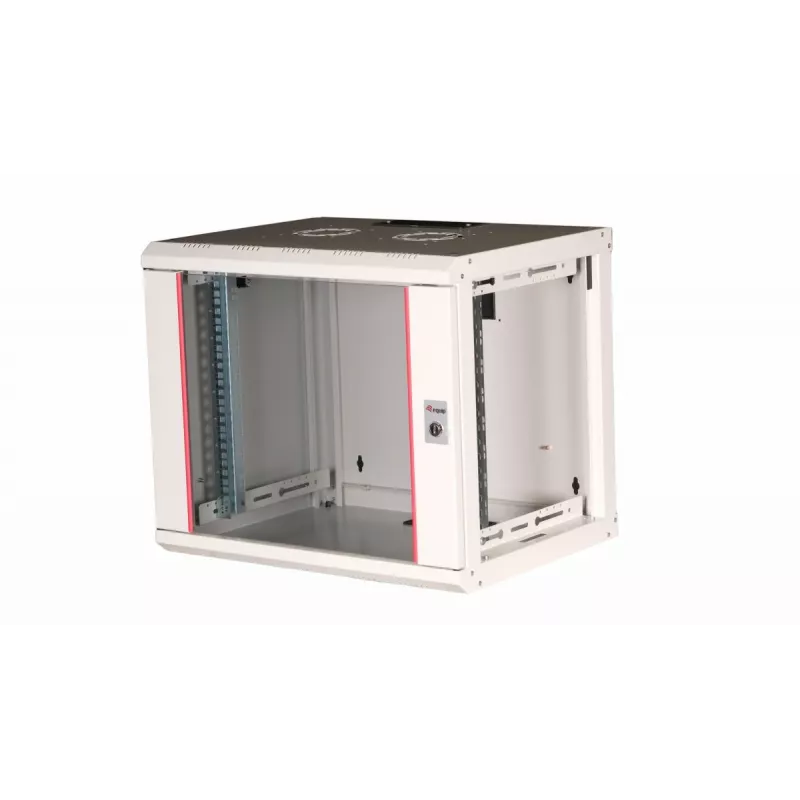

The cabinet combines robust steel construction with adjustable 19" rails that are galvanized and marked with height units readable from both directions. Wall mounting is simplified while removable side panels and a reversible door allow flexible access. Integrated roof ventilation slots, a sliding cable entry panel with a rubber seal and rear/bottom punched cable entries with covers help maintain airflow and structured cable management. Leveling feet or castors can be fitted for freestanding use.

Suitable for

• Mounting network switches, patch panels and small servers in 9U space
• Equipment installation in offices, telecom closets and retail locations
• Protecting active and passive network components with organized cable entry

Key specifications

• Rack capacity: 9U
• Mounting depth (max): 370 mm
• Dimensions (H×D×W): 505 × 600 × 450 mm
• Weight: 17.6 kg
• Profile rails: two pre-mounted 483 mm (19") galvanized, depth-adjustable with unit markings
• Material: steel sheets up to 1.5 mm
• Finish colour: Light grey (RAL 7035)
• Security: key lock

How to use

Mount the cabinet to a suitable load-bearing wall following local mounting regulations and using appropriate anchors. Install equipment on the pre-mounted 19" rails, adjusting rail depth to fit device depth up to the specified maximum. Route cables through the sliding roof entry panel, rear and base punched entries or rear frame brushes; use the supplied plastic covers where needed. Remove side panels or reverse the door for easier access when installing or servicing equipment.

Recommendations

Install the cabinet in a well-ventilated location and avoid overloading the 9U capacity. Use cable management accessories and follow weight and depth limits of mounted devices to ensure stable installation and adequate airflow.
