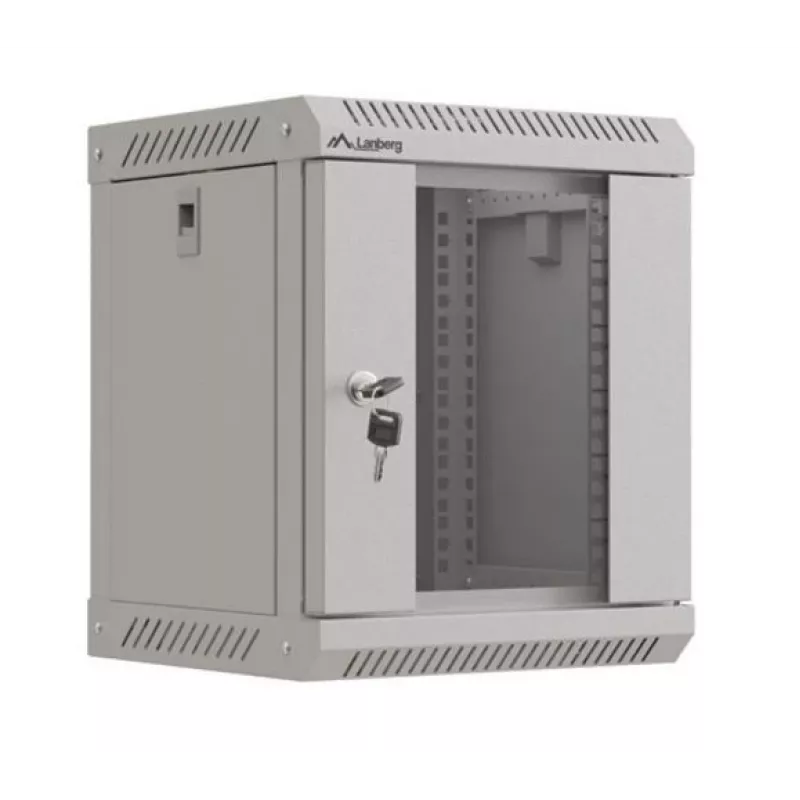

Armário de parede Lanberg WF11-3306-10S 6U 30 kg cinzento

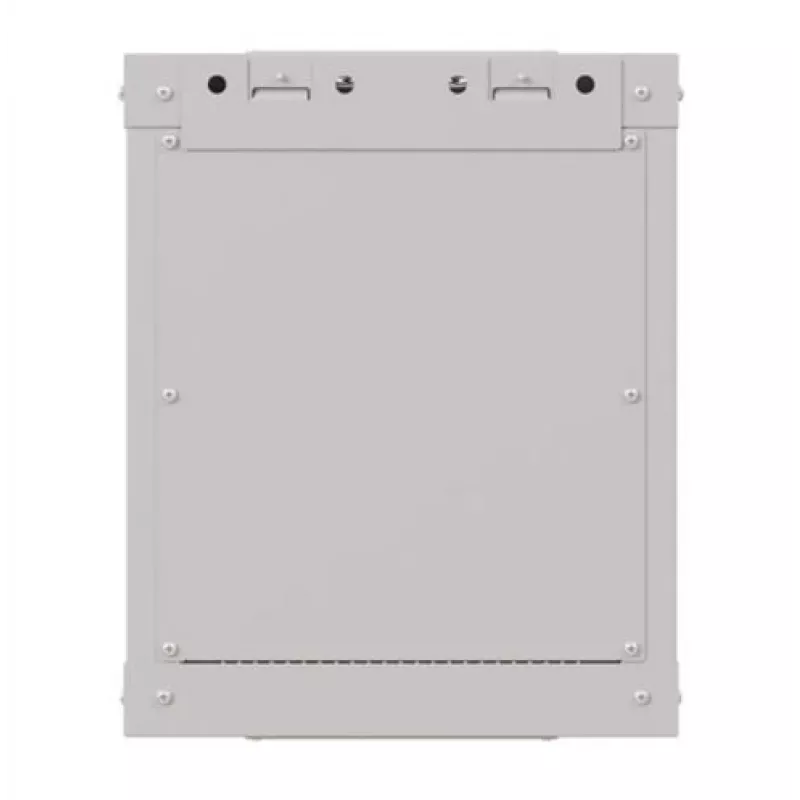

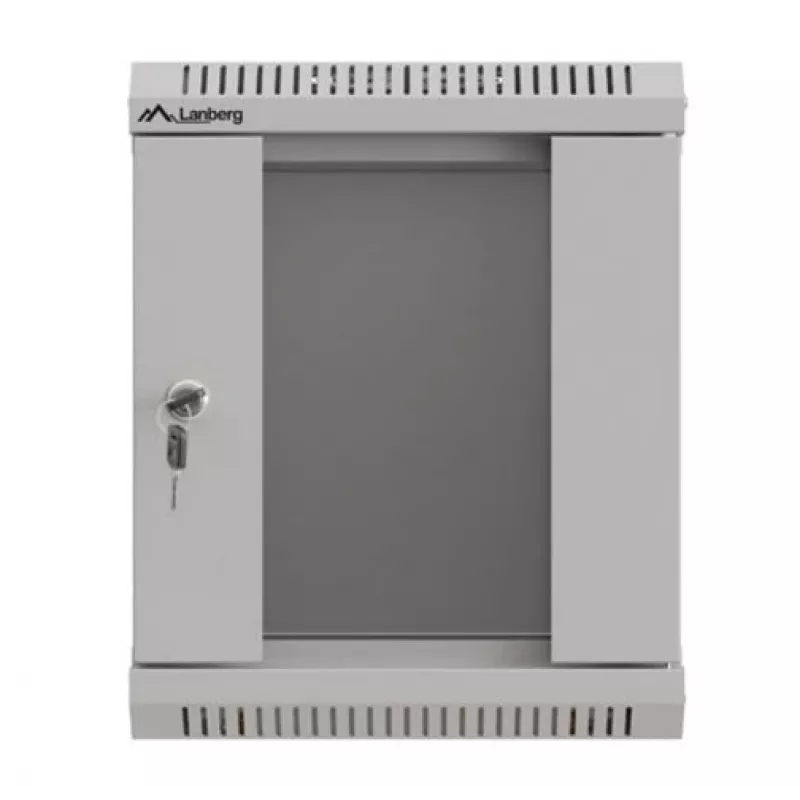

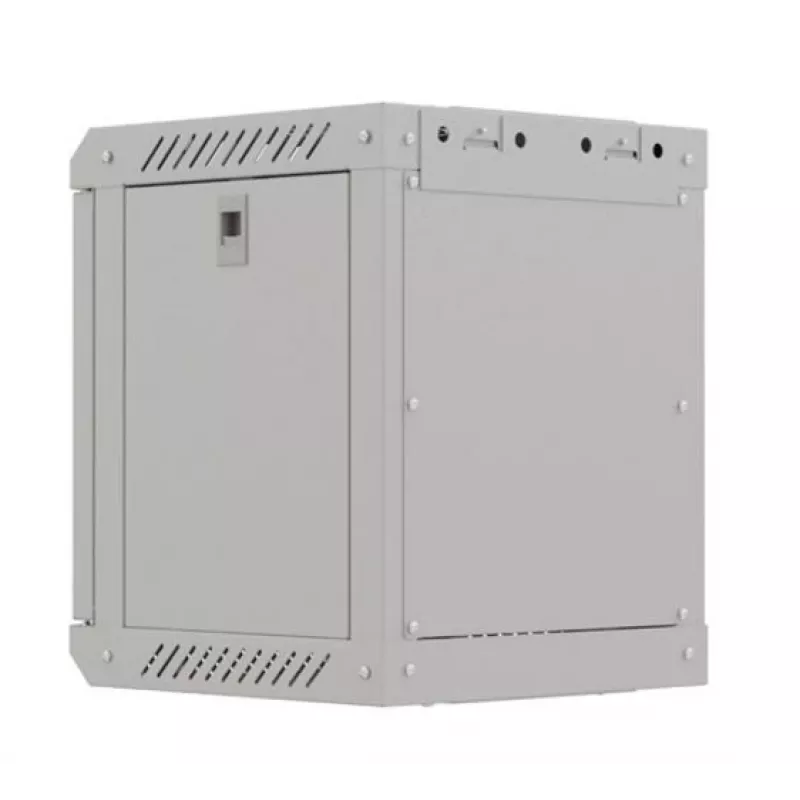

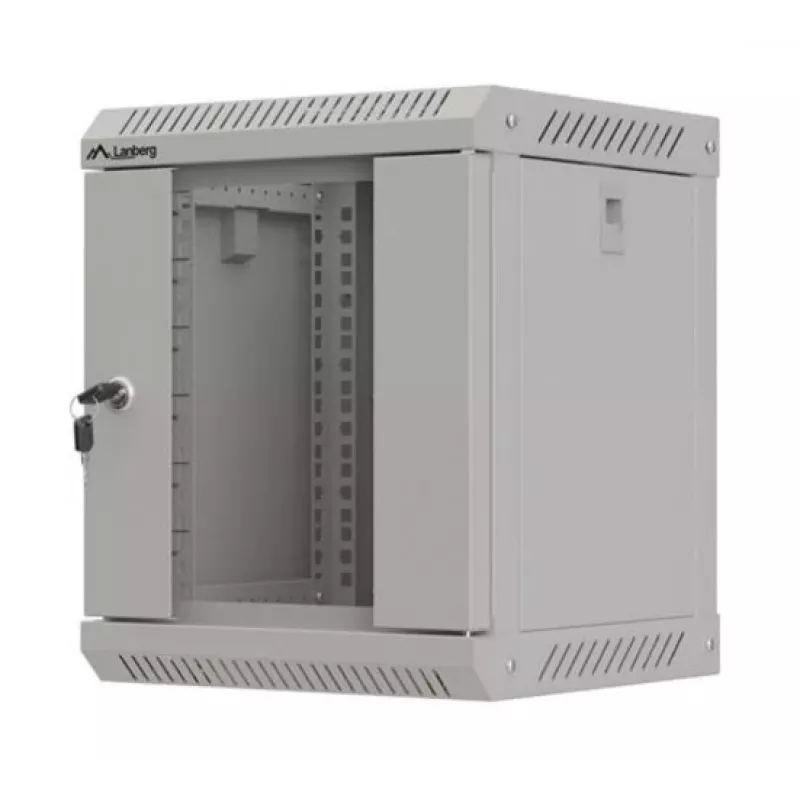

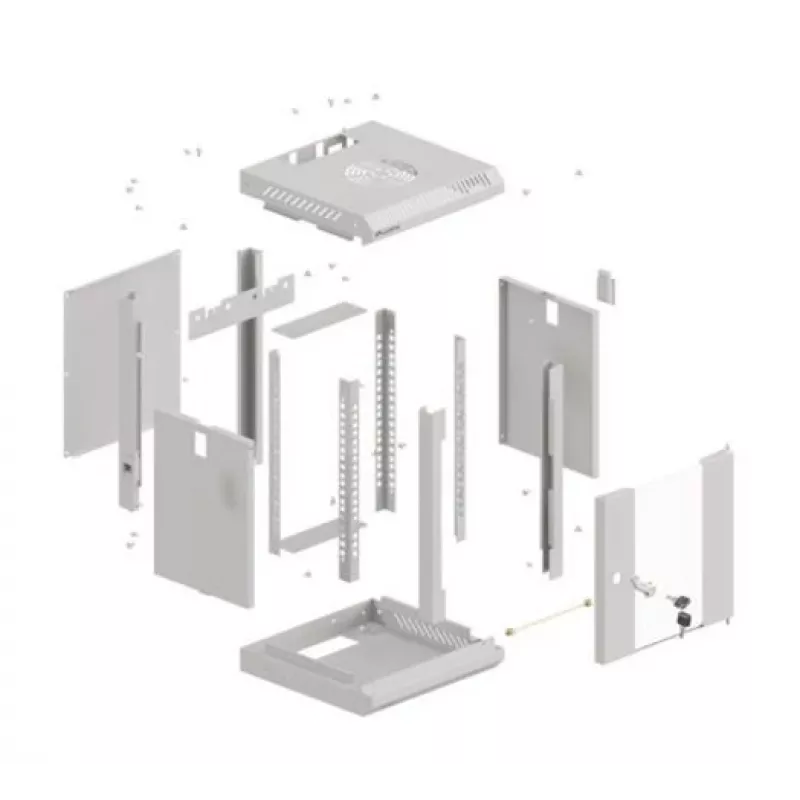

The Lanberg WF11-3306-10S is a 6U, 10" wall-mounted rack cabinet designed for indoor network and IT installations. It provides a compact 300 x 300 mm footprint, supports up to 30 kg of installed equipment and features a keyed front lock, IP20 protection and a grey powder-coated steel finish. The WF11 series integrates four vertical mounting rails, removable rear panel, top and bottom cable entry, and improved ventilation allowing fan installation without occupying equipment space.

Advantages

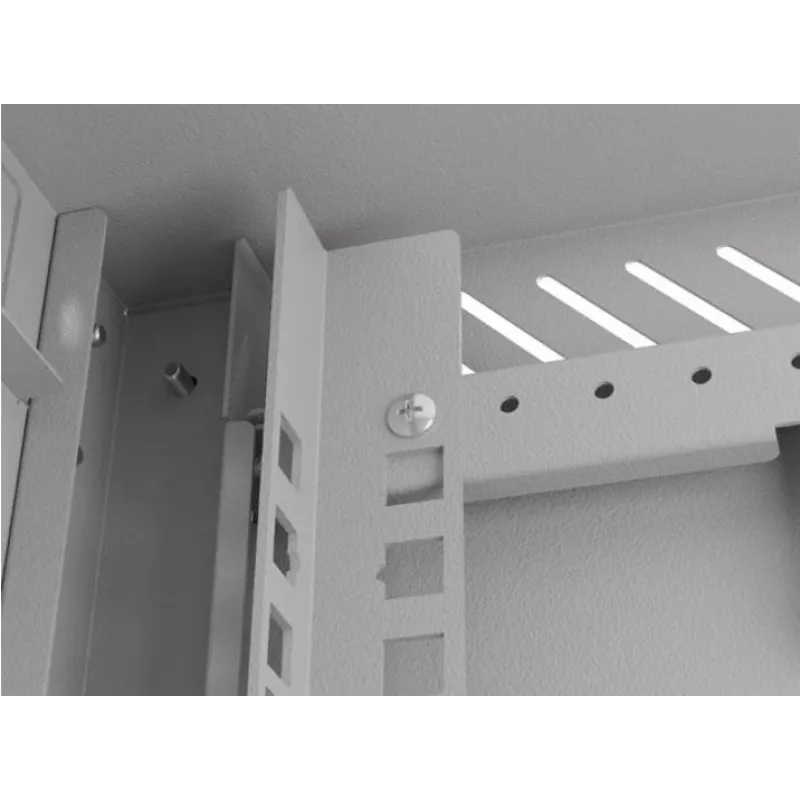

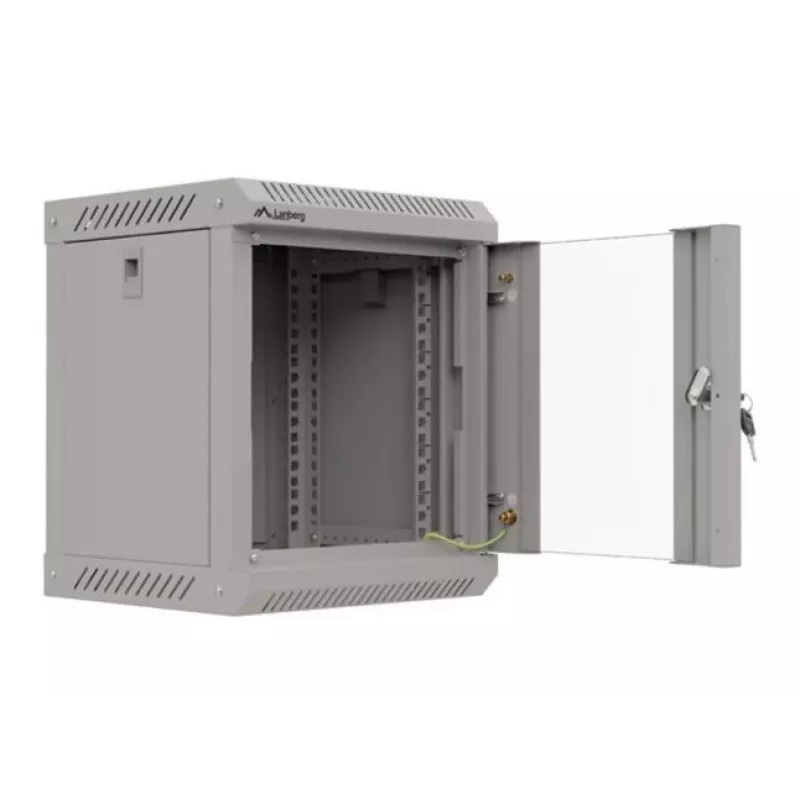

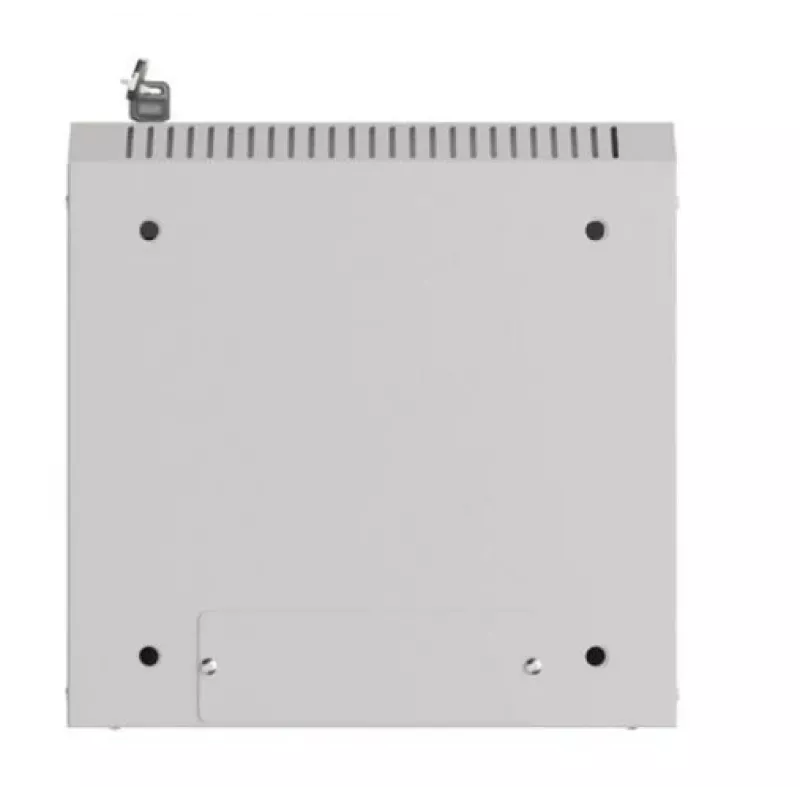

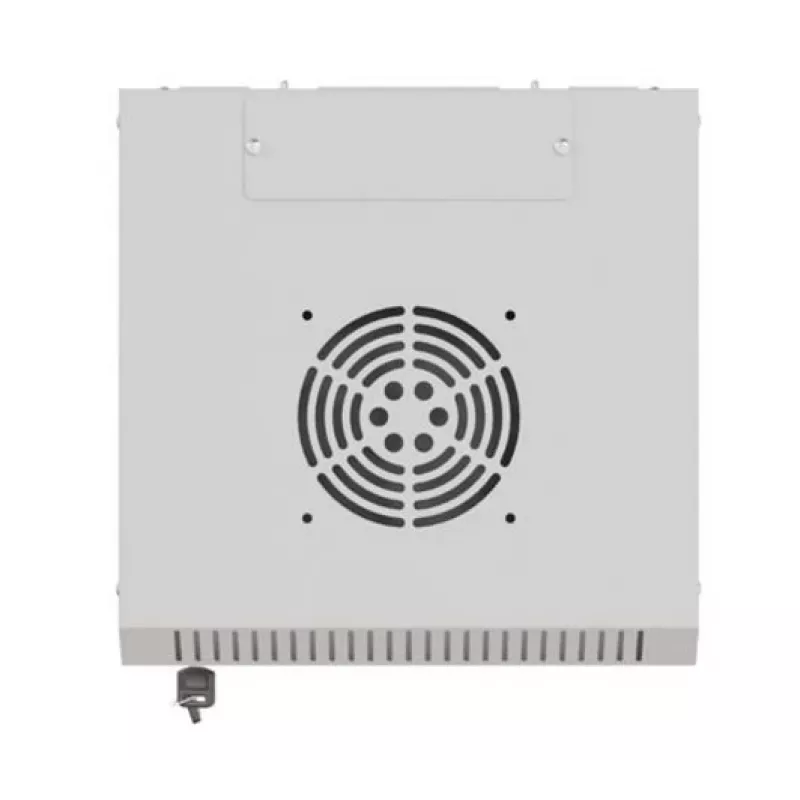

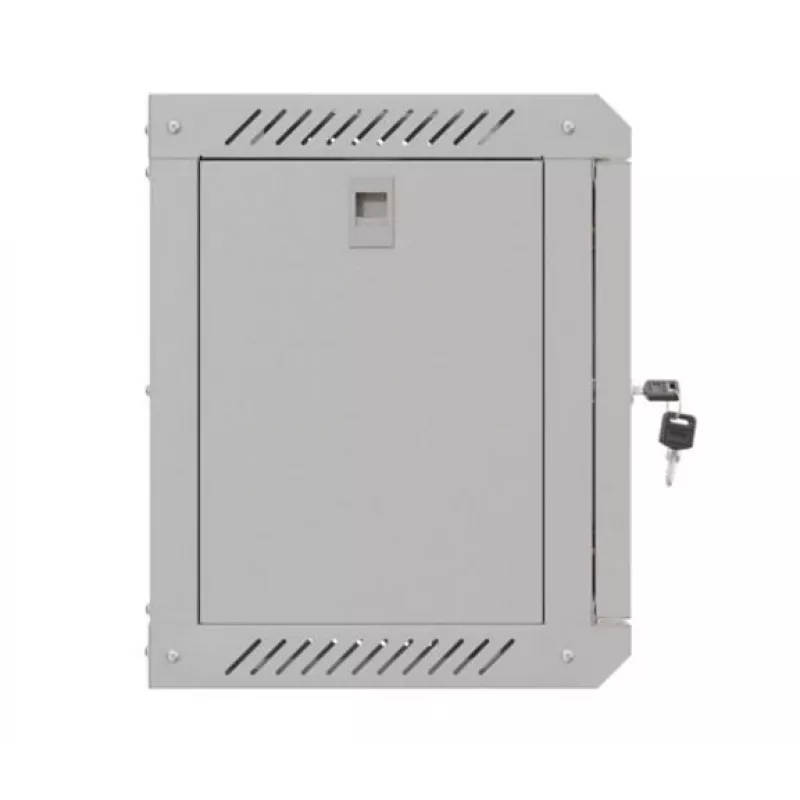

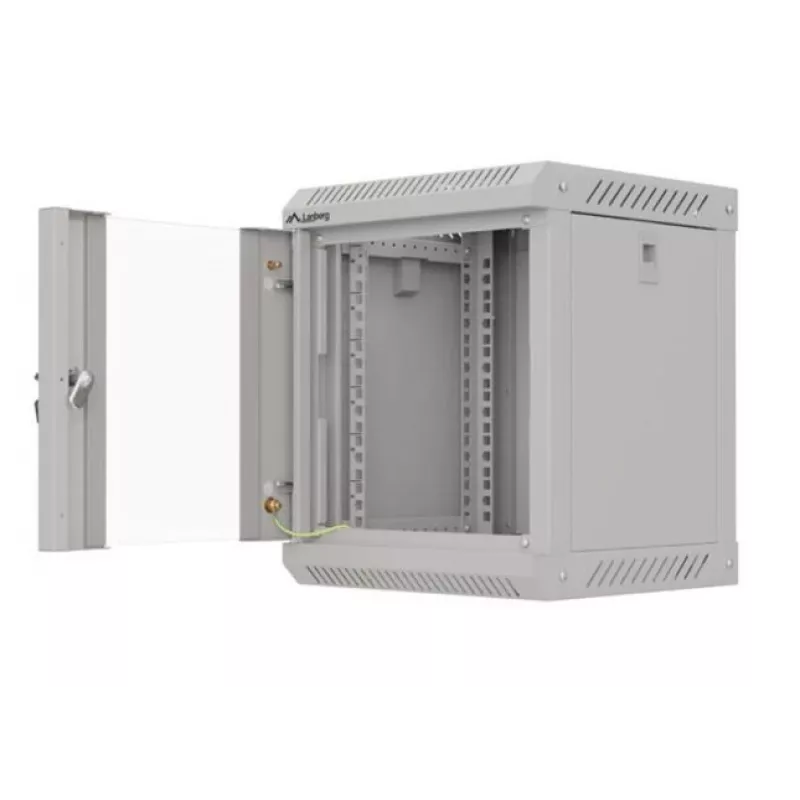

The WF11-3306-10S combines a space-saving 10" format with enhanced functionality: four vertical rails (two at the front and two at the rear) increase mounting stability; reversible front door and pull-down side doors provide flexible access; M10 holes in the bottom cover permit mounting casters or feet; flat-pack packaging simplifies transport and storage. Optimized ventilation and dedicated fan mounting maintain temperature without reducing usable rack depth.

Suitable for

• Small office and home IT networks
• POE and network equipment for CCTV and alarm systems
• Server room racks for compact network appliances
• Wall-mounted installations where space is limited

Key specifications

• Model: Lanberg WF11-3306-10S
• Rack capacity: 6U (10")
• External dimensions (H×W×D): 370 × 300 × 300 mm
• Maximum load: 30 kg
• Weight: 8.2 kg
• Protection class: IP20
• Colour: Grey
• Material: Rolled steel

How to use

Mount the cabinet on a solid wall using the included rear mounting strip and suitable fasteners for your wall type. Configure the front door hinge (left or right) as required, remove the rear panel if additional rear access is needed, and install equipment on the vertical mounting rails. Route cables through the top or bottom openings and secure them with brush panels or cable organizers. If required, install the fan in the dedicated fan position without reducing rack depth.

Recommendations

Install the cabinet on a load-bearing surface and ensure the combined weight of installed equipment does not exceed 30 kg. Maintain proper airflow by leaving clearance around ventilation holes and regularly check that cable routing and accessories do not obstruct free air movement.
