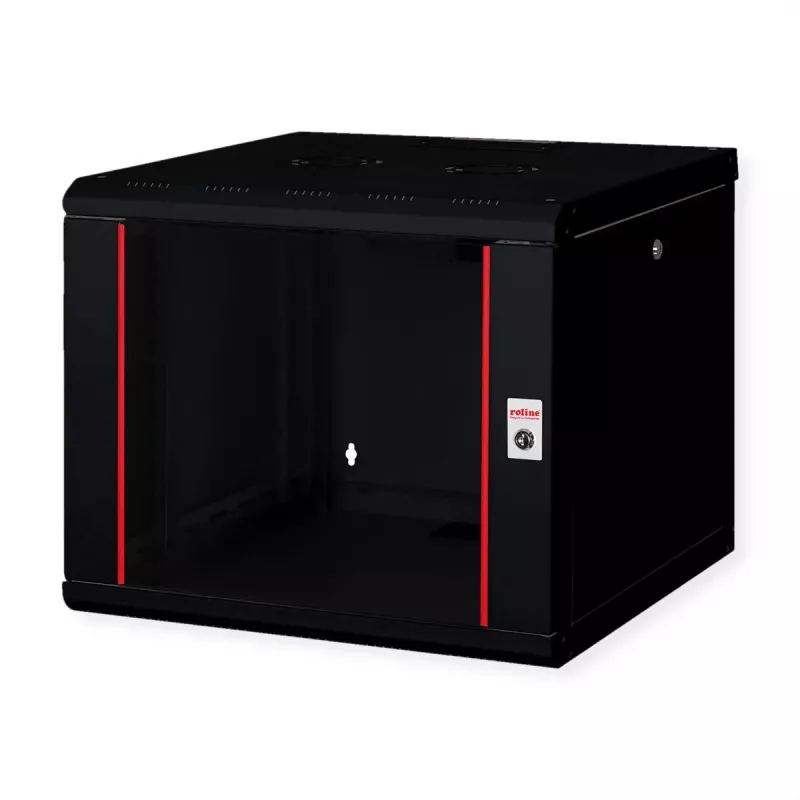

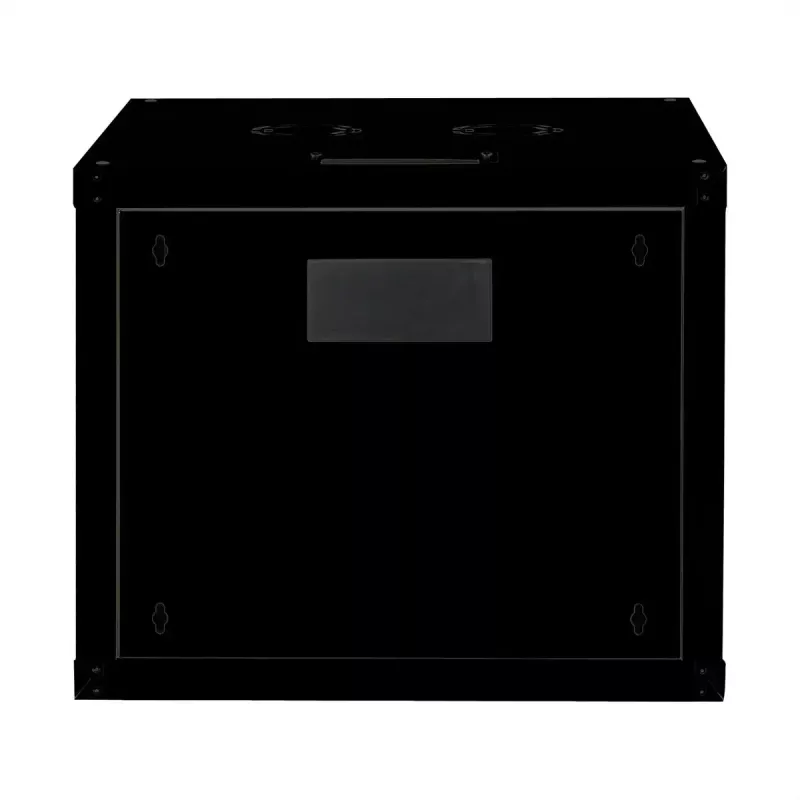

Armário de parede ROLINE 19 polegadas Pro 9HE, 600x600 LxP, preto, fechadura com chave, IP20

ROLINE 19-inch wall-mounted rack Pro 9U, 600x600 WxD in black is a compact enclosure for mounting network and server equipment in small server rooms, offices or network cabinets. It provides 9U of 19" mounting height, front rack rails and a keyed lock for basic physical security. The enclosure is constructed from robust steel with powder-coated finish and offers IP20 protection class.

Advantages

The Pro series cabinet combines a sturdy steel construction with adjustable depth rails and removable side panels and front door for improved accessibility during installation and maintenance. It includes multiple cable entry options — a slide-on inlet in the roof with foam seal, punched cable inlets on the rear panel and base plate with plastic covers — and a roof area prepared for an optional fan module. Wall mounting is simple using a two-step process, and optional levelling feet or castors allow conversion to a free-standing unit.

Suitable for

• Small server rooms and IT closets
• Office network distribution and patching points
• Deployments requiring a compact, lockable wall-mounted rack
• Environments where basic dust protection (IP20) is sufficient

When it may not be suitable

This 9U, 600×600 mm wall-mounted rack is not suitable where larger mounting heights or deeper equipment are required. It does not provide high ingress protection and is intended for indoor use in controlled environments rather than dusty or wet locations.

Key specifications

• Mounting height: 9U (483 mm 19" mounting standard)
• Dimensions (W×D): 600 × 600 mm
• Material: sheet steel, up to 1.5 mm thickness
• Finish: powder-coated, black (RAL 9005)
• Protection class: IP20
• Front locking: keyed lock
• Adjustable, depth-adjustable 19" mounting rails (galvanised)
• Cable management: roof slide-on inlet with foam seal; punched cable inlets with plastic covers
• Side panels and front door: removable and lockable

How to use

Mount the rear panel to a suitable load-bearing wall using appropriate fasteners, then attach the enclosure to the fixed rear panel. Install equipment into the 19" front rails, which can be adjusted in depth to suit device outlines. Use the roof inlet and punched rear/base inlets for cable routing; fit cable covers where required. If additional ventilation is needed, install a fan module in the prepared roof area. For a free-standing setup, fit optional levelling feet or castors.

What to consider before purchase

• Ensure 9U and 600×600 mm internal depth suit your equipment dimensions
• Verify wall construction and load-bearing capacity for secure mounting
• Confirm IP20 protection is adequate for your environment
• Check whether additional ventilation or cable management accessories are required

Recommendations

For reliable operation, mount heavy equipment as low as possible in the 9U rack, secure cables through the provided inlets, and maintain adequate airflow; consider adding a fan module if heat dissipation is a concern.
