Armário de parede ROLINE Pro 7U 19" 600x450 LxP, cinzento, IP20, fechadura com chave

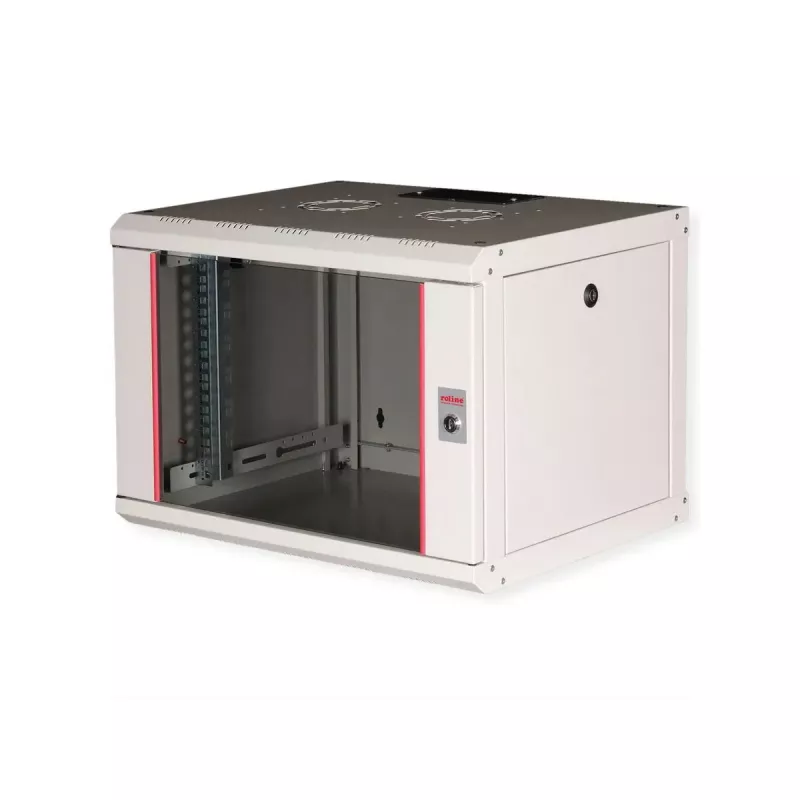

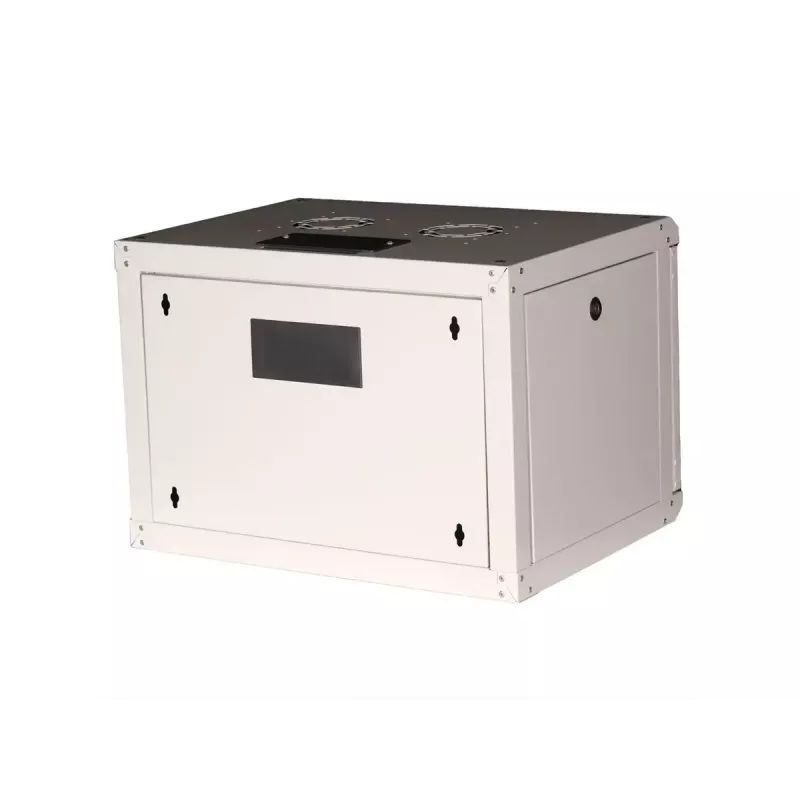

ROLINE Pro 7U is a 19-inch wall-mounted rack designed for network and server equipment. It offers 7U of standard rack space, adjustable 19" profile rails, and a compact usable depth and width of 600 x 450 mm. The enclosure features a lockable removable front door, detachable side panels for easy access, multiple cable inlets including a slide-on roof inlet with foam seal, and provisions for a fan module. The steel cabinet is powder-coated in grey (RAL 7035) and provides IP20 protection for indoor installations.

Advantages

The cabinet combines a robust steel construction with adjustable internal rails, enabling flexible mounting of patch panels, switches and small servers. Removable side panels and a detachable front door simplify installation and maintenance, while the key lock adds basic physical security. Roof and rear cable inlets with seals and covers help organise cabling and reduce dust ingress. The design allows quick wall mounting by fastening the rear panel first and then attaching the housing, and the unit can be converted to a free-standing cabinet using optional leveling feet or castors.

Suitable for

• Small server rooms and network closets
• Office network installations and VoIP/telecom equipment
• Patch panels, switches, routers and compact 19" devices

When it may not be suitable

This 7U wall-mounted rack is not intended for large, heavy server deployments or for equipment that requires extensive ventilation or high airflow; the 600 x 450 mm usable depth limits very deep devices. It also provides only basic physical security and IP20 protection, so it is not suitable for harsh environments or locations requiring higher ingress protection or advanced locking systems.

Key specifications

• Form factor: 19-inch wall-mounted rack
• Usable height: 7U (483 mm standard rack spacing)
• Usable internal dimensions (WxD): 600 x 450 mm
• Material: sheet steel (up to 1.5 mm thick), powder-coated
• Colour: grey (RAL 7035)
• Protection rating: IP20

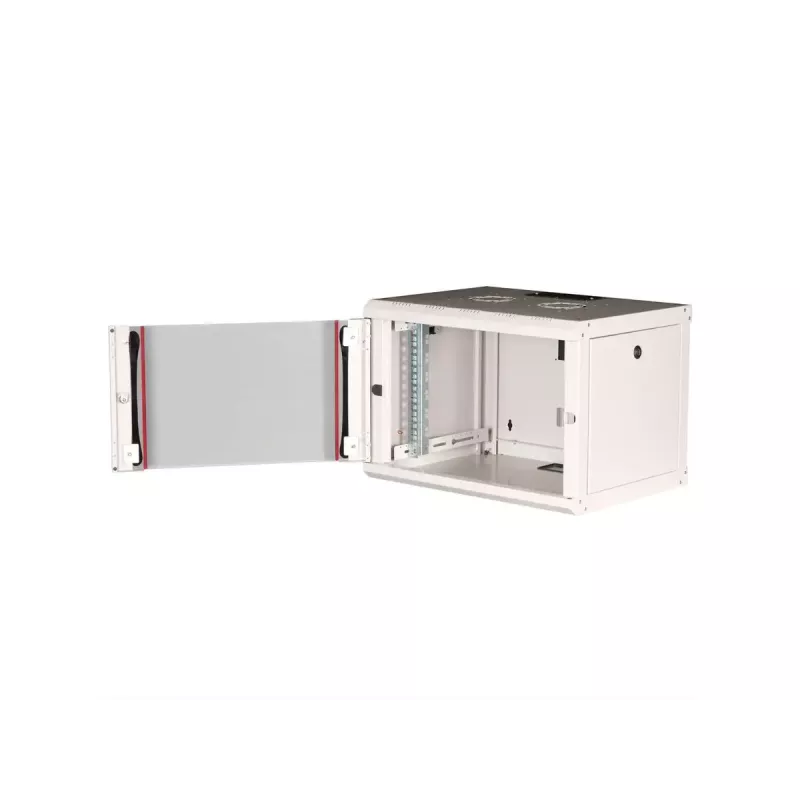

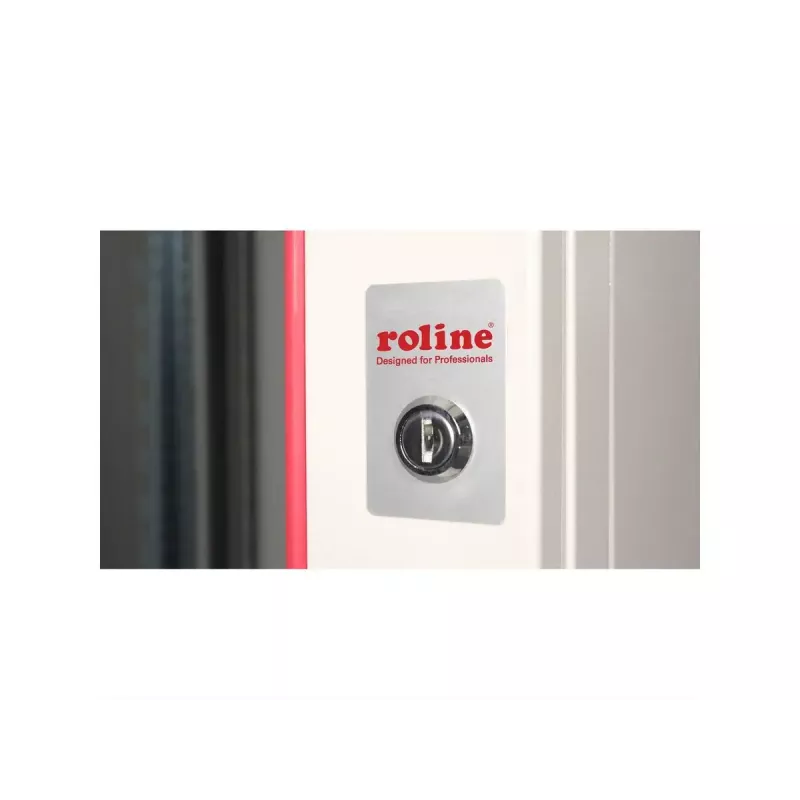

• Front door: removable, lockable (key lock)

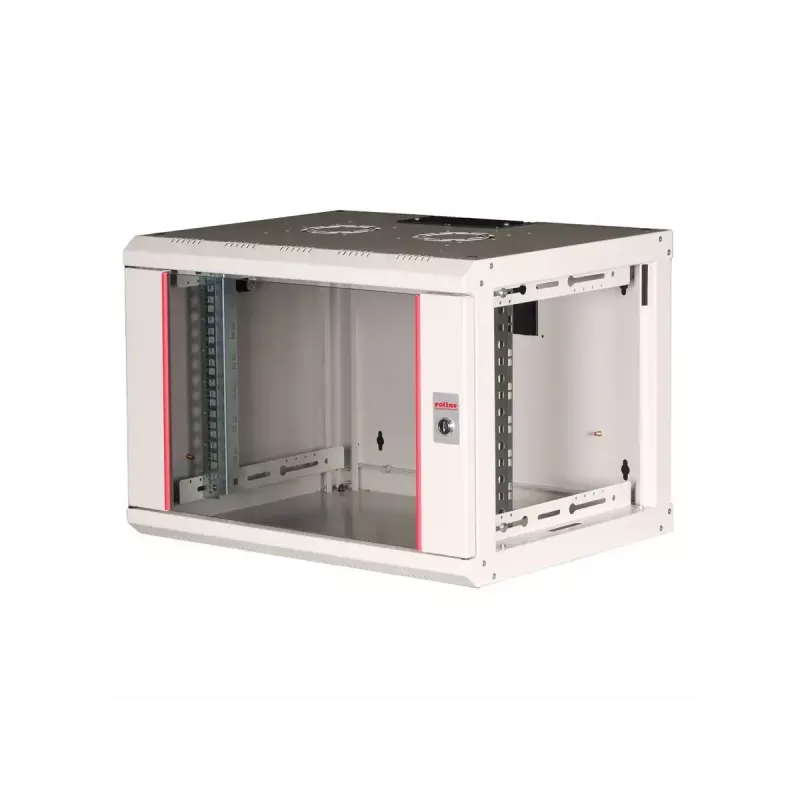

• Side panels: removable and lockable
• Cable management: slide-on roof inlet with foam seal, punched rear/base inlets with plastic covers
• Internal rails: galvanised 19" profile rails, height 483 mm, depth-adjustable
• Roof: punched area for optional fan module

How to use

Mount the rear panel to a solid wall using suitable anchors and screws, then hang and secure the enclosure onto the rear panel. Install the adjustable 19" rails to the required depth and mount network devices, patch panels and cable managers into the 7U space. Route cables through the roof inlet or punched rear/base inlets and seal with the provided foam and plastic covers. Use the removable side panels and front door to access equipment for installation or maintenance. If a floor-standing setup is needed, fit optional leveling feet or castors before placing equipment inside.

What to consider before purchase

• Ensure 7U (483 mm) mounting space is enough for your planned equipment
• Check that 600 x 450 mm usable depth accommodates device depth including cable slack
• Confirm IP20 and basic key lock meet your security and environmental requirements
• Verify wall strength and available mounting points for secure installation

Recommendations

Install lighter equipment and passive components (patch panels, small switches) in the upper bays and keep heavier items low. Reserve the roof area for ventilation accessories if active cooling is required, and maintain clear cable paths through the sealed inlets to preserve IP20 protection and tidy cable management.
