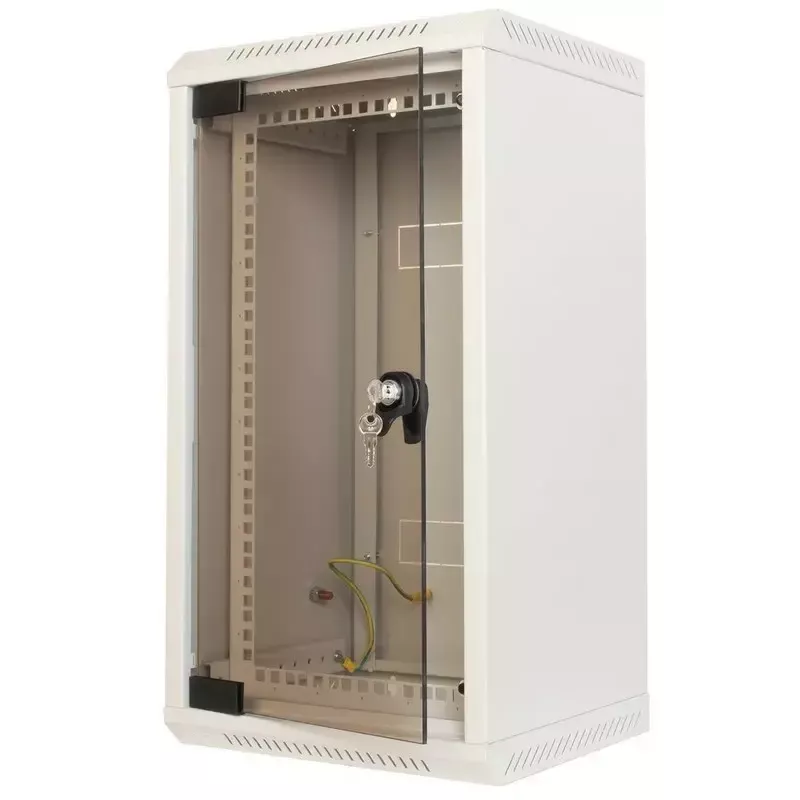

Armário de parede Triton RKA-10-AS3-CAX-X1 — aço inoxidável, carga máxima 20 kg, peso 11,4 kg

Triton RKA-10-AS3-CAX-X1 is a wall-mounted rack cabinet made of stainless steel, designed for light network and equipment installations where corrosion resistance is required. The hybrid cabinet supports mounting of 10" equipment up to 10U or vertically mounted 19" devices up to 5U, providing flexibility to transition between 10" and 19" technologies while keeping a compact footprint. The welded construction and integrated hinge system ensure stable installation and convenient access. Perforations in the top and bottom panels enable passive cooling of installed components. The mounting frame can be adjusted across eight pre-prepared depth positions and the cabinet comes with a glass door by default, with options for sheet or perforated doors.

Advantages

The stainless steel construction offers enhanced corrosion resistance and mechanical durability for installations in offices, server closets or telecom environments. Hybrid compatibility with both 10" (up to 10U) and vertically mounted 19" (up to 5U) equipment enables reuse of existing infrastructure and gradual technology migration. Compact wall-mounted design saves floor space and allows installation inside furniture or small cabinets. Perforated top and bottom panels and adjustable mounting frame improve airflow and enable optimal positioning of active equipment. Breakout-type blanking panels at top, bottom and rear simplify cable routing while maintaining a neat appearance.

Suitable for

• Small office/home office (SOHO) network closets and telecom cabinets
• Mounting of switches, patch panels and small rack-mount servers or appliances
• Environments requiring corrosion-resistant enclosures such as coastal or industrial sites
• Installations where space is limited or wall mounting is preferred

Key specifications

• Material: stainless steel for corrosion resistance and rigidity
• Maximum load capacity: 20 kg
• Net weight: 11.4 kg
• Height configurations: supports up to 10U in 10" mounting or up to 5U for vertical 19" mounting
• Adjustable mounting frame: 8 pre-prepared depth positions inside the cabinet
• Door: standard glass door (alternatively sheet or perforated door available)
• Cooling: top and bottom perforations for passive airflow
• Cable management: breakout-type blanking panels at top, bottom and rear for cable entry and routing
• Installation: wall-mounted form factor to save floor space

How to use

Mount the cabinet on a suitable wall surface that can support the combined weight of the cabinet and installed equipment. Select the mounting frame position from the eight pre-prepared depth settings to match the depth of your devices, and install 10" or vertically mounted 19" equipment according to the chosen configuration (up to 10U or up to 5U respectively). Route cables through the breakout-type blanking panels in the top, bottom or rear of the cabinet and secure them to prevent strain on connectors. Ensure adequate space around the cabinet for cable access and ventilation. If required, replace the standard glass door with a sheet or perforated variant before final installation.

Recommendations

To maintain performance and safety, avoid exceeding the 20 kg maximum load, distribute weight evenly across rack units, and allow unobstructed airflow through the top and bottom perforations. For installations in corrosive environments, verify periodic inspection and cleaning to preserve the stainless steel finish. Use appropriate wall anchors and fasteners rated for the combined load and local wall material.
