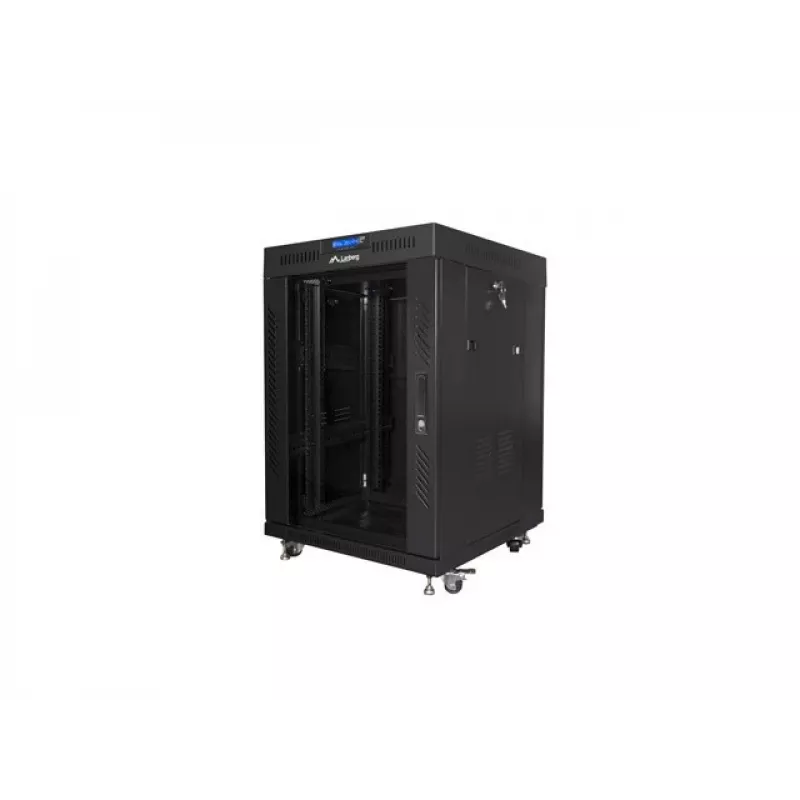

Armário Lanberg FF01-6615-12BL

Freestanding rack Lanberg FF01-6615-12BL is a 15U 19" cabinet designed for installation of network cabling and equipment with a maximum load capacity of 800 kg. Constructed from high-grade cold-rolled steel and finished in black, the cabinet is intended for indoor use (IP20) in networks, server rooms, small and medium businesses or data centers and supports low-voltage systems such as cable TV, alarm, fire protection, access control, CCTV and IP surveillance.

Advantages

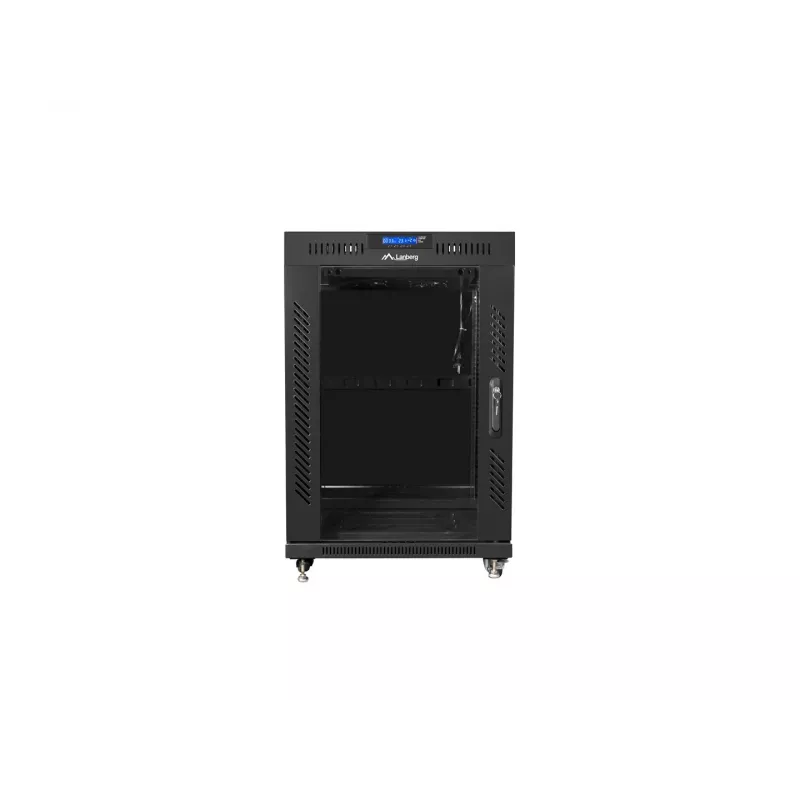

The cabinet features an adjustable depth vertical mounting rail system, a tempered glass front door with lock and reversible door mounting (right or left), removable side panels with locks and a solid rear steel door with lock. It includes an LCD display on the front for monitoring basic parameters (temperature inside the cabinet, current time and fan status), two 230 V fans in a fan tray, castor wheels for mobility, adjustable feet for stability and comes with mounting accessories including M6 cage nuts and blank cable entry panels. The enclosure ships in three flat packs for easier transport and self-assembly.

Suitable for

• Server rooms and data centers
• Network closets in small and medium businesses
• Installation of switches, patch panels and 19" equipment
• Low-voltage systems: CCTV, IP surveillance, alarm and access control

Key specifications

• Rack capacity: 15U (19")
• Maximum load capacity: 800 kg
• Dimensions (H×W×D): 898 × 600 × 600 mm
• Maximum mounting depth: 520 mm
• IP rating: IP20 (indoor use)
• Product colour: Black

How to use

Assemble the cabinet from the three provided flat packs following the included instructions. Install vertical mounting rails at the required depth, secure equipment using M6 cage nuts and appropriate rack screws, and route cabling through the top and bottom blank entry panels. Mount the tempered glass front door on the preferred side (right or left) and attach side panels and the rear door. Connect the fan tray to a 230 V supply and monitor basic operating parameters via the front LCD display.

Recommendations

Place the cabinet on a level indoor surface and use the adjustable feet for final levelling; ensure adequate ventilation and do not exceed the 800 kg load rating. For optimal cable management, use the provided blank panels and plan cable entry from top or bottom as needed.
