Armário de rack de parede Equip Eco Mount 19'' EWM-09-5440-G

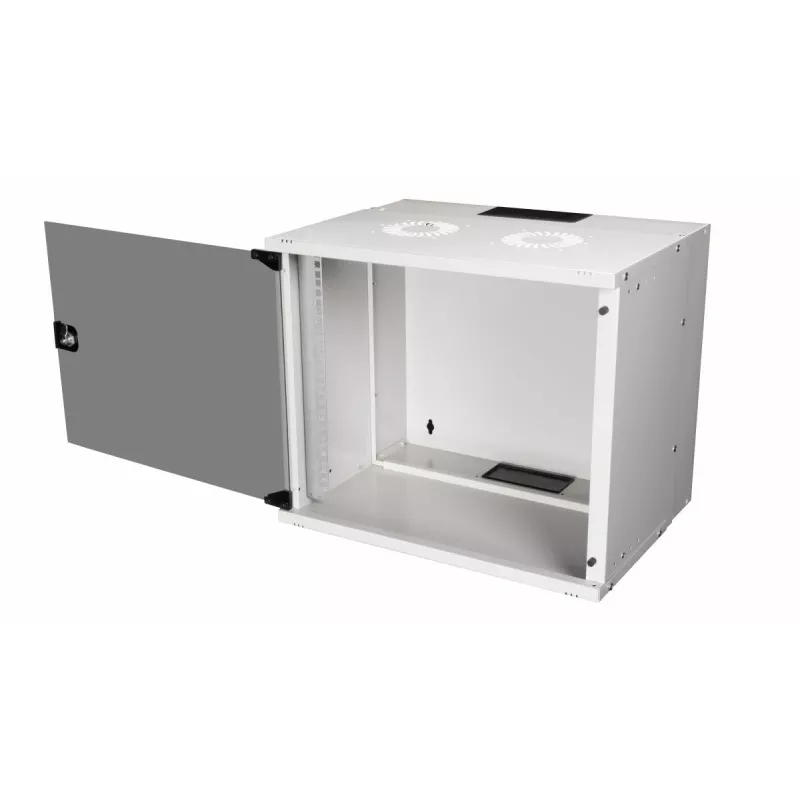

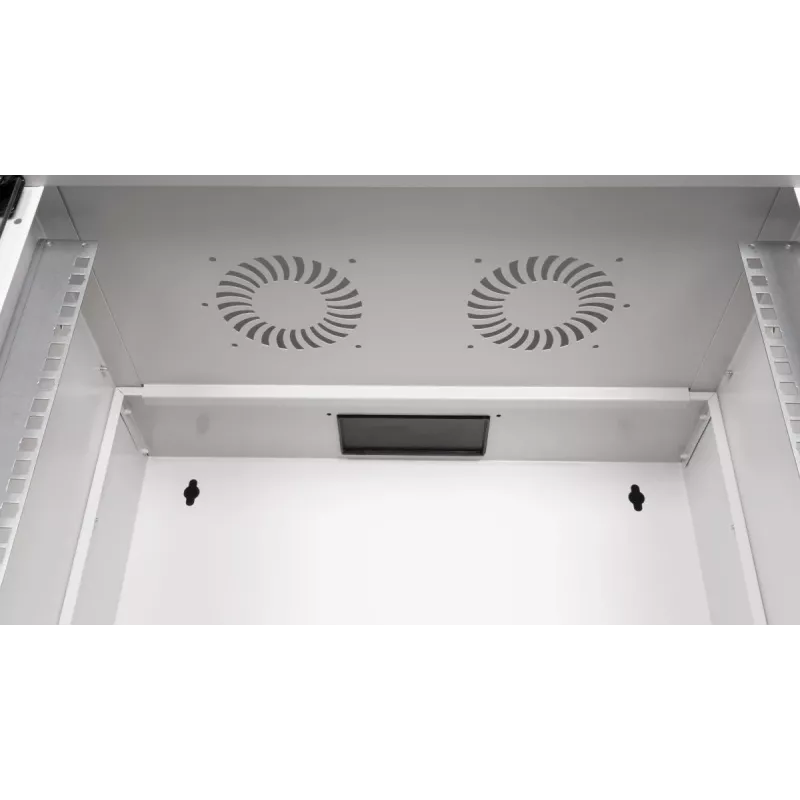

The Equip Eco Mount Wall Mount 19" Cabinet EWM-09-5440-G is a compact 9U wall-mounted rack designed for secure and space-efficient housing of network equipment. Constructed from 1.5 mm steel sheets and finished in light grey (RAL 7035), the cabinet measures 463 mm high, 174 mm wide and 400 mm deep, with a maximum mounting depth of 380 mm and a total weight of 10.3 kg. The front door is reversible (right-to-left) and the top features ventilation slots to support airflow. Cable entry points at the top and bottom are covered with removable plastic covers for neat and protected cable routing. The cabinet includes a key lock for security and is supplied unassembled with an instructional video for straightforward assembly.

Advantages

The Equip Eco Mount cabinet combines robust 1.5 mm steel construction with a compact 9U form factor to deliver reliable protection while saving wall space. Reversible door orientation and integrated ventilation slots increase installation flexibility and equipment cooling. Removable plastic covers on top and bottom cable entries simplify cable management and reduce mechanical stress on connections. Available in a standard 19" format and finished in light grey (RAL 7035), the cabinet fits professional network environments and smaller technical rooms.

Suitable for

• Small office or branch network equipment (routers, switches, patch panels)
• Server room extensions and edge deployments with limited space
• Telecommunications points and network distribution in technical rooms

Key specifications

• Model: EWM-09-5440-G
• Rack capacity: 9U
• Outer dimensions (H×W×D): 463 × 174 × 400 mm
• Maximum mounting depth: 380 mm
• Material thickness: 1.5 mm steel
• Weight: 10.3 kg
• Colour: Light grey (RAL 7035)
• Format: 19" wall-mounted

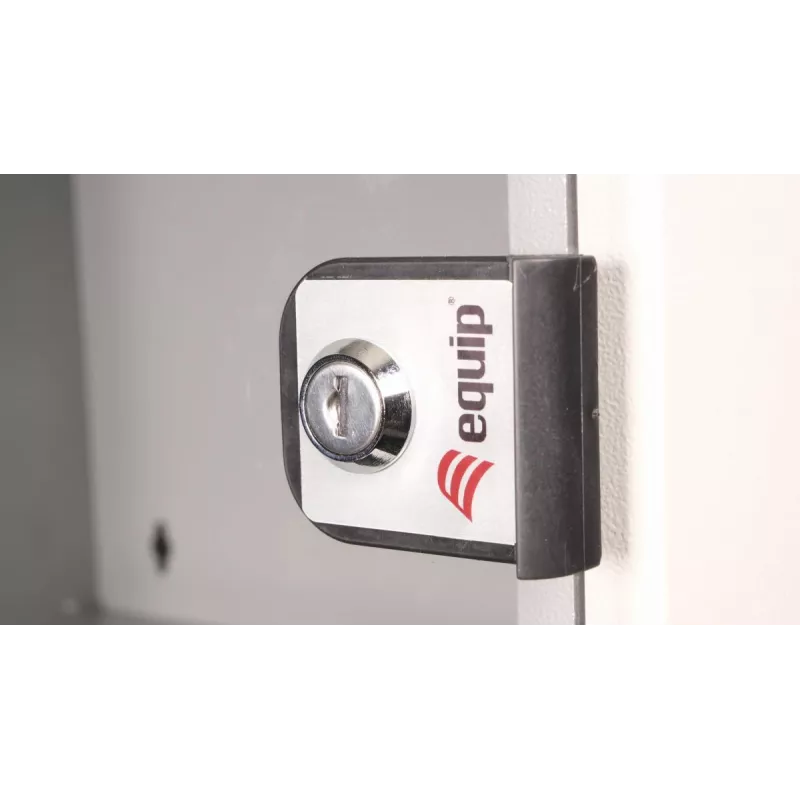

• Lock: Key lock on front door

How to use

Mount the cabinet on a suitable load-bearing wall using appropriate anchors and fasteners (not included), ensuring the wall can support the combined weight of the cabinet and installed equipment. Assemble the unit following the supplied instruction video, attach mounting rails to the desired depth (up to 380 mm) and, if required, change door orientation. Route cables through the top or bottom cable entries after removing the plastic covers, secure devices to the 19" rails, and close the door. Use the integrated ventilation slots to maintain passive airflow; do not block these openings.

Recommendations

For safe operation, install the cabinet on a solid vertical surface and distribute equipment weight evenly across the 9U space. Use appropriate cable management accessories and leave clearance around ventilation slots. Verify that the total load does not exceed wall fixings’ capacity and follow local installation standards.
