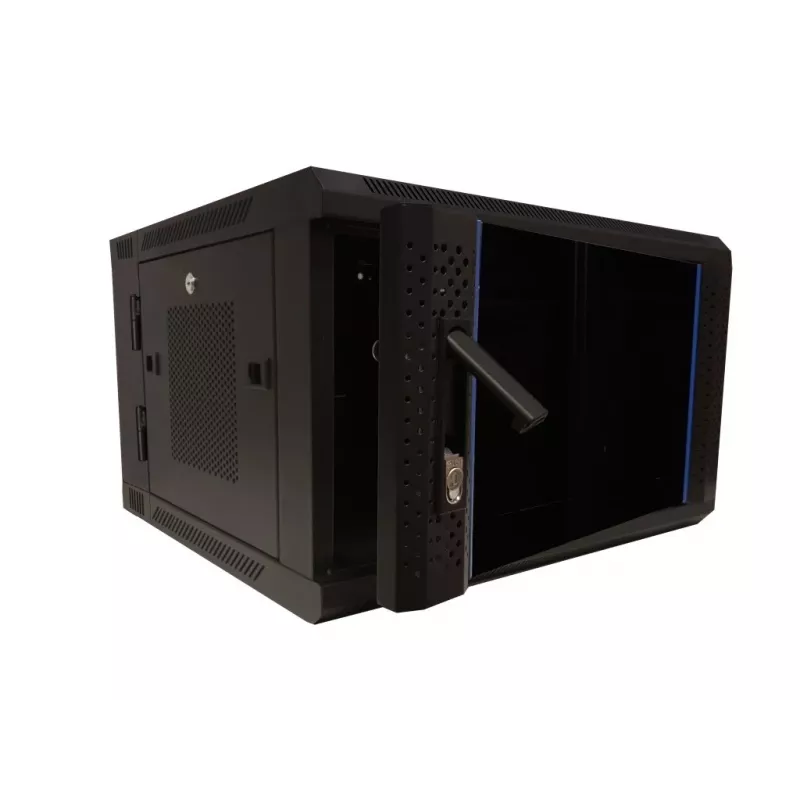

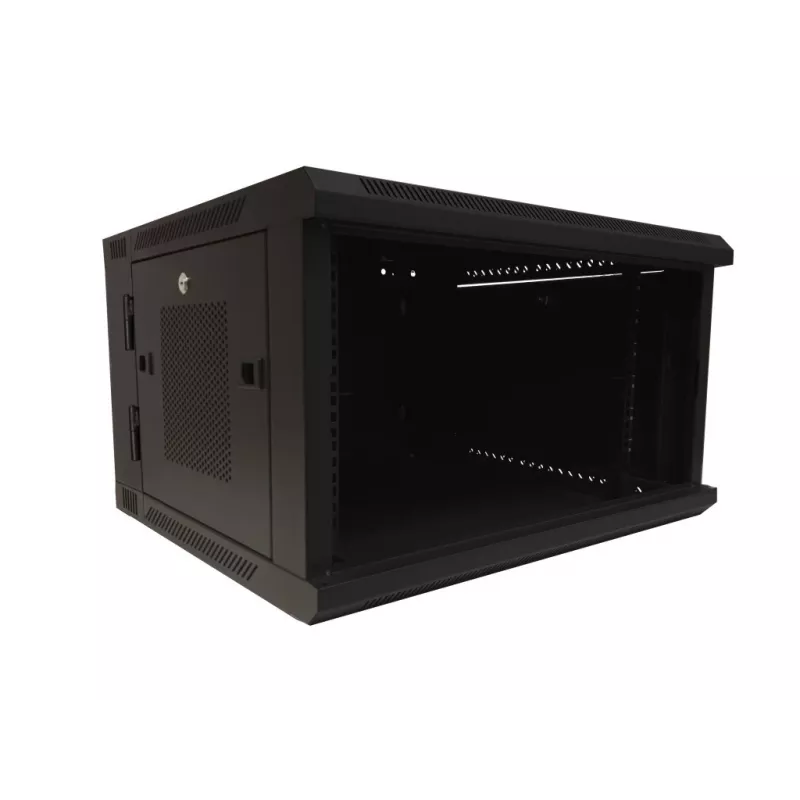

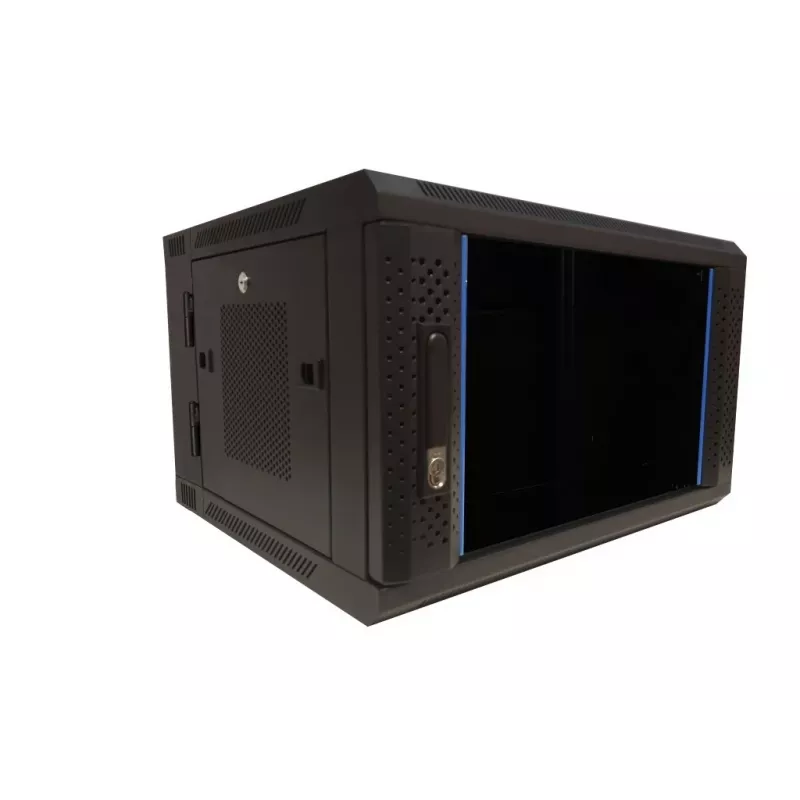

Armário de rede de parede DSIT DS6606ZP-DOUBLE 6U basculante com porta de vidro, 600x450x370 mm, preto

Unlike fixed wall-mount racks that force you to work blind, the DSIT DS6606ZP-DOUBLE swings open a full 180 degrees on its swivel frame, giving you unrestricted access to the rear of your equipment without unmounting the cabinet. This 6U enclosure combines a tempered glass front door, lockable removable side panels, and a rugged steel body to keep your network hardware secure, cool, and serviceable in tight spaces.

Highlights

• 6U 19-inch wall-mount cabinet with swiveling frame – opens 180° for easy rear access
• Lockable tempered glass front door and removable lockable side panels
• Solid SPCC cold-rolled steel construction with powder-coated black finish (RAL 9005)
• Passive ventilation with top and bottom cable entry brush strips; prepared for optional fan unit
• Adjustable front and rear mounting rails; 60 kg load capacity; IP20 protection

In daily use

Mount the DS6606ZP-DOUBLE on a wall in a small office, retail back room, or industrial enclosure. The swivel mechanism lets you swing the entire cabinet away from the wall to punch down cables, swap patch cords, or service devices without straining. The glass door lets you monitor indicator lights at a glance, while the lock keeps unauthorized hands off your switches, patch panels, and routers. Cable entry at top and bottom with brush strips keeps dust out and cabling tidy.

Full specifications

• Rack units: 6U
• Mounting type: wall-mounted, swiveling
• Standard: 19-inch
• External dimensions (W x D x H): 600 x 450 x 370 mm
• Front door: tempered glass, lockable, 180° opening
• Side panels: removable, lockable
• Material: SPCC cold-rolled steel
• Finish: powder coated, black (RAL 9005)
• Load capacity: 60 kg
• Cable entry: top and bottom with brush strips
• Ventilation: passive, prepared for optional fan unit
• Protection class: IP20

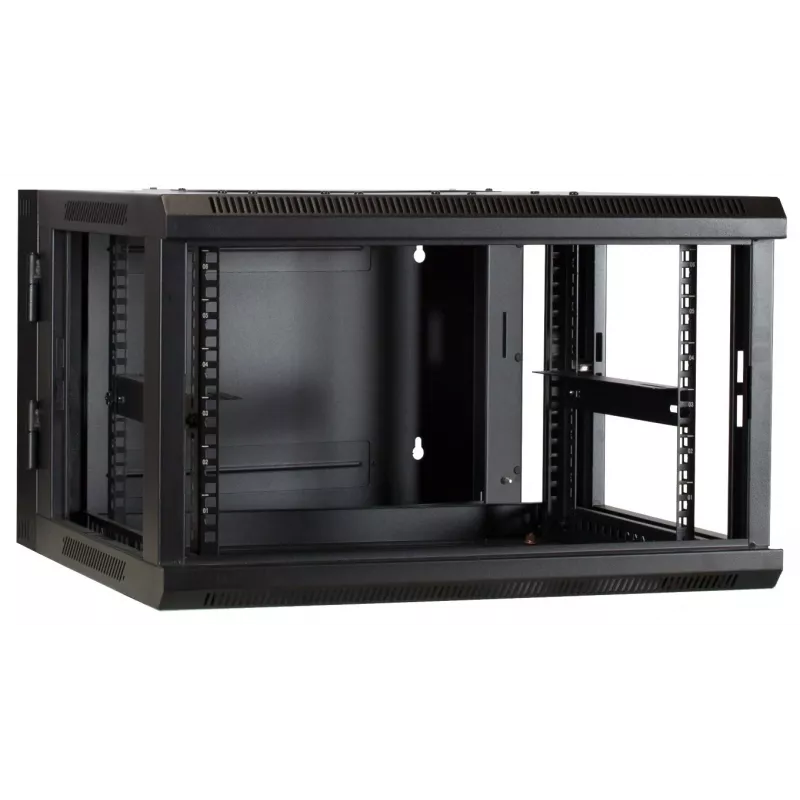

• Mounting rails: adjustable depth, front and rear
• Assembly: pre-assembled
• Included accessories: 2 keys for front door, 2 keys for side panels, mounting hardware

Final note

For installations where every inch matters and service access is a challenge, the DSIT DS6606ZP-DOUBLE delivers a secure, swiveling solution that keeps your network equipment protected and reachable.
