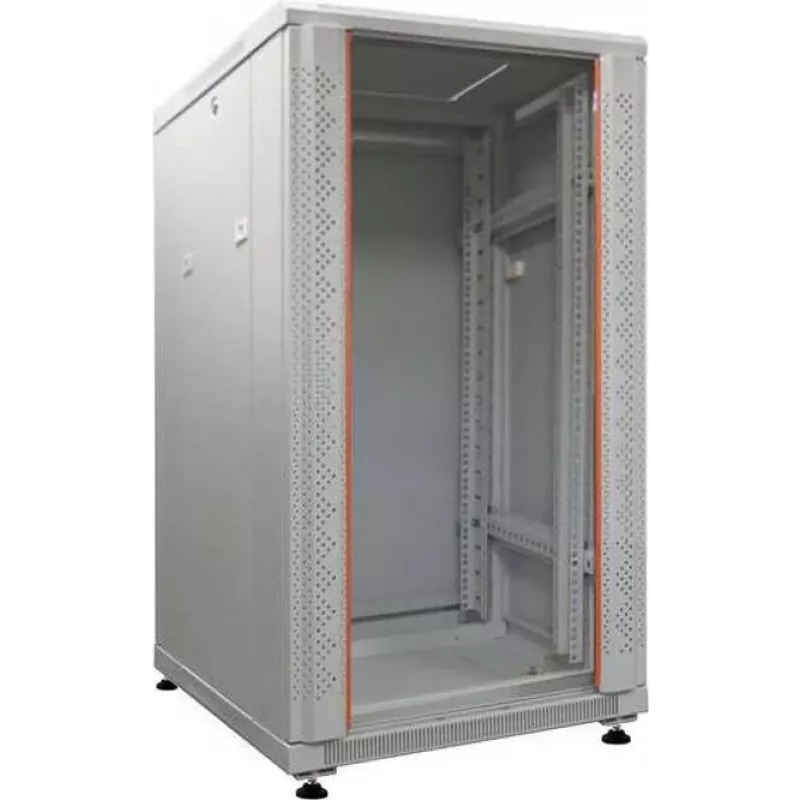

Armário de rede IT-BUDGET 19 polegadas SRK, 18U, 600x600 mm, porta de vidro/aço, Flatpack, cinzento claro 90ITB19SRK1866GGN

The IT-BUDGET SRK 18U cabinet stands out with its flatpack delivery, allowing cost-effective shipping and easy on-site assembly without compromising structural integrity. It provides 18 height units for 19-inch equipment in a compact 600x600 mm footprint, finished in light grey (RAL 7035).

Highlights

• 18U capacity for 19-inch rack-mount equipment
• Lockable tempered glass front door and solid steel rear door
• Removable, lockable side panels for easy access
• Flatpack design for efficient transport and storage
• Depth-adjustable 19-inch profile rails
• Passive ventilation slots, prepared for fan units
• Adjustable leveling feet included
• Static load capacity: 800 kg

In daily use

The SRK cabinet offers a secure and organized environment for servers, network switches, and patch panels. The glass front door allows visual monitoring of equipment status LEDs, while the solid rear door and lockable side panels prevent unauthorized access. Cable entry is provided at the top and bottom with brush strips to maintain a clean installation. The depth-adjustable mounting rails accommodate various equipment depths, and the adjustable feet ensure stability on uneven floors.

Full specifications

• Rack units: 18U
• Rack standard: 19-inch
• External dimensions (W x D x H): 600 x 600 x 930 mm
• Usable depth: approx. 480 mm
• Colour: Light Grey (RAL 7035)
• Front door: tempered glass, lockable
• Rear door: solid steel, lockable
• Side panels: removable, lockable
• Material: steel sheet, powder-coated
• Static load capacity: 800 kg
• Protection class: IP20
• Cable entry: top and bottom with brush strips
• Mounting rails: 4x 19-inch profile rails, depth-adjustable
• Ventilation: passive ventilation slots, prepared for fan units
• Feet: adjustable leveling feet included
• Construction: flatpack (unassembled delivery)

Final note

A practical 18U rack cabinet with a glass front door for visibility and a solid rear door for security, delivered flatpacked for economical logistics.
