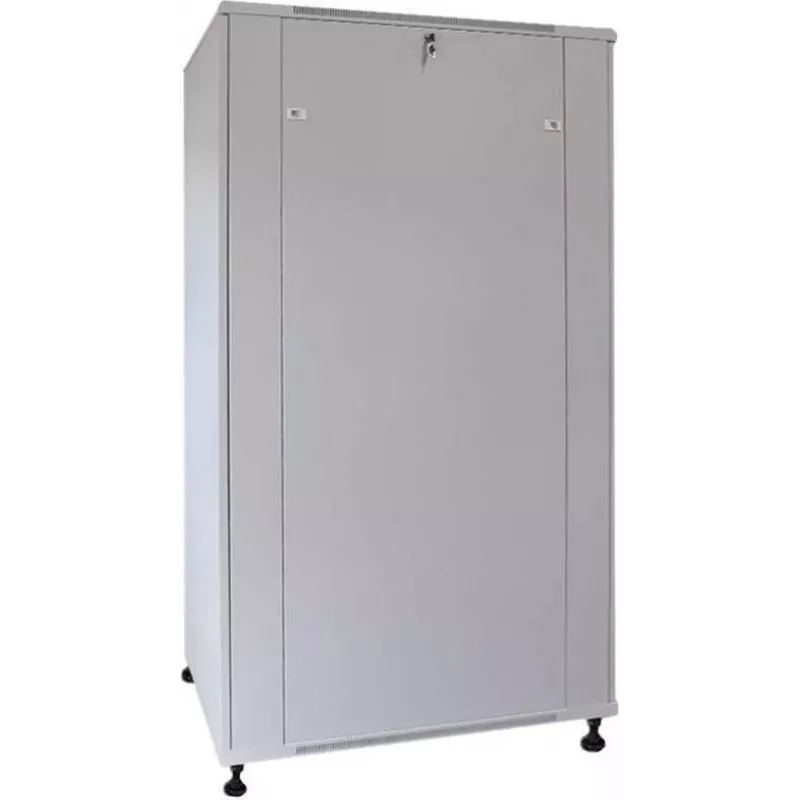

Armário de rede IT-BUDGET 19 polegadas SRK - 22U - 600x800 mm - porta de vidro/maciça - Flatpack - cinzento claro 90ITB19SRK2268GGN

This 22U freestanding 19" network cabinet offers a generous 800 mm depth for high-density patching and deep equipment. The light grey (RAL 7035) steel enclosure features a glass front door and solid rear door, both lockable, with removable side panels for easy access.

Overview

The IT-BUDGET SRK series is a flatpack cabinet, delivered disassembled for efficient transport and self-assembly. It accommodates standard 19-inch rack equipment with adjustable front and rear mounting rails. Cable entry is provided at the top and bottom, and passive ventilation ensures airflow. The cabinet includes levelling feet, castors, and cage nuts for installation flexibility.

What stands out

• 22U height with 600 mm width and 800 mm depth

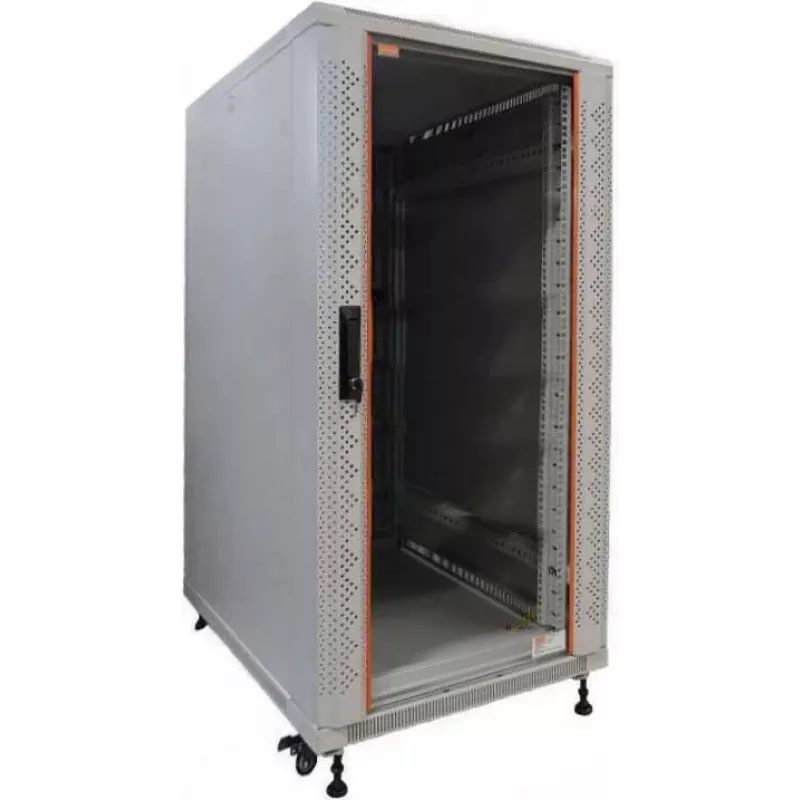

• Lockable glass front door and solid steel rear door
• Removable, lockable side panels
• Flatpack design for cost-effective shipping
• Adjustable 19" mounting rails front and rear
• Top and bottom cable entry
• Passive ventilation
• Includes levelling feet, castors, and cage nuts

Technical details

• Rack units: 22U
• External dimensions (W x D x H): 600 x 800 x 1166 mm
• Material: Steel
• Colour: Light grey (RAL 7035)
• Front door: Glass, lockable
• Rear door: Solid steel, lockable
• Side panels: Removable, lockable
• Mounting rails: Adjustable, front and rear
• Cable entry: Top and bottom
• Ventilation: Passive
• Load capacity: Up to 800 kg
• Protection class: IP20
• Included accessories: Levelling feet, castors, cage nuts
• Assembly: Self-assembly required

Our verdict

A solid, secure 22U cabinet with a practical glass front door and deep 800 mm frame, ideal for server rooms and network installations.
