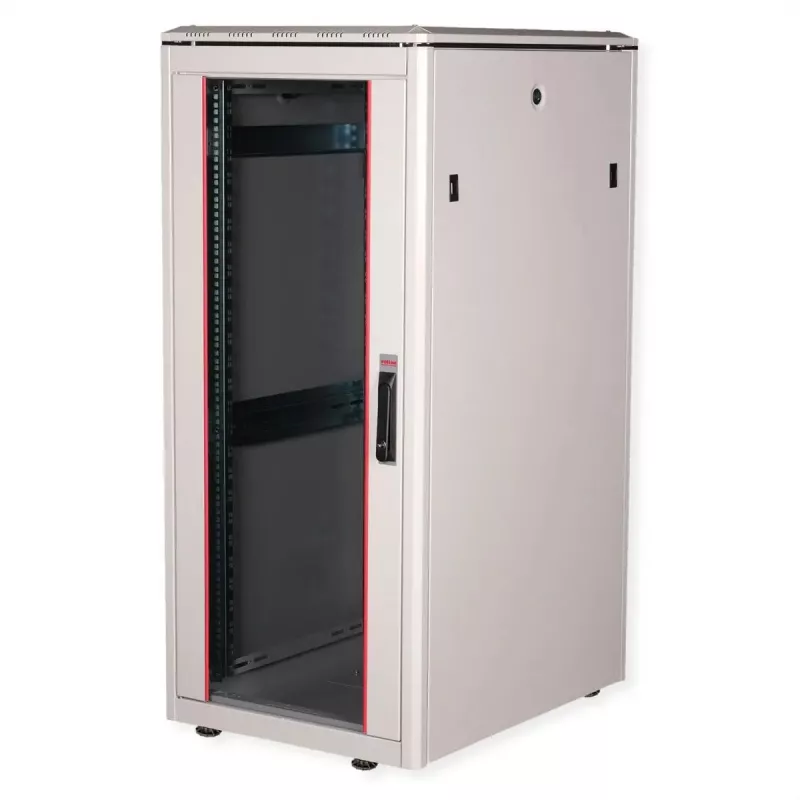

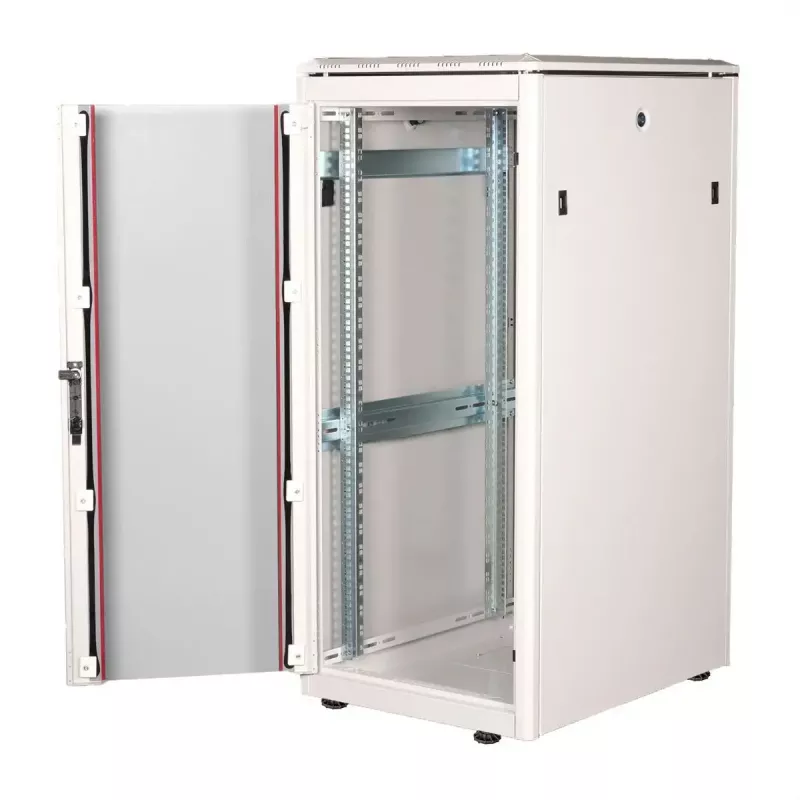

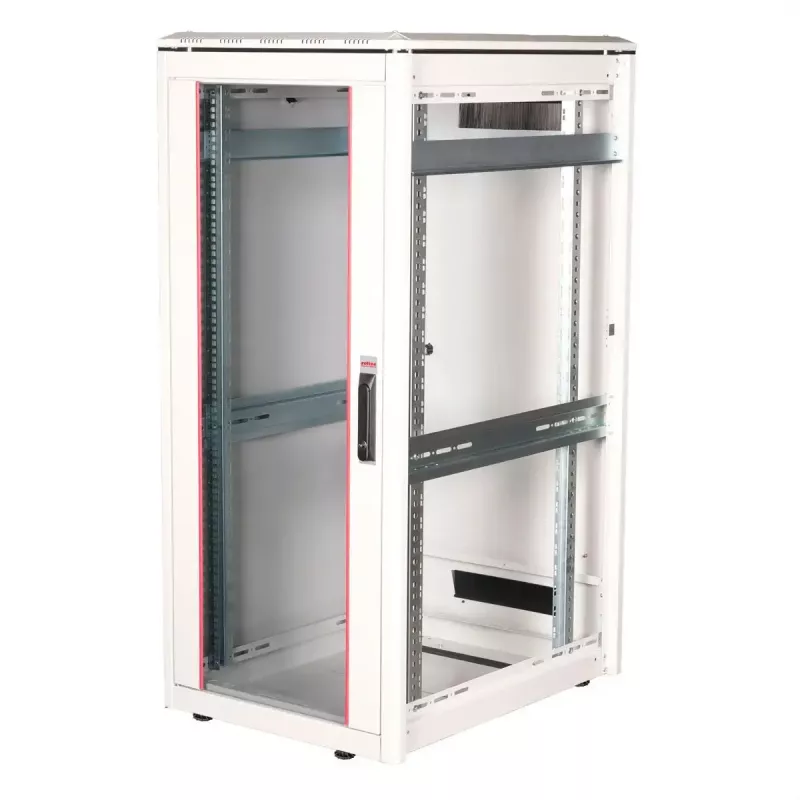

Armário de rede ROLINE 19 polegadas Pro 26U, 600x800 mm LxP, porta de vidro, cinzento, IP20, capacidade de carga 600 kg

The ROLINE 19-inch Network Cabinet Pro 26U (600x800 mm WxD) is a freestanding steel enclosure designed for server, network and telecom equipment. It offers 26U of usable rack space, a glass front door and removable side and rear panels for easy access. The cabinet has adjustable depth 19" profile rails, brush inlets for cable entry, ventilation provisions and a load capacity of up to 600 kg. The enclosure is finished with electrostatic powder coating in grey (RAL 7035) and provides IP20 protection for indoor installations.

Advantages

The cabinet combines robust construction with flexible cabling options: brush inlets in roof and base, a slide-in base inlet with foam seal and brush strips around the rear door improve cable management and dust protection. Adjustable, reversible 19" profile rails and additional depth struts support varied equipment depths. A stepped removable top cover with ventilation slots allows better airflow and easy fan module installation. Removable doors and side panels and the option to change the door hinge simplify installation and maintenance.

Suitable for

• Small to medium server rooms and data closets
• Network and telecom installations requiring 26U rack space
• Environments where structured cable entry and organization are needed
• Indoor IT rooms with IP20 protection requirements

When it may not be suitable

This cabinet is intended for indoor use with IP20 protection and is not suitable for outdoor or wet environments. If a higher ingress protection rating, active cooling beyond fan modules, or seismic certification is required, consider an alternative model designed for those conditions.

Key specifications

• Rack units: 26U
• External dimensions (WxD): 600 x 800 mm
• Material: steel sheet construction, up to 1.5 mm thickness
• Front door: glass
• Finish: electrostatic powder coating, grey (RAL 7035)
• Protection class: IP20 (indoor)
• Load capacity: up to 600 kg
• Cable entry: brush inlets in roof and base, slide-on base inlet with foam seal, brush strips at rear door
• Mounting: two pairs of galvanised adjustable 19" profile rails, reversible and adjustable in depth
• Ventilation: stepped removable top cover with ventilation slots; fan module installation possible
• Accessibility: removable front and rear doors, removable side panels, changeable door hinge; fully dismantlable

How to use

Place the freestanding cabinet on a stable, level indoor surface and adjust the feet for height and stability. Open the removable front and rear doors and side panels to install equipment on the 19" profile rails; adjust the rail depth to match device depth and secure devices with appropriate rack screws. Route cables through the brush inlets or the slide-on base inlet, using the vertical cable ducts and covers where available. Fit fans into the top cover ventilation openings if additional airflow is required. After installation, close and secure doors and panels to maintain IP20 protection and dust control.

What to consider before purchase

• Ensure 26U rack height and 600 x 800 mm footprint meet spatial and equipment requirements
• Verify devices fit within adjustable rail depth and that combined weight does not exceed 600 kg
• Confirm IP20 (indoor) protection is adequate for your environment
• Decide whether a glass front door and removable panels suit security and access needs

Recommendations

For stable operation, distribute equipment weight evenly across the rails, plan cable routes using the brush inlets and vertical ducts, and provide adequate ventilation by using the top cover slots and optional fan modules when installing heat-generating devices.
