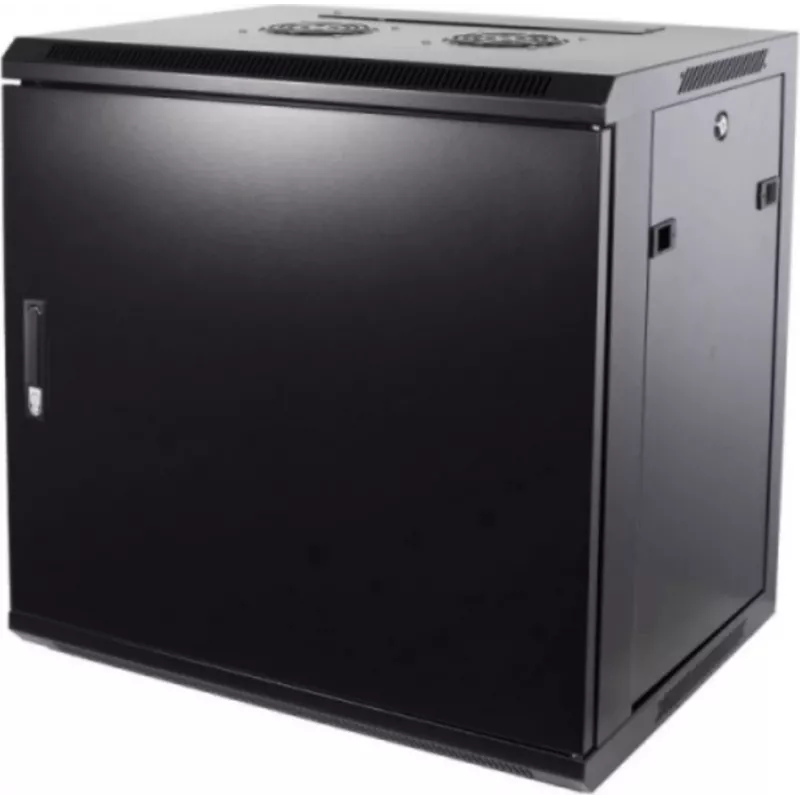

Armário de servidor de parede DSIT DS6409M 9U 600x450x500 mm com porta metálica

The DSIT DS6409M stands apart from typical wall cabinets by combining a robust 9U capacity with a compact 600 x 450 mm footprint—ideal for tight spaces where every millimetre counts. Its welded SPCC steel frame and lockable metal door deliver security without sacrificing accessibility, making it a reliable choice for small business networks, branch offices, or industrial IT enclosures.

Highlights

• 9U rack space for 19-inch equipment, with adjustable front and rear mounting rails to accommodate varying depths.
• Solid metal front door with key lock and 180° opening angle for easy equipment access and security.
• Removable side panels and top/bottom cable knockouts simplify installation and cable management.
• Durable powder-coated steel construction (RAL 9005 black) with passive ventilation to maintain airflow.
• Includes wall mounting hardware and two keys for immediate deployment.

In daily use

Mount the DS6409M securely to the wall using the included hardware, then install switches, patch panels, or small servers. The adjustable rails let you fine-tune mounting depth, while the removable sides allow quick access during setup. Cable entry from top or bottom keeps wiring tidy, and the lockable door prevents unauthorised access—essential in shared or semi-public areas.

Full specifications

• Rack capacity: 9U
• External dimensions (W x D x H): 600 x 450 x 500 mm
• Rack standard: 19-inch
• Material: SPCC cold rolled steel
• Finish: Powder coated, black (RAL 9005)
• Front door: Solid metal, lockable, 180° opening
• Side panels: Removable
• Cable entry: Top and bottom with knockouts
• Mounting rails: Adjustable, front and rear
• Ventilation: Passive (vents)
• Included accessories: 2 keys, wall mounting hardware
• Application: Networking, IT, telecommunications

Final note

For installations where space is at a premium but security and organisation are non-negotiable, the DSIT DS6409M delivers a practical, no-frills enclosure that gets the job done.
