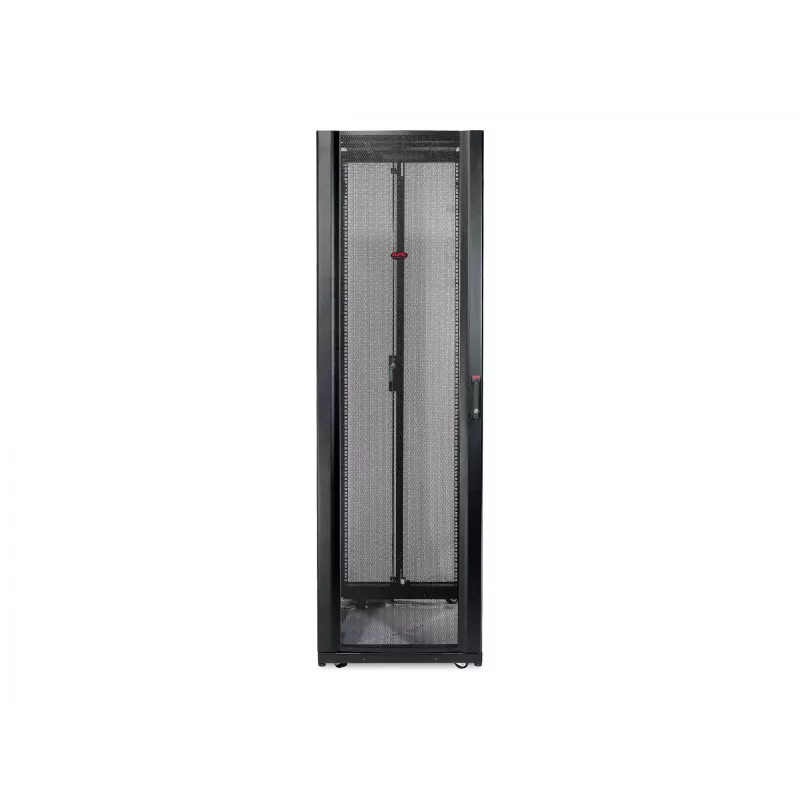

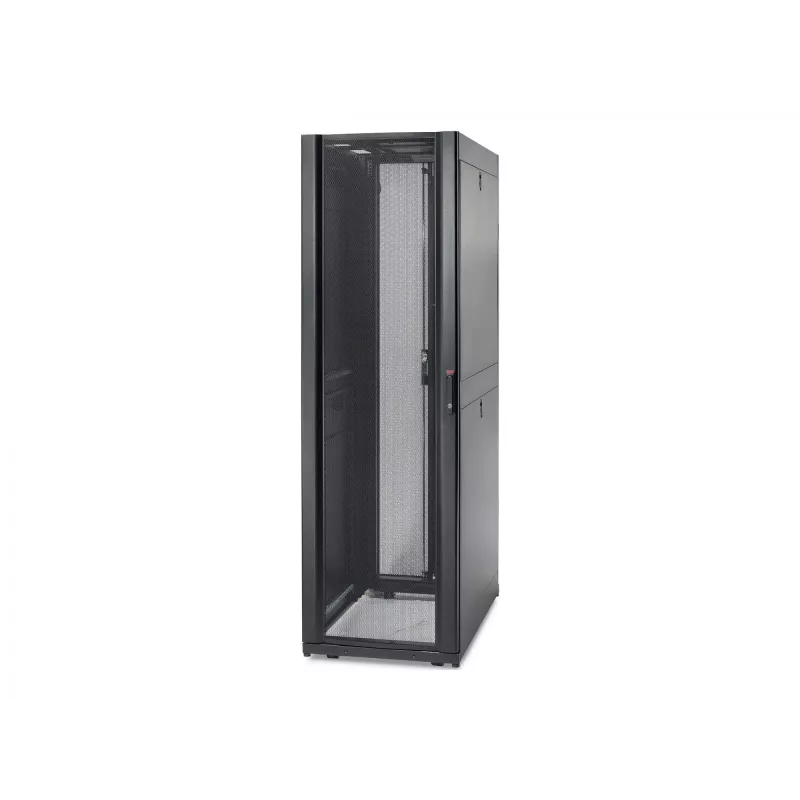

Armário rack autónomo APC NetShelter SX 48U 600mm L x 1070mm P, capacidade de carga 1704 kg, preto

APC NetShelter SX freestanding rack enclosure with 48U of usable rack space and compact 600 mm width, designed for installation of servers, network and telecom equipment in data centres and IT rooms. The enclosure measures 2258 mm (H) × 600 mm (W) × 1070 mm (D), has a maximum load capacity of 1704 kg and supports mounting depths up to 915 mm. Constructed from steel in black finish and weighing 138.23 kg, it is intended for low to medium density server and networking applications where floor space optimisation is important.

Advantages

The NetShelter SX offers a 48U capacity in a narrow 600 mm footprint to maximise usable floor space while accommodating standard 19" equipment. Its steel construction provides high static load capacity (1704 kg) and robust physical protection, and the 915 mm mounting depth supports a wide range of rack-mount servers and networking devices. External dimensions and compact design simplify planning and integration in data centre racks and IT rooms.

Suitable for

• Server installations with low to medium density
• Network switches, routers and patch panels
• Telecom equipment and rack-mount appliances
• Data centres and IT rooms with limited width space

Key specifications

• Rack capacity: 48U
• External height: 2258 mm
• External width: 600 mm
• External depth: 1070 mm
• Maximum mounting depth: 915 mm
• Maximum load capacity: 1704 kg
• Product colour: Black
• Weight: 138.23 kg
• Rack size: 19"

How to use

Position the enclosure on a level floor in the intended data centre or IT room location and secure it according to site guidelines. Install 19" rack-mount equipment using the front and rear mounting rails, observing the maximum mounting depth of 915 mm and evenly distributing weight to remain within the 1704 kg capacity. Ensure proper cable management and ventilation clearances when placing servers and networking devices to maintain airflow and service access.

Recommendations

Verify rack-mount equipment depth and weight prior to installation, plan for cable routing and cooling, and follow APC installation instructions and local safety requirements to ensure stable, safe operation.
