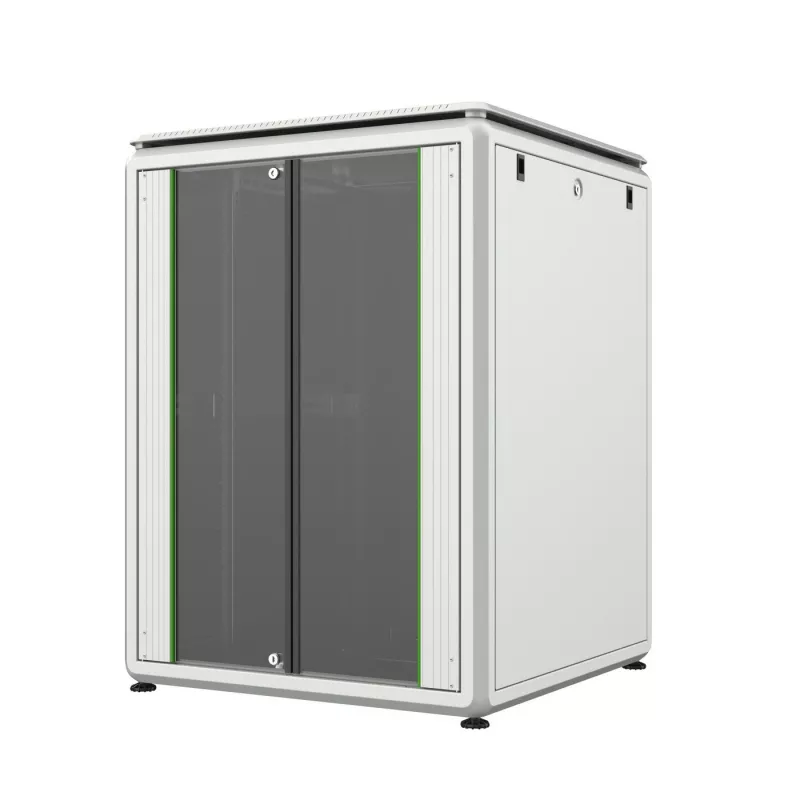

Armário rack Lanview RDL20U88WH 20U branco 600 kg IP20

The Lanview RDL20U88WH is a free-standing 20U rack cabinet with dimensions W:800 x D:800 x H:1075 mm, designed for indoor network and server installations. It supports a maximum static load of 600 kg, has an IP20 protection rating and comes in a white finish. The cabinet is supplied in a flatpack option for space-efficient transport and storage and is built from robust sheet-metal parts with adjustable installation rails to accommodate varying equipment depths.

Advantages

The cabinet combines a strong, modular construction with easy assembly using simple tools. Adjustable installation rails and a wide accessories range enable flexible equipment mounting. Cable entry points with rubber-edged sliding modules and tire-up structured side brackets simplify cable routing and protect cables from damage. Front and side panels include locking mechanisms for security, while the removable rear door and split side panels on taller variants allow easier access during installation and maintenance.

Suitable for

• Small and medium office network closets
• Server and communication equipment housing
• Patch panels, switches and rack-mountable UPS units
• Environments requiring IP20 indoor protection

Key specifications

• Model: Lanview RDL20U88WH (MPN: RDL20U88WH, EAN: 5420016845849)
• Rack capacity: 20U
• Dimensions (W x D x H): 800 x 800 x 1075 mm
• Maximum static load: 600 kg
• Weight: 43 kg
• Protection rating: IP20
• Colour: White
• Size: 19" rack compatible

How to use

Unpack the flatpack components and assemble the cabinet following the supplied instructions. Fit and adjust the installation rails to the required depth for your equipment, then mount rack gear such as servers, switches or patch panels using standard 19" mounting hardware. Route network and power cables through the wide bottom cable entry and the rubber-edged sliding module to protect cables and maintain dust protection. Lock front and side panels as needed for physical security.

Recommendations

Place the cabinet on a level indoor surface with sufficient ventilation space. Distribute equipment weight evenly and use the specified maximum load of 600 kg. For optimal cable management, use compatible vertical cable manager modules and secure cables with the provided tire-up side brackets.
