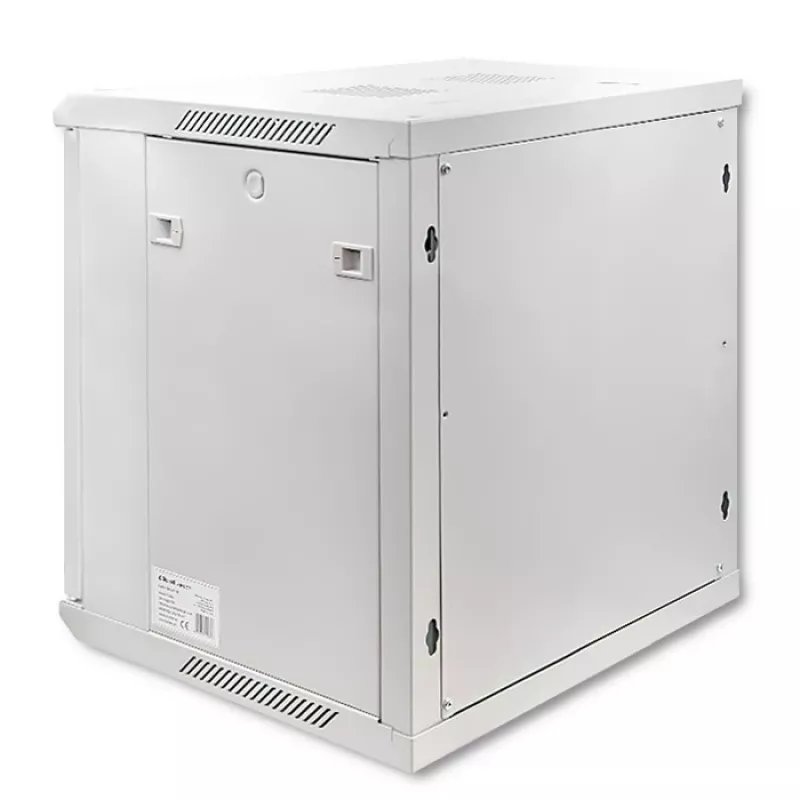

Armário rack QOLTEC 19 polegadas 12U modelo 54485 — caixa de rede/servidor

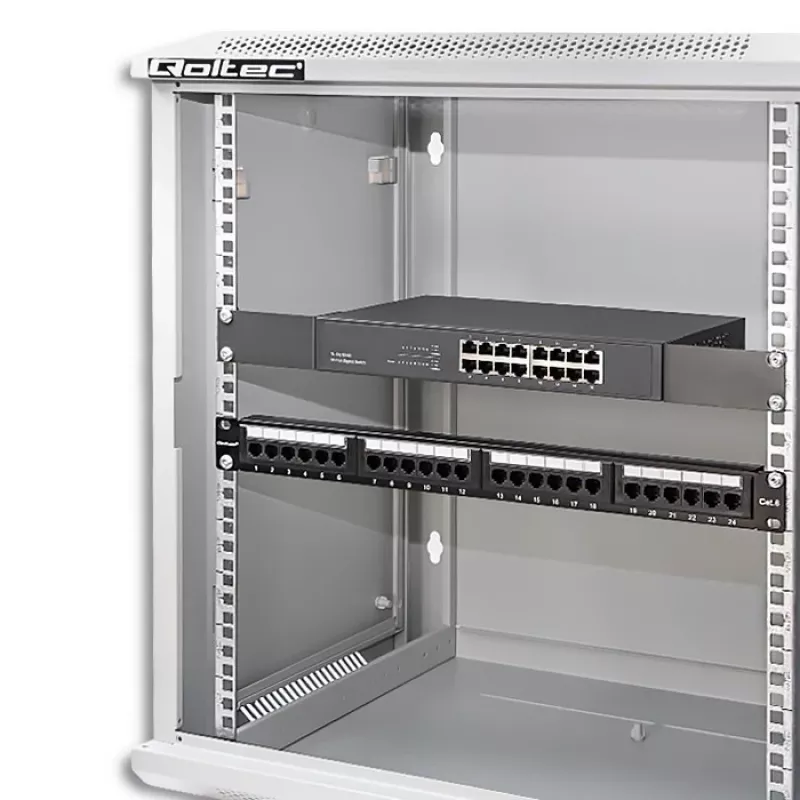

Unmanaged network equipment scattered across desks and shelves creates cable clutter, blocks airflow, and leaves sensitive gear exposed to accidental damage. The QOLTEC 54485 19-inch 12U wall-mount rack cabinet solves this by consolidating switches, patch panels, routers, and small servers into one secure, organized enclosure. Its 12U capacity is ideal for branch offices, telecom closets, and compact server rooms where floor space is limited but reliability is non-negotiable.

Who is it for

IT administrators and installers who need a space-efficient, standards-compliant enclosure for small network or server deployments. Perfect for edge computing, retail back offices, and industrial control rooms where equipment must be protected yet easily accessible.

Main features

• 19-inch standard mounting with 12U usable vertical space
• Wall-mountable design saves floor space; can also be floor-standing
• Cold-rolled steel construction with black RAL 9004 powder coating

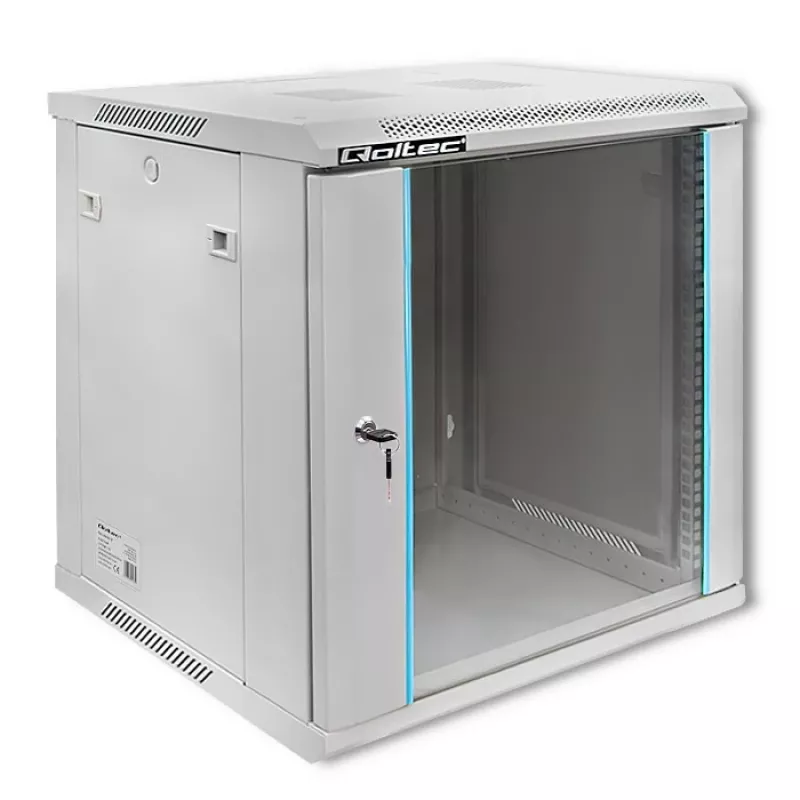

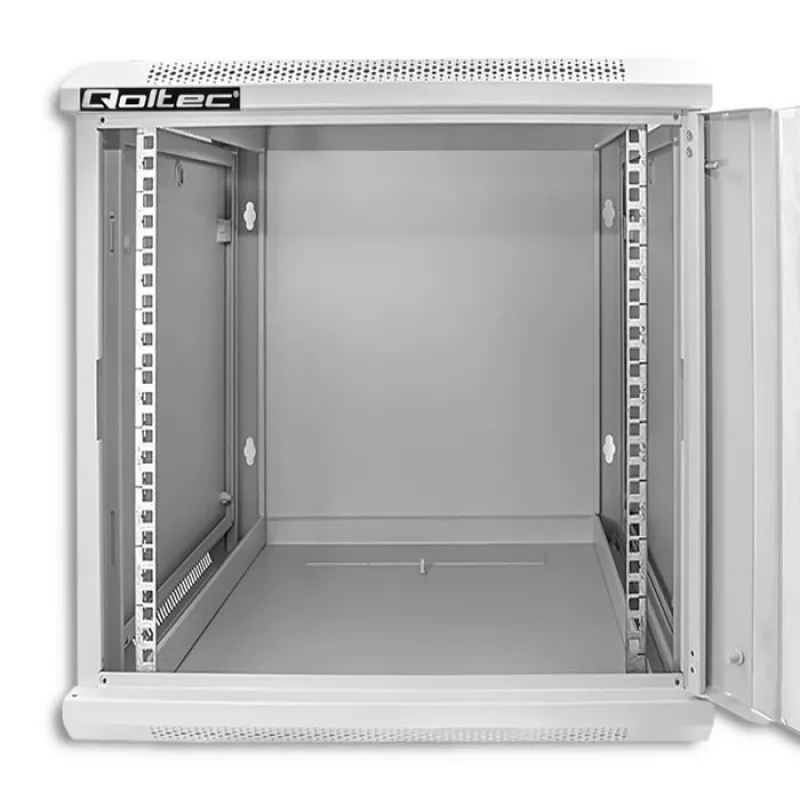

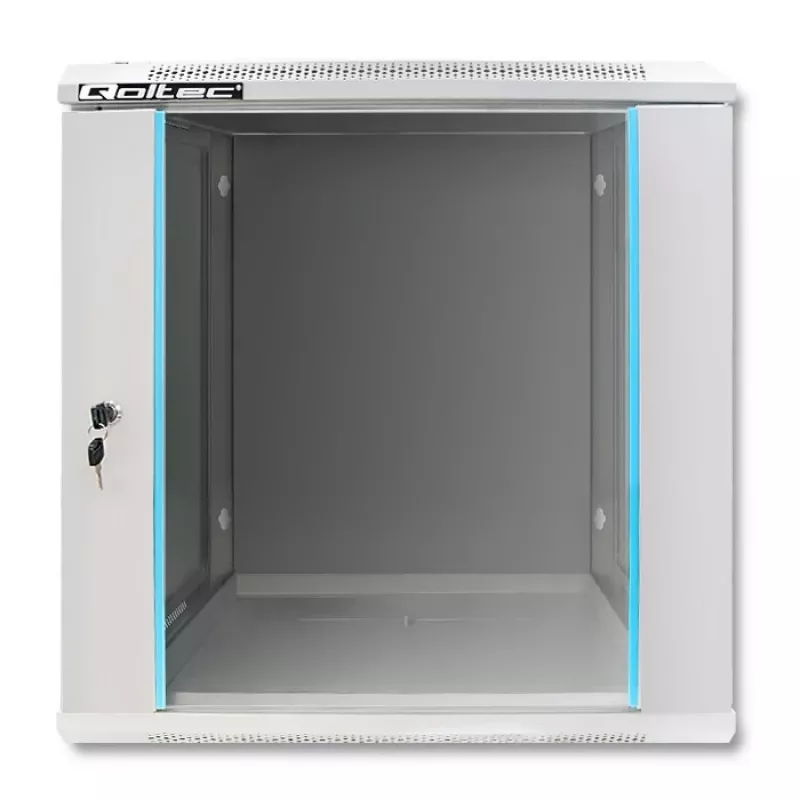

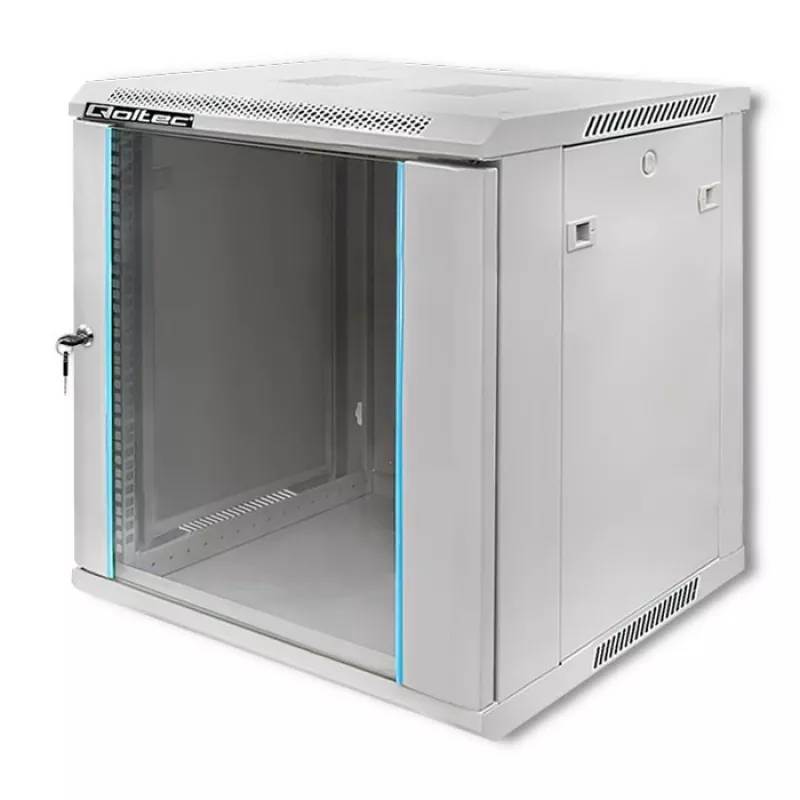

• Tempered glass front door with lock, opens 180° for full access
• Removable, lockable side panels for easy maintenance
• Passive ventilation with provision for optional fan installation
• Top and bottom cable entry points for clean routing

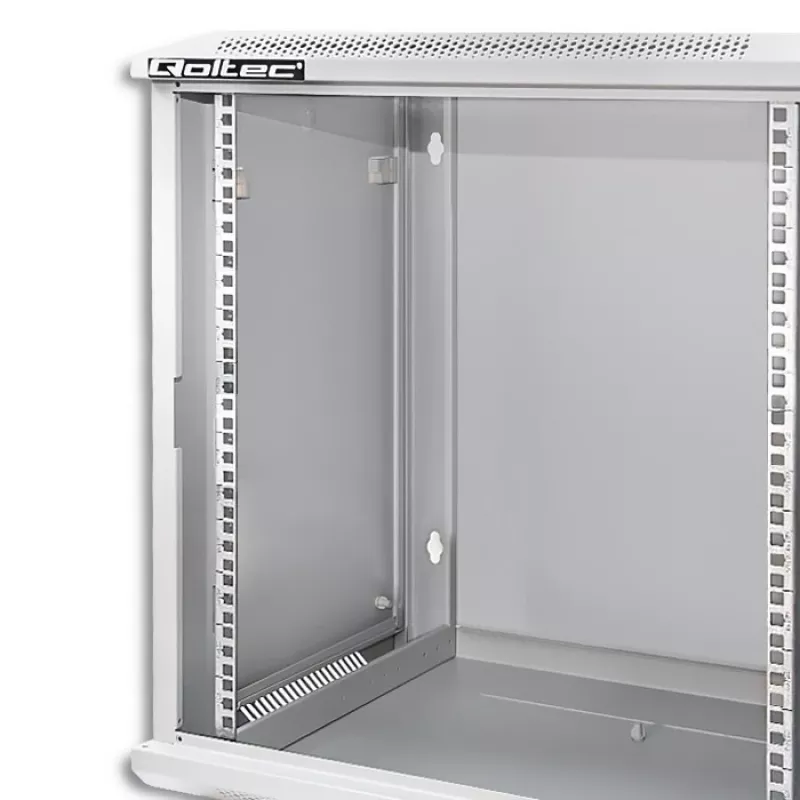

• Adjustable rack rails (depth) to fit various equipment
• IP20 protection suitable for indoor use
• Static load capacity up to 60 kg
• Includes mounting kit and 2 keys
• Flat-pack delivery; self-assembly required

Specifications

• Rack type: Wall-mount
• Rack units: 12U
• Rack standard: 19-inch

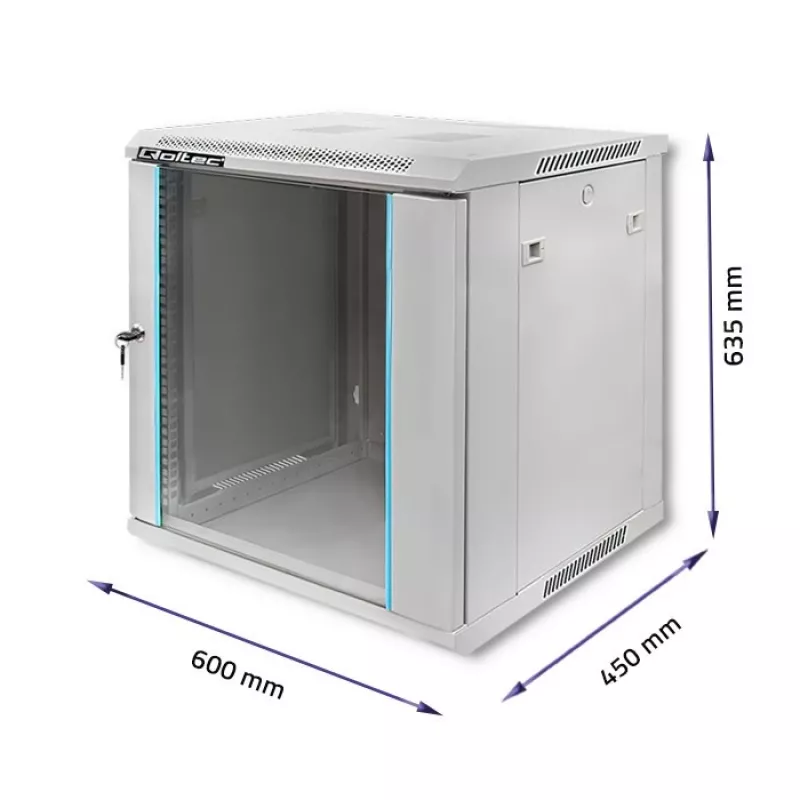

• External dimensions (W x D x H): 600 x 450 x 635 mm
• Material: Cold-rolled steel
• Front door: Tempered glass with lock
• Side panels: Removable, lockable
• Max static load: 60 kg
• IP rating: IP20
• Ventilation: Passive, fan-ready
• Cable entry: Top and bottom
• Colour: Black (RAL 9004)
• Assembly: Required (flat-pack)
• Compliance: RoHS, CE

Tips

Before mounting, ensure the wall can support the combined weight of the cabinet and installed equipment. Use the adjustable rails to align equipment depths and leave at least 10 cm clearance around the cabinet for airflow. For active equipment, consider adding a fan kit to improve cooling in warm environments.
