Arrefecedor de ar DeepCool AK500 G2 Digital NYX, ventoinha de 120 mm, pressão de ar máx. 3,33 mmH2O, 117×129×159 mm, preto

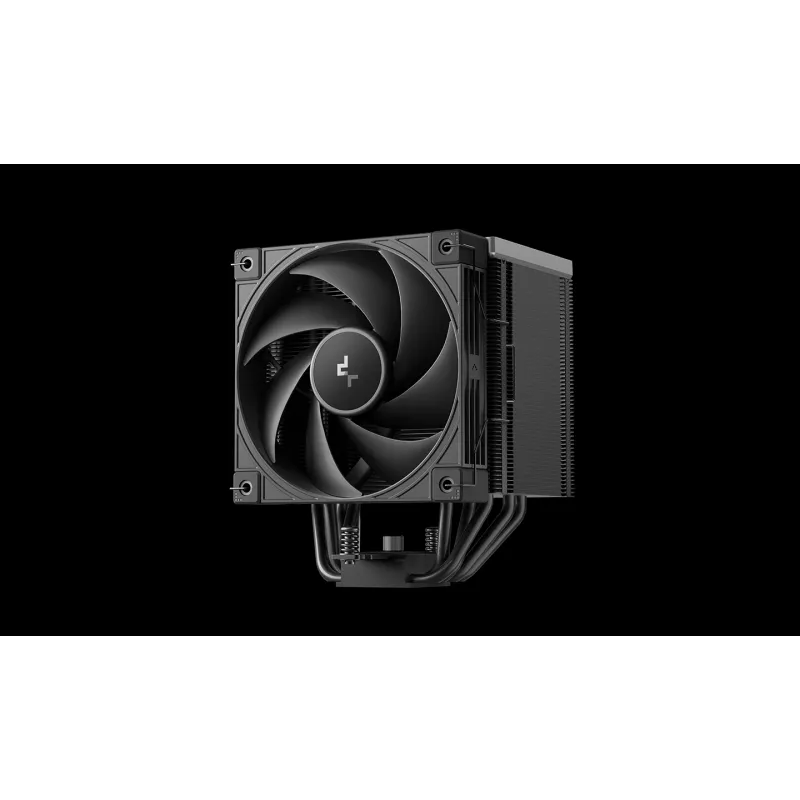

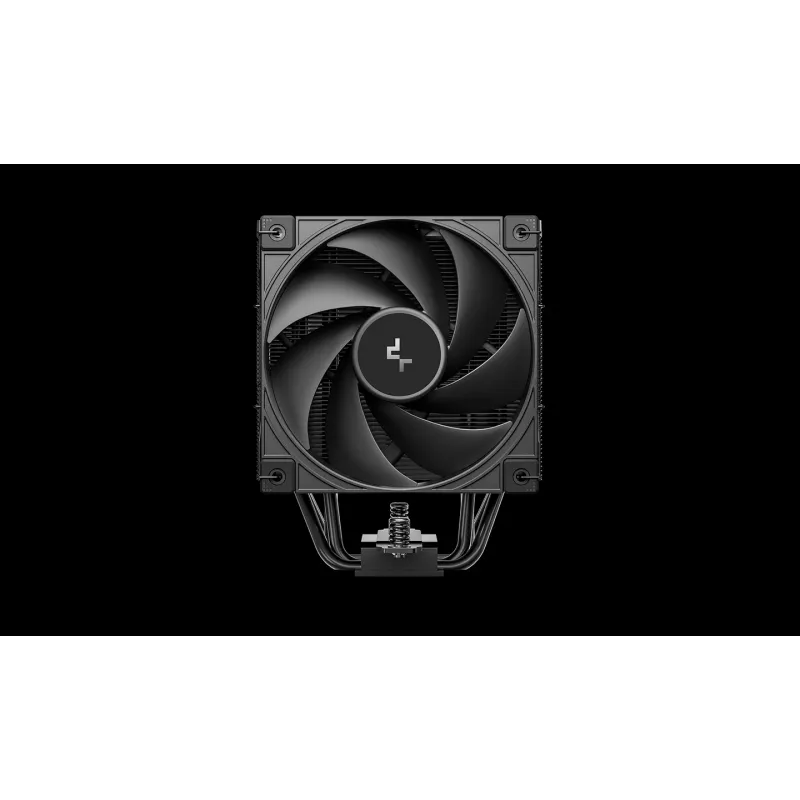

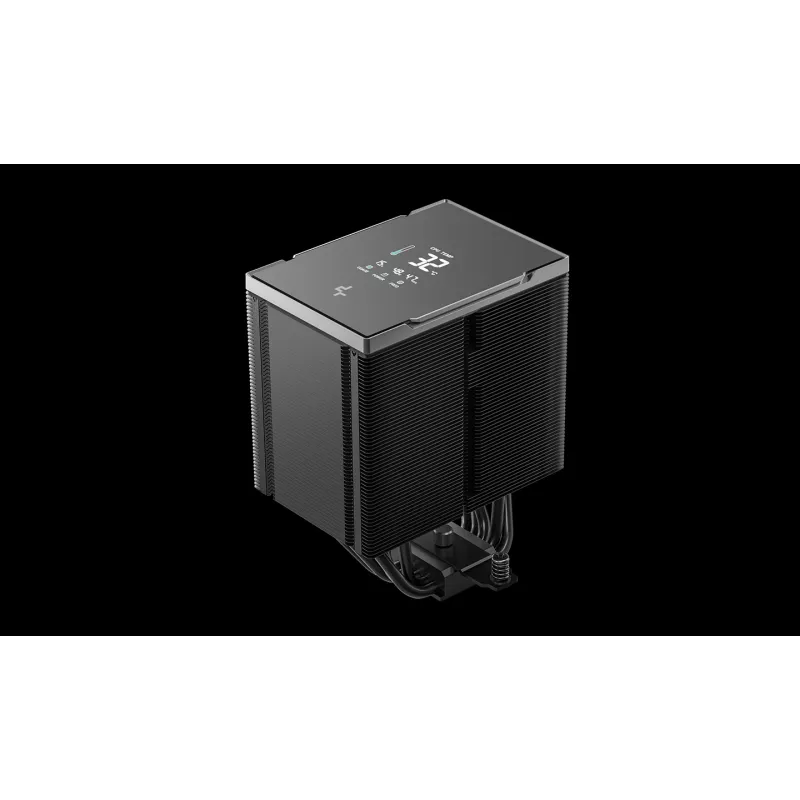

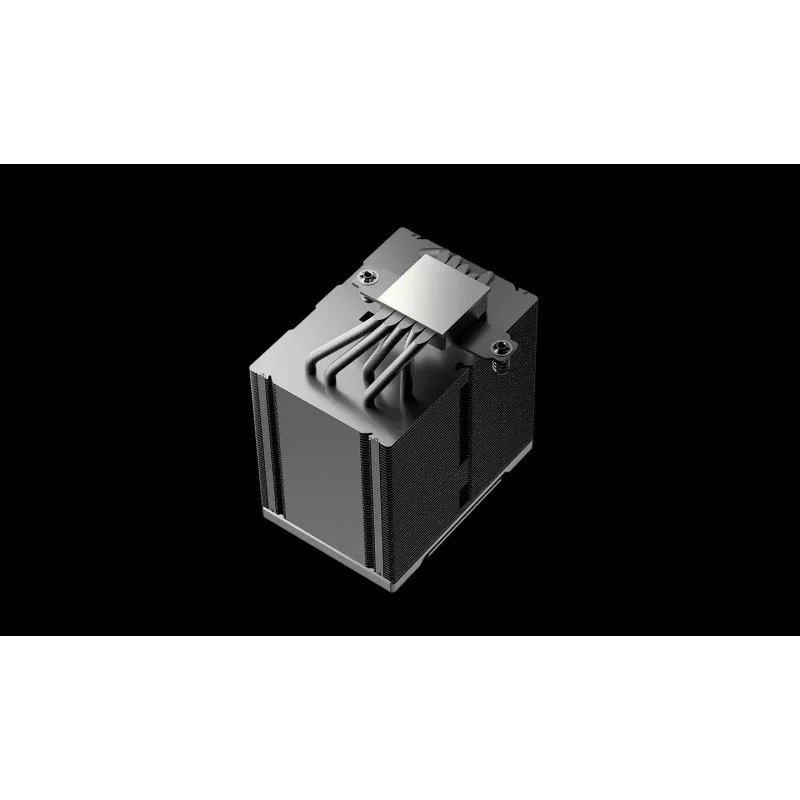

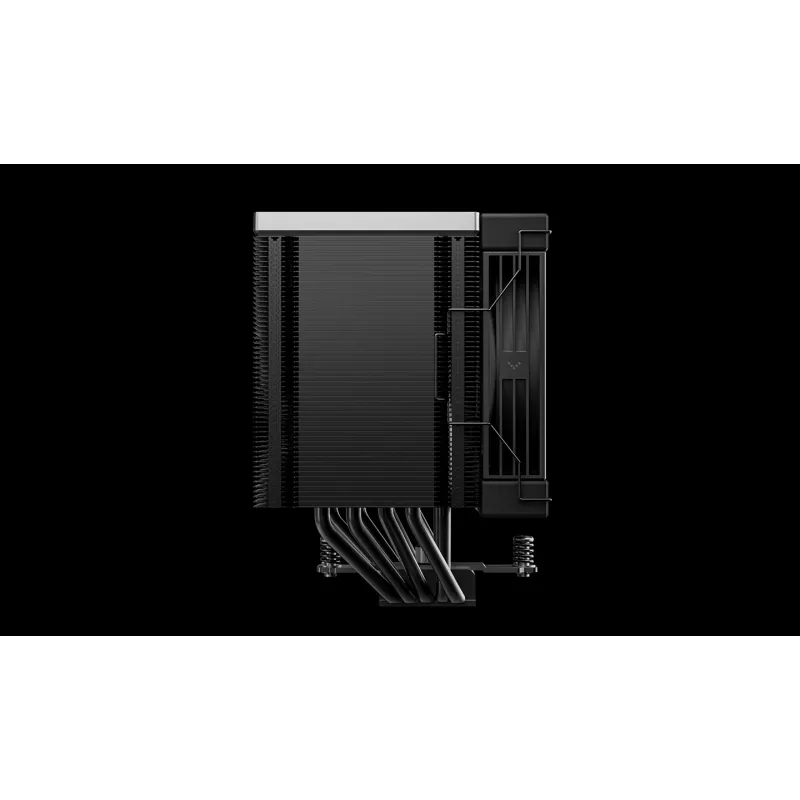

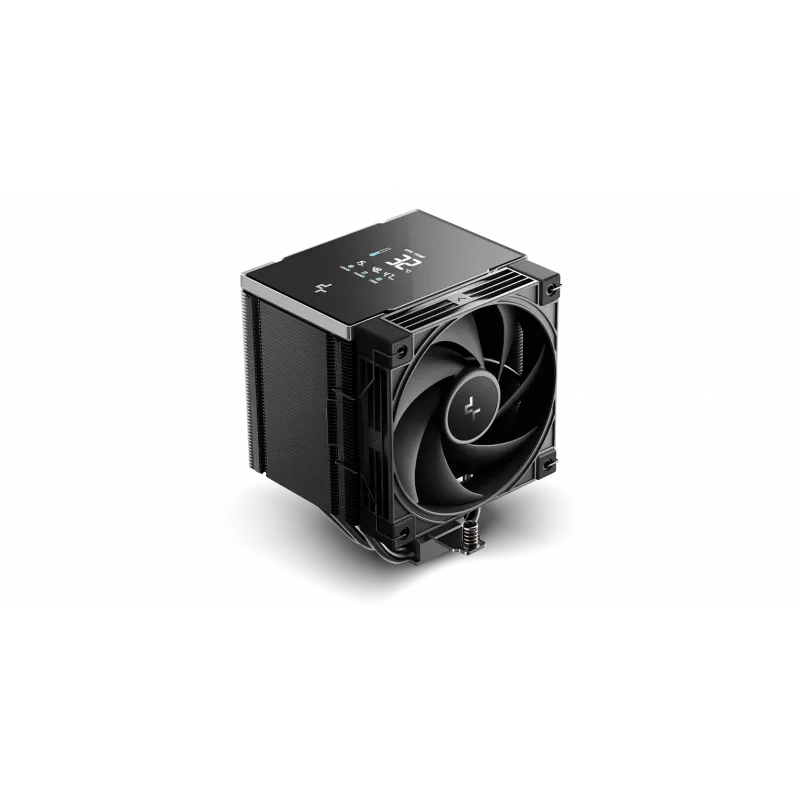

DeepCool AK500 G2 Digital NYX is a compact air CPU cooler with a 120 mm fan designed to provide directed airflow in space-constrained desktop systems. The black tower cooler measures 117×129×159 mm and combines a single 120 mm fan with a heatsink layout optimized to dissipate heat from mainstream processors. It supports pulse-width modulation (PWM) for fan speed control and is compatible with a wide range of modern Intel and AMD sockets.

Advantages

The cooler delivers concentrated airflow with a rated maximum air pressure of 3.33 mmH2O and an airflow of 63.4 CFM, which helps maintain processor temperatures under typical desktop loads. Its compact dimensions make it suitable for cases with limited clearance while the black finish integrates unobtrusively into most builds. PWM support enables automatic fan speed adjustment based on CPU temperature when connected to a compatible motherboard header.

Suitable for

• Standard desktop builds requiring reliable CPU cooling within limited internal space
• Systems using modern Intel sockets such as LGA 1700 and LGA 1200
• Systems using modern AMD sockets such as AM4 and AM5
• Builds where PWM-controlled fan speed is desired for balance between cooling and noise

Key specifications

• Cooling type: Air CPU cooler with 120 mm fan

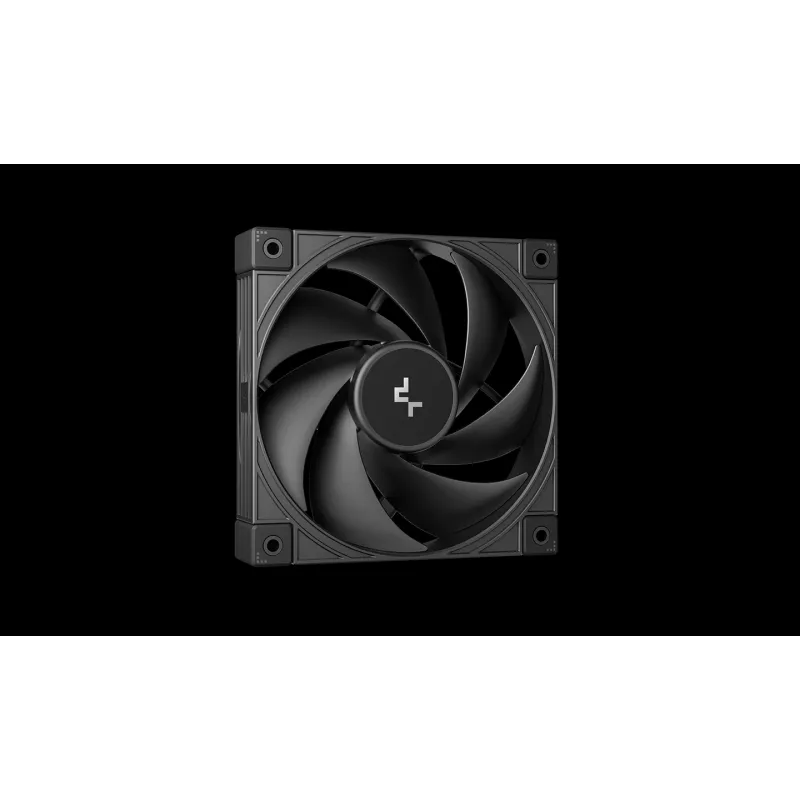

• Fan size: 120 × 120 × 25 mm
• Maximum airflow: 63.4 CFM
• Maximum air pressure: 3.33 mmH2O
• Control: PWM (pulse-width modulation) support for fan speed
• Dimensions (L×W×H): 117 × 129 × 159 mm
• Color: Black
• Package quantity: 1 unit

How to use

Mount the DeepCool AK500 G2 Digital NYX onto a compatible CPU socket following the mounting hardware and instructions supplied with the product. Attach the fan to the heatsink in the specified orientation to direct airflow through the fins and toward the case exhaust. Connect the fan cable to a motherboard CPU_FAN or other PWM-capable header to allow automatic speed control. Ensure adequate case ventilation and verify clearance dimensions inside the case before final installation.

Recommendations

Use the cooler in a case with at least one dedicated exhaust fan to support directed airflow; configure motherboard fan curves for balanced cooling and noise levels. If installing in compact or small-form-factor cases, confirm RAM and VRM cooler clearance around the socket to avoid physical interference.
