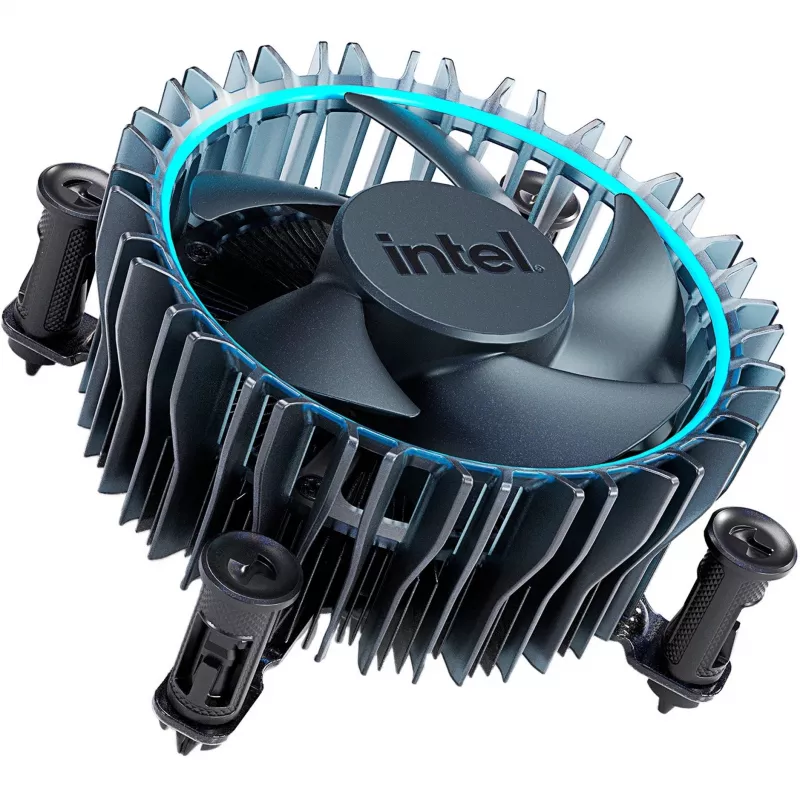

Arrefecedor de ar Intel Laminar RM1 Processador Preto Azul 600-3150 RPM

The Intel Laminar RM1 Processor air cooler provides targeted cooling for desktop CPUs with a compact footprint of 100mm x 100mm x 47mm. Designed as a low-profile air cooler, it combines a black and blue finish with a fan that spins between 600 and 3150 RPM to deliver variable airflow suitable for typical desktop workloads. The cooler is compatible with modern LGA 1700 sockets and is rated for a Thermal Design Power (TDP) of 65 W, making it appropriate for mainstream processors that require reliable, space-efficient cooling.

Advantages

The Laminar RM1 offers a balance of small size and effective airflow thanks to its high-speed fan range and compact dimensions. Its 600–3150 RPM fan speed range enables the unit to adapt cooling performance to system load, while the black and blue aesthetic integrates cleanly into many builds. With a lightweight design of 0.35 kg and a 65 W TDP rating, the cooler is straightforward to install in cases with limited space and supports common desktop cooling needs without excessive noise under lower loads.

Suitable for

• Small form factor and mid-tower desktop builds where space is limited
• Mainstream Intel processors that fit LGA 1700 sockets with TDP up to 65 W
• Office and home computers requiring reliable, unobtrusive cooling
• Systems that benefit from a compact, low-profile cooler with moderate airflow

Key specifications

• Type: Air cooler with axial fan
• Fan speed range: 600–3150 RPM
• Dimensions (W×D×H): 100 mm × 100 mm × 47 mm
• Weight: 0.35 kg
• Thermal Design Power (TDP): 65 W
• Supported socket: LGA 1700
• Color: Black and blue finish

How to use

Mount the Intel Laminar RM1 onto a compatible LGA 1700 motherboard following the screw or clip mounting method provided by the case or motherboard manufacturer. Apply a thin, even layer of thermal compound on the CPU heatspreader before seating the cooler to ensure proper thermal transfer. Connect the fan cable to the CPU fan header on the motherboard to allow speed control via BIOS or software. Verify clear airflow paths within the case and avoid obstructing the cooler with cables or adjacent components.

Recommendations

For best results, monitor CPU temperatures after installation and configure fan curves in BIOS or system software to balance cooling and acoustic performance. Ensure the case has at least minimal intake and exhaust airflow to allow the Laminar RM1 to operate efficiently. Clean the cooler periodically to remove dust buildup, and reapply thermal compound if the cooler is removed and reinstalled.
