Arrefecedor líquido All-in-One DeepCool LS520 12 cm Preto 500-2250 rpm

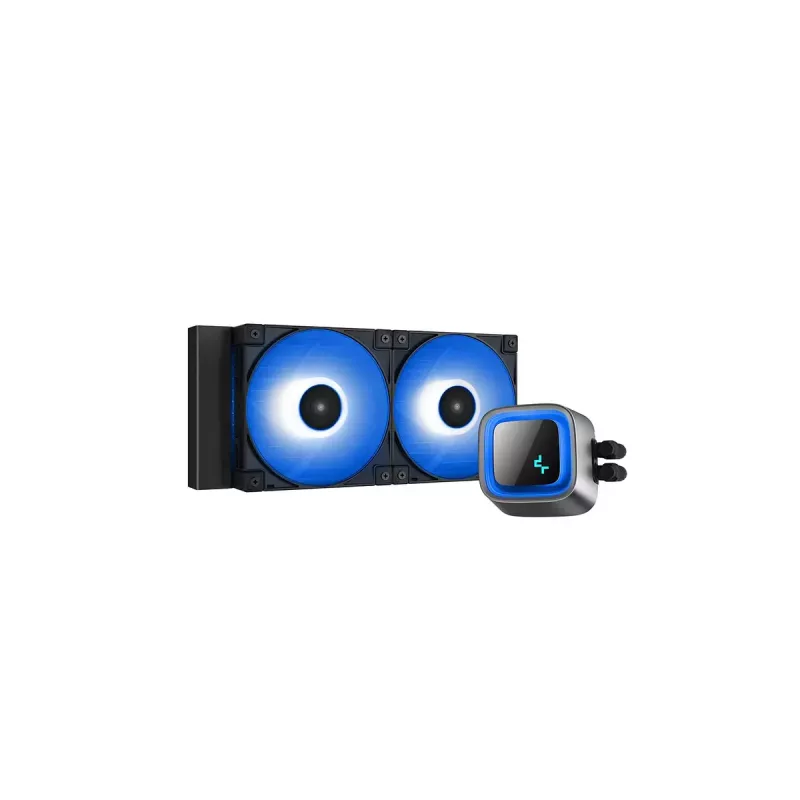

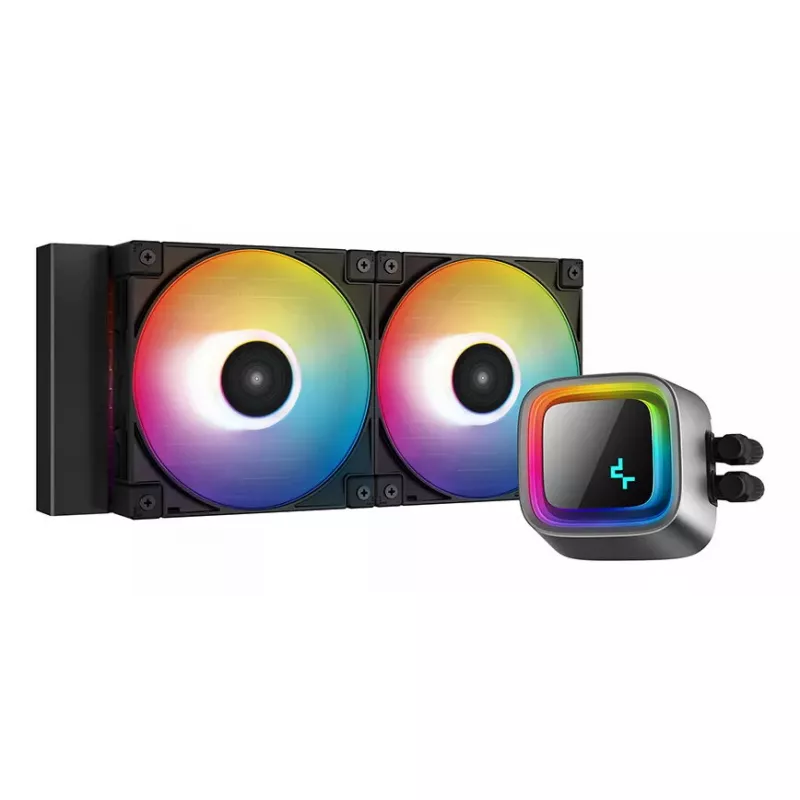

The DeepCool LS520 is an all-in-one liquid cooler with a 240 mm radiator, two FC120 A-RGB PWM fans and an infinity mirror pump cap. Designed for efficient thermal management and quiet operation, the LS520 supports a wide range of Intel and AMD sockets and features a sleek black finish suitable for high-performance PC builds.

Advantages

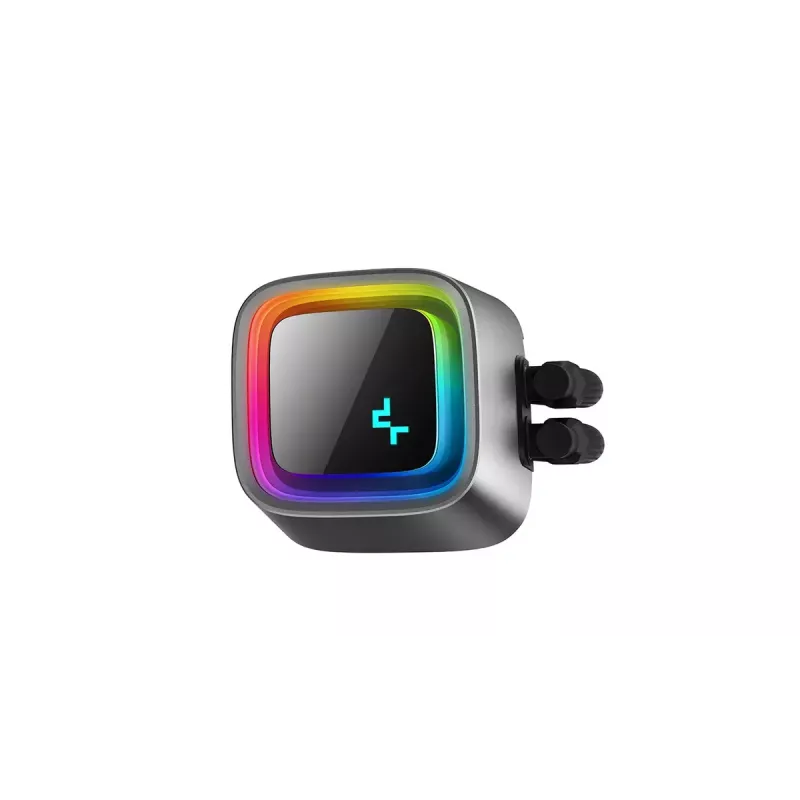

The cooler combines a 240 mm radiator and two high-static-pressure FC120 fans to deliver effective heat dissipation while maintaining low noise levels. The fans use fluid dynamic bearings for extended lifespan and stable operation, and PWM control enables automatic speed adjustment between 500 and 2250 RPM. The pump cap incorporates an infinity mirror design with two light loops and a rotatable logo plate; a blank plate is included for customisation. Newly designed mounting brackets simplify installation and ensure secure mounting across supported Intel and AMD platforms.

Suitable for

• High-performance desktop PCs and gaming rigs that require enhanced CPU cooling
• Systems using Intel sockets LGA 1150 / 1151 / 1155 / 1200 / 1700 / 2011 / 2011-v3
• Systems using AMD sockets AM4, AM5, TR4 and sTRX4

Key specifications

• Type: All-in-one liquid cooler

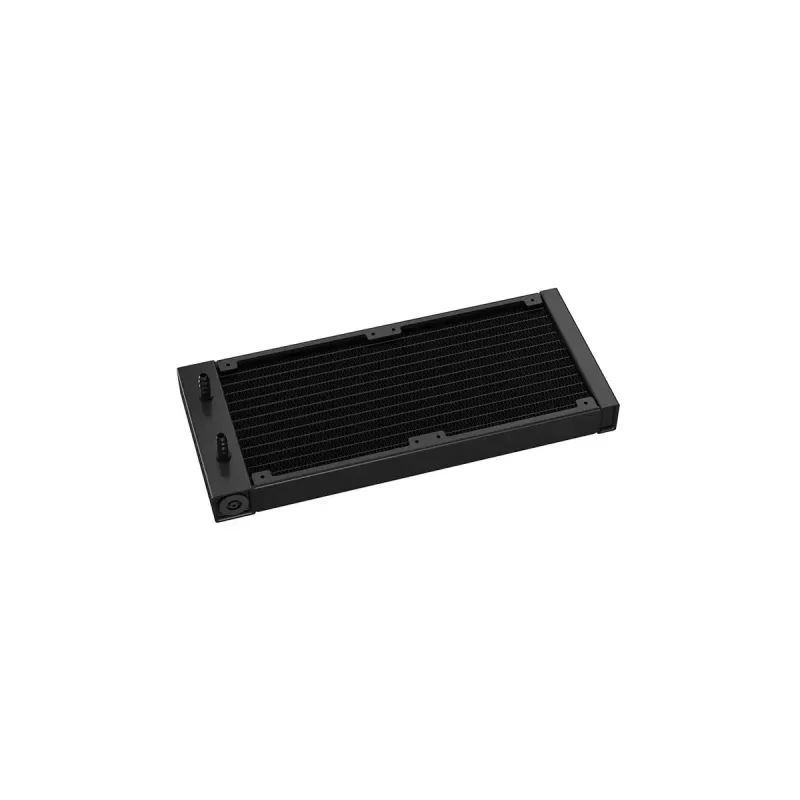

• Radiator size: 240 mm

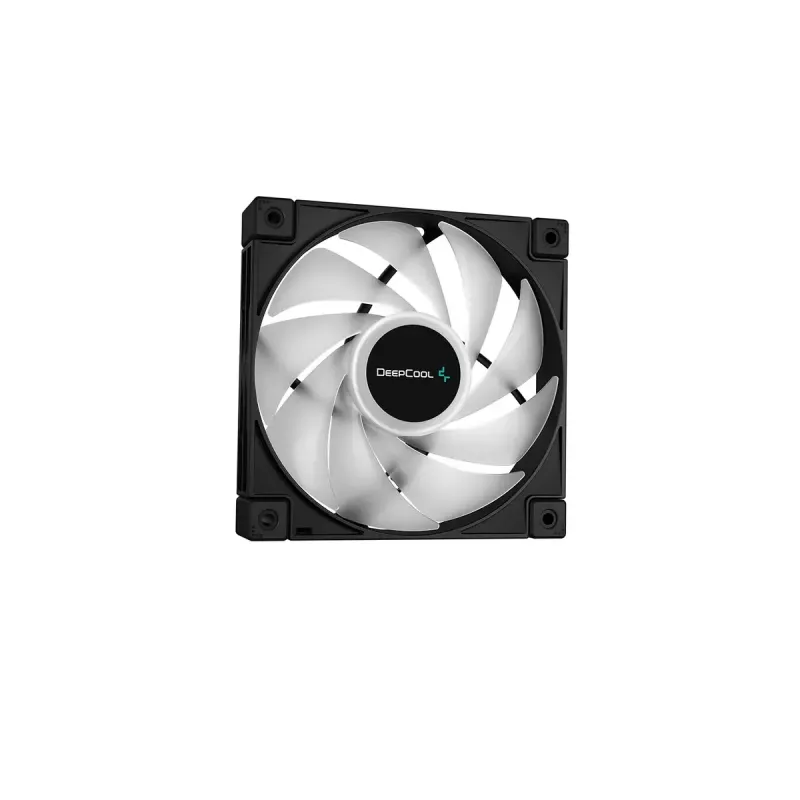

• Fan diameter: 120 mm (two FC120 A-RGB PWM fans)
• Fan speed: 500–2250 RPM (PWM)
• Maximum static pressure: 3.27 mmH2O
• Bearing type: Fluid dynamic bearing
• Supported sockets: LGA 1155 / 1151 / 1150 / 1200 / 1700 / 2011 / 2011-v3; Socket AM4 / AM5 / TR4 / sTRX4
• Colour: Black
• Weight: 1.305 kg

How to use

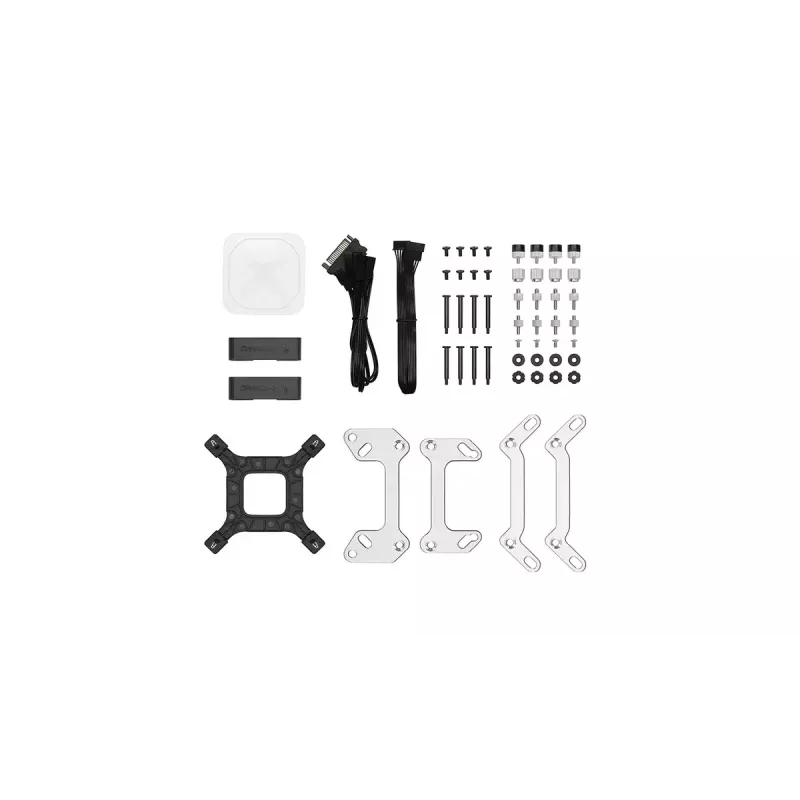

Mount the radiator in your case where a 240 mm radiator fits (top, front or rear depending on case compatibility), attach the two FC120 fans in the desired orientation, and connect the fans and pump to the motherboard headers for PWM control and A-RGB lighting. Use the included mounting brackets and fasteners to secure the pump block to the CPU socket following the provided manual for your specific Intel or AMD socket. Install the rotatable logo plate in the preferred orientation or replace it with the supplied blank plate for customisation.

Recommendations

For optimal cooling and noise balance, enable PWM fan control in the motherboard BIOS or software and ensure good case airflow. Periodically check fan operation and radiator dust buildup; clean the radiator fins gently as needed to maintain cooling performance.
