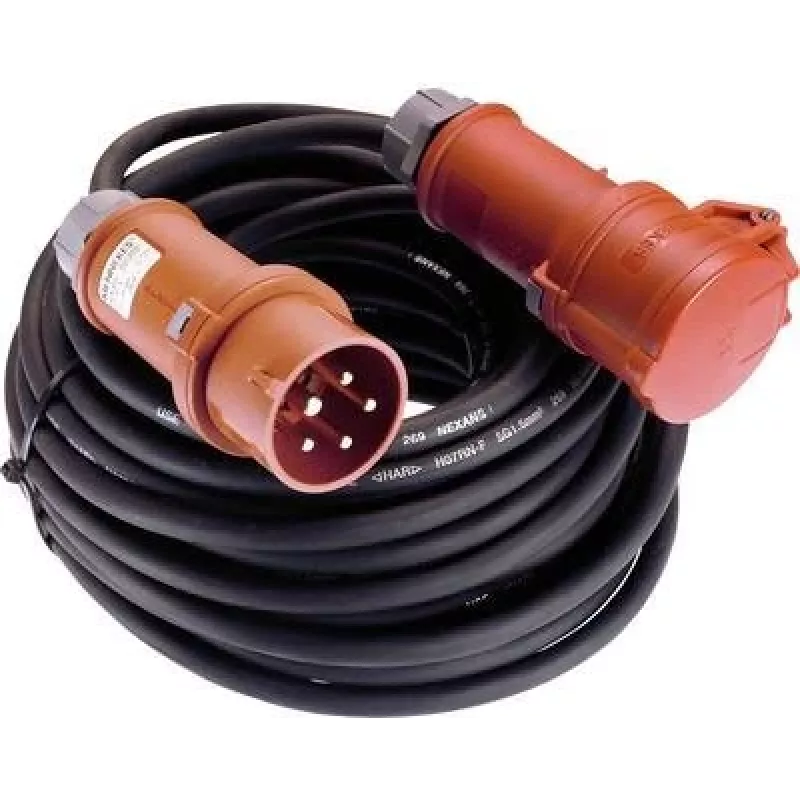

AS SCHWABE 60566 cabo de extensão de borracha CEE 400V 16A 5 polos 10 m com inversor de fases, preto

When working on construction sites, in industrial facilities, or outdoors, you need a power connection that is not only long enough but also robust, safe, and adaptable. The AS SCHWABE 60566 extension cable solves the problem of inflexible three-phase connections by integrating a phase inverter directly into the socket. This allows you to reverse the rotational direction of connected machines such as drills, mixers, or pumps without rewiring the plug—saving time and reducing wear on connectors. With a generous 10-metre length and heavy-duty rubber sheathing, this cable brings reliable 400 V power exactly where you need it, even under tough conditions.

Who is it for

This extension cable is built for professionals and demanding users: electricians, construction crews, event technicians, farmers, and workshop operators. It is ideal for anyone who regularly uses three-phase equipment and needs a durable, splash-proof power link that can handle mechanical stress, oil, and UV exposure. Whether you are powering a concrete mixer on a building site, running a pump in a field, or supplying a machine in a workshop, this cable provides a secure and flexible connection.

Main features

• Integrated phase inverter switch in the socket for quick reversal of motor rotation direction
• Heavy-duty H07RN-F rubber cable with 5 conductors, each 2.5 mm² cross-section
• 10-metre length for extended reach without multiple connections
• CEE 400 V / 16 A / 5-pole plug and socket, standard for three-phase equipment
• IP44 splash-proof rating for outdoor and wet environments
• Oil-resistant and UV-resistant sheath for long service life
• Wide operating temperature range from -25 °C to +60 °C
• Complies with DIN VDE 0282-4 for safety and performance

Specifications

• Cable type: H07RN-F
• Number of conductors: 5
• Conductor cross-section: 2.5 mm²
• Cable length: 10 m
• Cable colour: Black
• Plug type (input): CEE 400 V / 16 A / 5-pole
• Socket type (output): CEE 400 V / 16 A / 5-pole with phase inverter
• Rated voltage: 400 V
• Rated current: 16 A
• Protection class: IP44 (splash-proof)
• Cable sheath material: Rubber
• Application environment: Outdoor, construction sites, industrial, agricultural
• Special feature: Integrated phase inverter switch
• Standard compliance: DIN VDE 0282-4
• Oil resistance: Yes
• UV resistance: Yes
• Temperature range: -25 °C to +60 °C
• Mechanical stress resistance: High

Tips

Before connecting any machine, ensure that the phase inverter is in the correct position for the desired rotation direction. Always fully unroll the cable when using high currents to prevent overheating. Regularly inspect the plug, socket, and cable sheath for damage, and replace the cable if the rubber shows cracks or cuts. Store the cable loosely coiled in a dry place when not in use to extend its lifespan.
