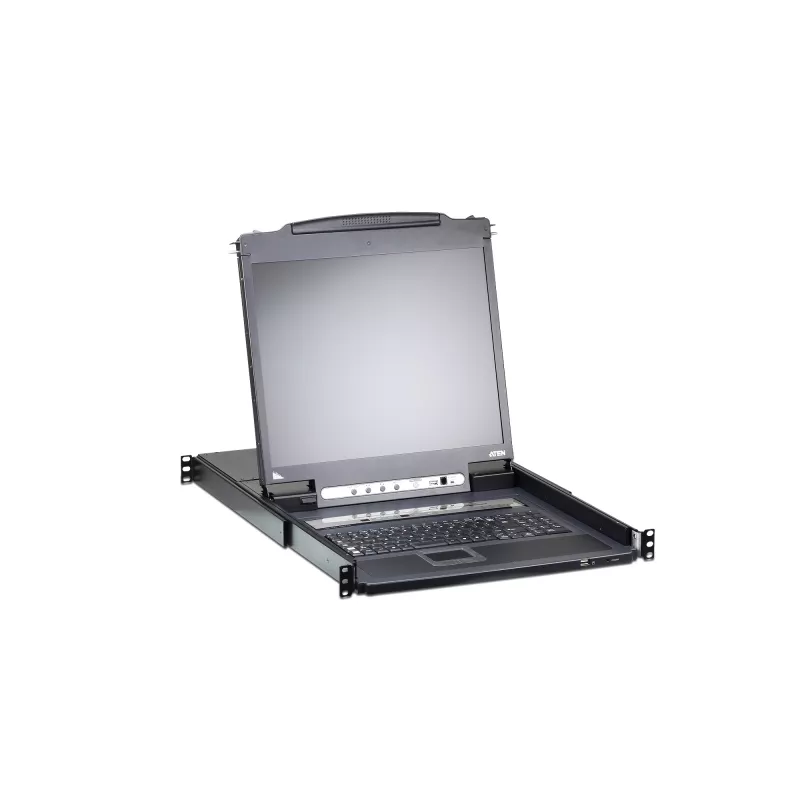

ATEN CL5708IM consola de rack 43,2 cm (17 inch) 1280 x 1024 píxeis metal, plástico preto 1HE

The CL5708I Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708I can control up to 8 computers. As many as 15 additional KVM switches can be daisychained to the CL5708I, so that up to 128 computers can all be controlled from a single KVM console.

The CL5708I LCD KVM Switch is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP/IP for its remote communications protocol. The CL5708I supports up to 32 concurrent user logins for a single-bus computer access. A built-in feature that resembles an Internet chat program - the Message Board - lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner.

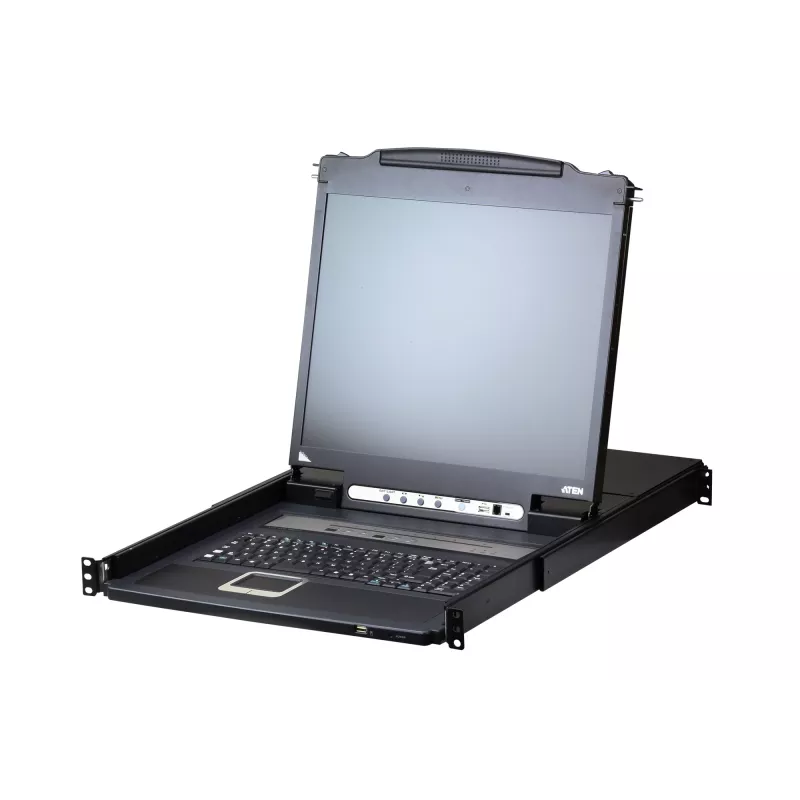

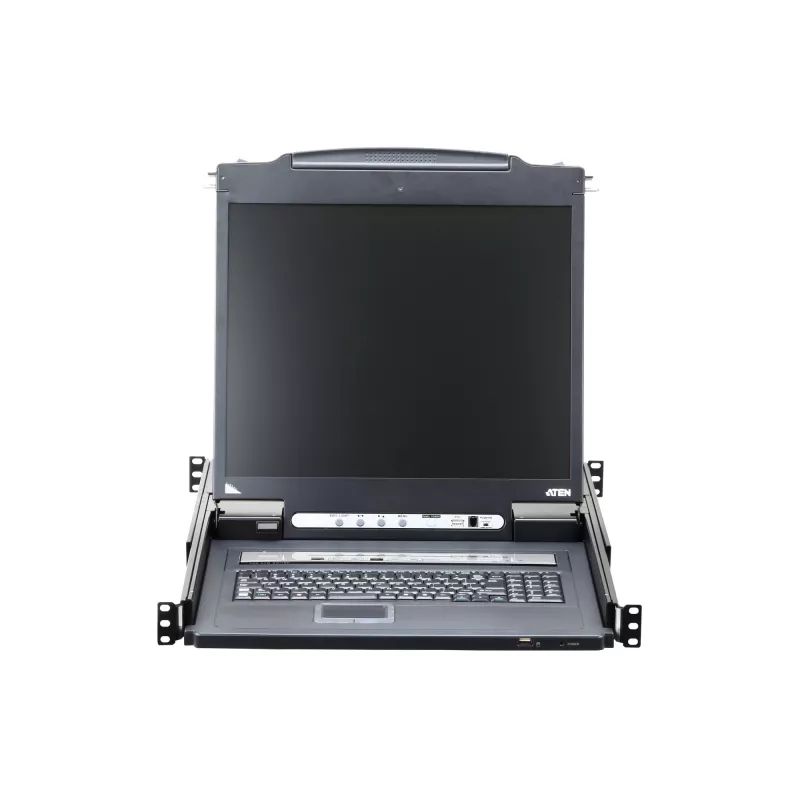

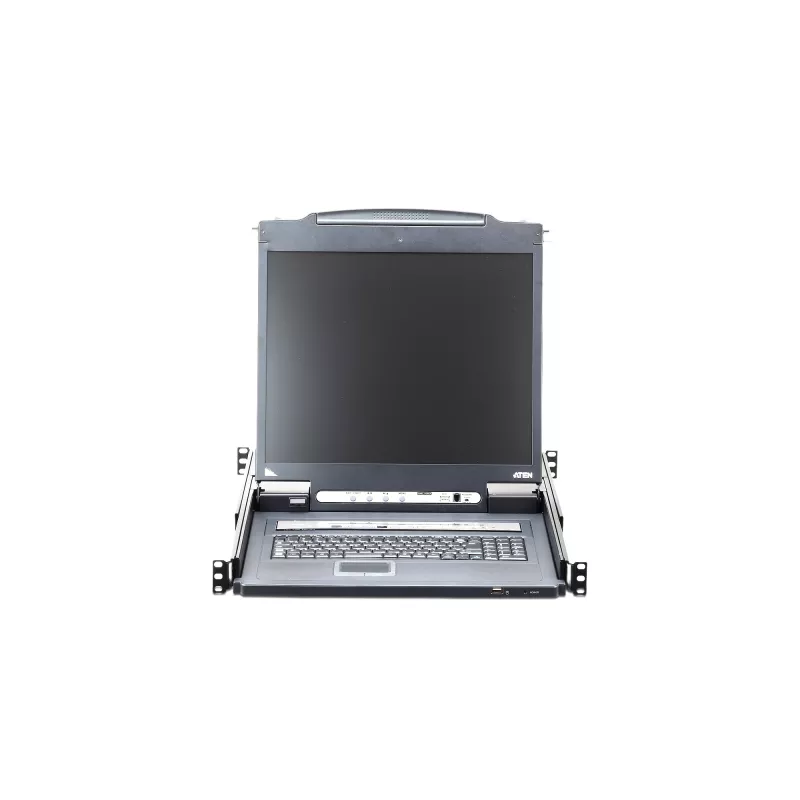

The CL5708I offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. In addition, since the CL5708I is built on a modular design, the KVM section can be detached from the switch section for convenient maintenance and repair.

Among CL5708I's other outstanding features, the Panel Array Mode provides the ability to monitor the video output of the servers on the installation; while the Mouse DynaSync™ feature automatically synchronizes the local and remote mouse pointer movements for perfect alignment regardless of what the mouse acceleration settings on the server are.

The CL5708I supports the highest security protocols, such as TLS 1.2 encryption for the browser, and RC4 encryption for secure keyboard, mouse, and video data transmission. For easier and more efficient user management integration, the CL5708I also supports authentication and authorization via 3rd party authorized servers, such as RADIUS, LDAP, LDAPS, and MS Active Directory.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

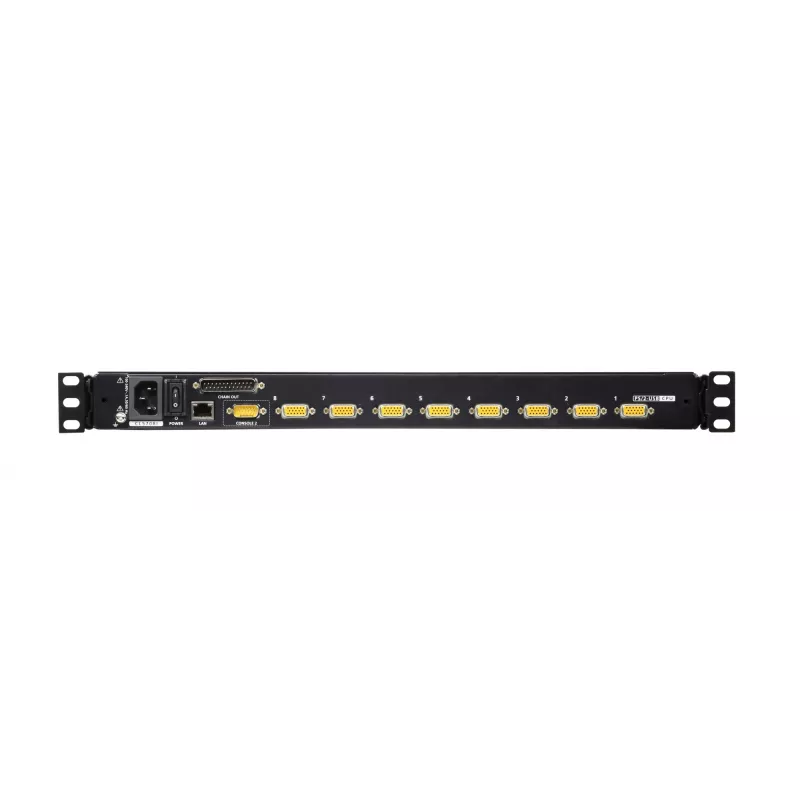

ATEN CL5708IM. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, Display: LCD. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Keyboard language: Swiss, Keyboard layout: QWERTZ. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, Input current: 1 A. Width: 642.7 mm, Height: 44 mm, Depth: 480 mm

How to use

Install the CL5708IM into a standard 19-inch rack occupying 1U of space and secure it according to rack-mounting guidelines. Connect VGA video and USB or PS/2 keyboard and mouse cables between the KVM console and the targeted servers or KVM extender modules, following the cabling layout for up to 128 controlled computers. Provide network connections using 10/100/1000Base-T(X) cabling where required for remote management features. Power the unit and configure any on-screen settings to match connected device resolutions and peripheral types. Use the front console to switch between servers and perform routine administration tasks.

Recommendations

For stable operation, place the CL5708IM in a well-ventilated rack space and ensure all video and peripheral cables are securely connected. When mixing USB and PS/2 devices, verify compatibility and configure input settings on connected servers if needed. Regularly inspect cabling and mounting hardware to maintain reliable access to controlled systems.
