ATEN Switch KVM sobre IP VGA de porta única com acesso partilhado 1 local/remoto

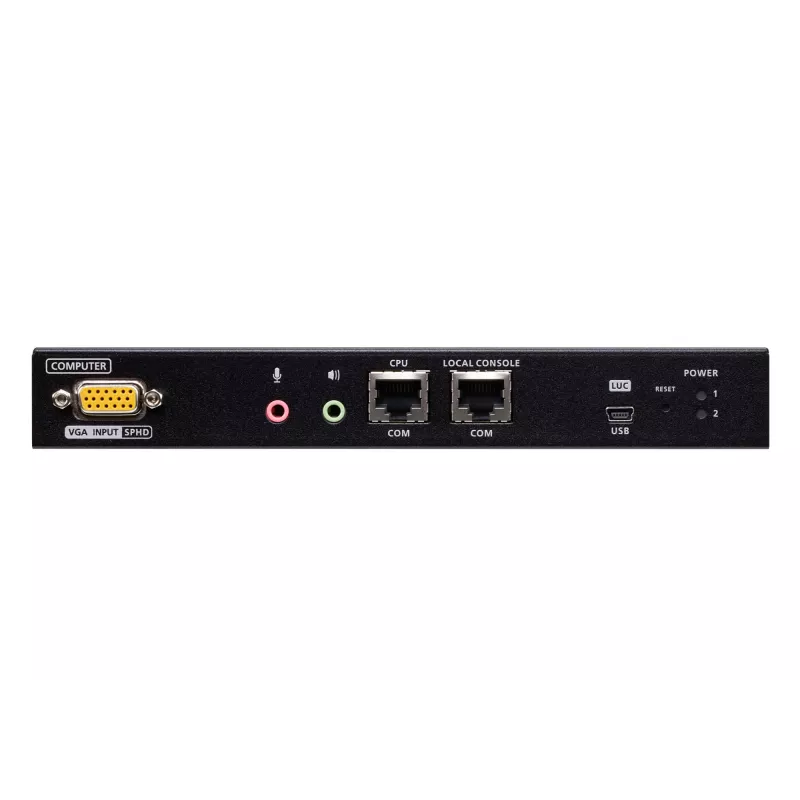

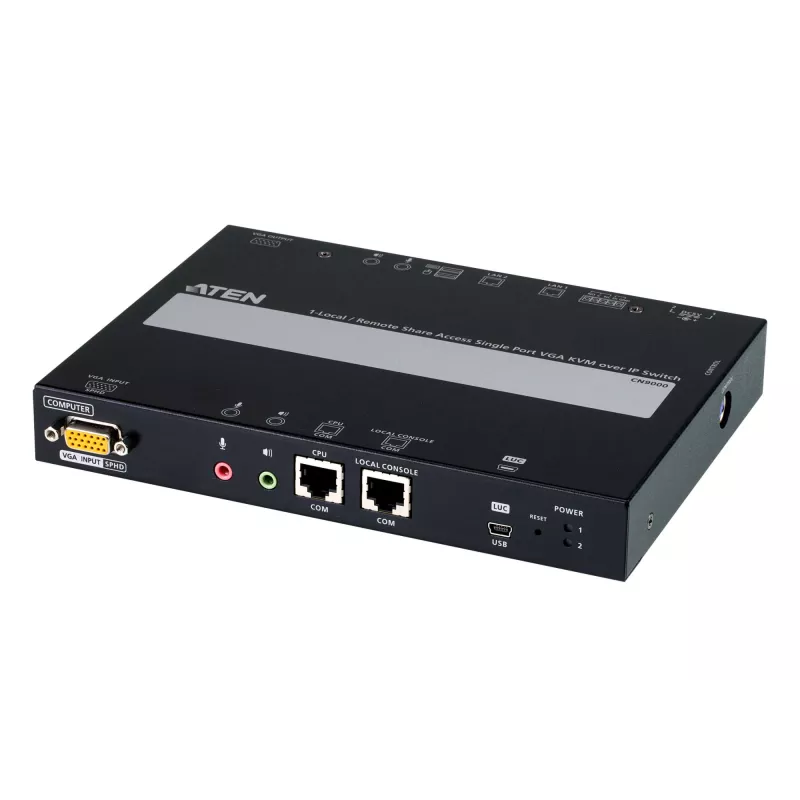

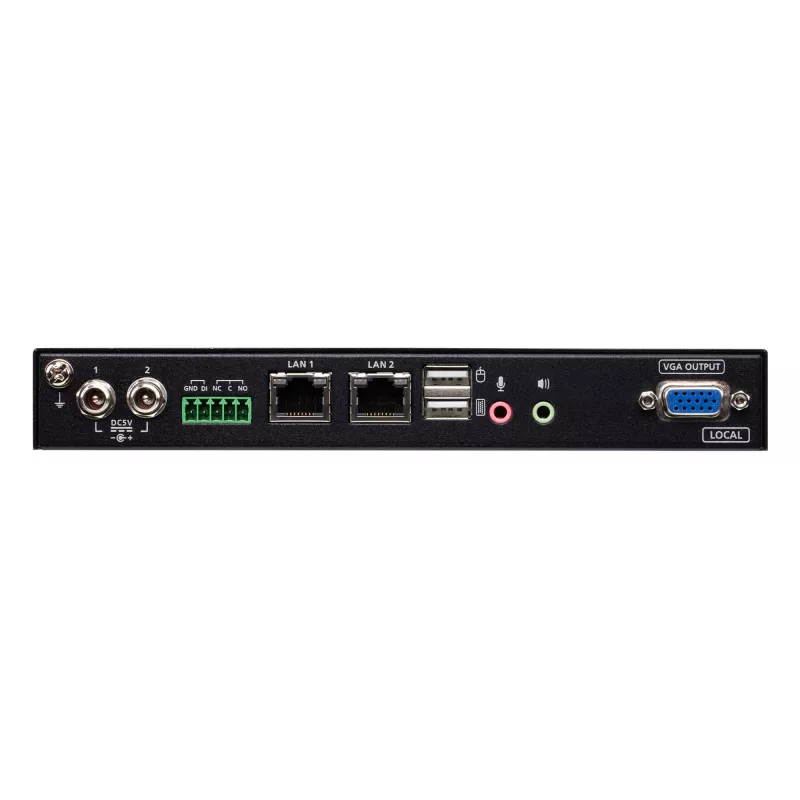

The ATEN CN9000 VGA KVM over IP Switch provides local and remote access to a single PC or workstation, transmitting VGA video, audio and virtual media. It supports high-resolution VGA output up to 1920 x 1200 @ 60Hz for both local and remote consoles and accepts USB and PS/2 keyboard and mouse connections, ensuring compatibility with modern and legacy systems. The compact metal unit operates from AC or DC power and includes cables and mounting accessories in the package.

Advantages

The CN9000 delivers full HD VGA video at up to 1920 x 1200 @ 60Hz while offering both local and remote control over one computer. Dual keyboard/mouse support (USB and PS/2) allows connection to current workstations as well as older servers. The unit’s small footprint and metal housing suit varied installation environments, and the included KVM and USB cables, power adapter and mounting kit simplify setup.

Suitable for (tasks / use cases)

• Remote administration of a single server or workstation
• Local console access with remote monitoring
• Environments combining modern and legacy hardware (USB and PS/2)
• Control rooms, labs and IT maintenance stations

Key specifications

• Brand: ATEN
• Model/MPN: CN9000-AT-G
• EAN: 4710469340680
• Video: VGA up to 1920 x 1200 @ 60Hz
• Keyboard/Mouse: USB and PS/2
• Number of computers controlled: 1
• Product colour: Black
• Weight: 1.26 kg
• Dimensions (W×D×H): 200 mm × 154.1 mm × 28.5 mm

How to use

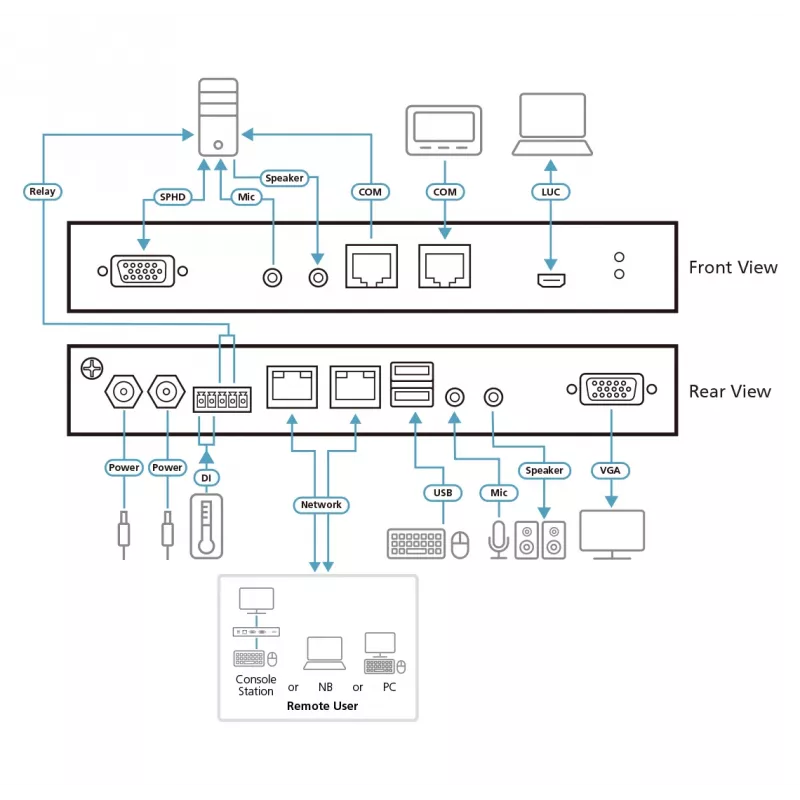

Connect the CN9000 to the target computer using the supplied KVM cable (VGA, PS/2 or USB depending on the computer’s ports). Attach the USB cable for virtual media if required, and connect the power adapter. Use the local console to perform initial configuration, then access the device remotely over the network using the vendor’s remote access method. Switch between local and remote control as needed; the device provides simultaneous local console support and remote KVM-over-IP functionality.

Recommendations

For reliable video performance, use quality VGA cables and set display resolution to 1920 x 1200 @ 60Hz on the connected computer. Ensure firmware is up to date and secure network access credentials when enabling remote connections.
