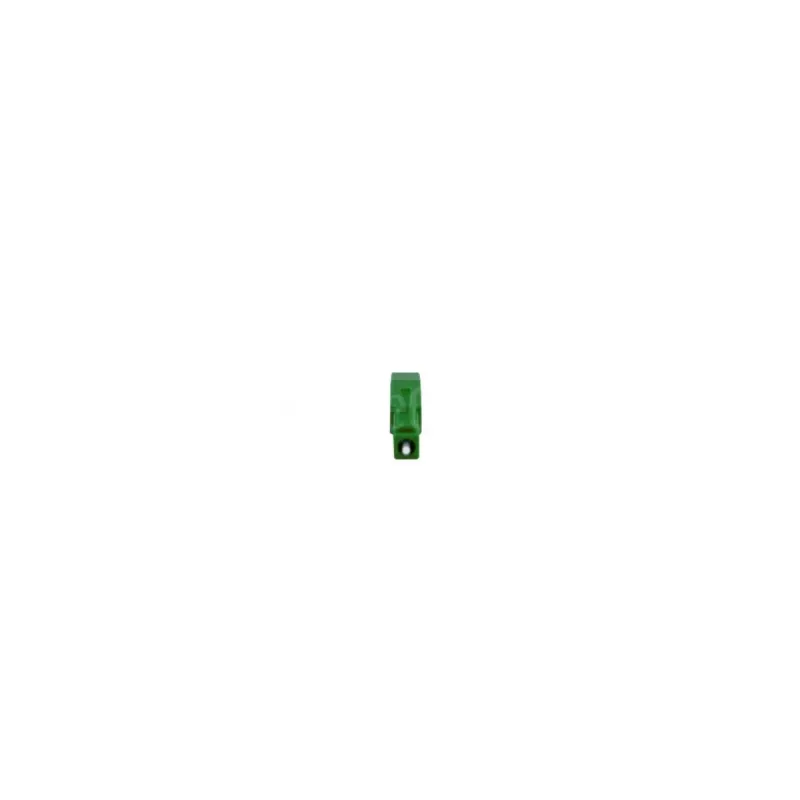

Atenuador de fibra ótica monomodo LC/APC Simplex 25dB BlueOptics

The BlueOptics SFA21BM25 is a high-quality fiber optic attenuator designed for singlemode networks. It provides precise 25 dB attenuation with LC/APC connectors in a simplex configuration, ensuring reliable signal reduction in telecommunications, data centers, FTTx, CATV, and LAN applications.

Advantages

This attenuator offers excellent return loss (>60 dB) and low additional insertion loss (<0.2 dB), maintaining signal integrity. Its zirconia ceramic ferrule ensures durability over 500 mating cycles, and the angled physical contact (APC) polish minimizes back reflections. The green color code indicates APC polish for easy identification.

Suitable for

• Telecommunications networks
• Data centers
• FTTx installations
• CATV systems
• Local area networks (LAN)

Key specifications

• Attenuation: 25 dB (±0.5 dB tolerance)
• Connector: LC/APC simplex
• Fiber mode: Singlemode (SM)
• Wavelength range: 1260 nm - 1650 nm
• Return loss: >60 dB
• Additional insertion loss: <0.2 dB
• Polarization dependent loss: <0.2 dB
• Maximum optical power: 200 mW (23 dBm)
• Operating temperature: -40°C to +85°C
• Storage temperature: -40°C to +85°C
• Durability: >500 mating cycles
• Housing material: Zirconia ceramic ferrule, metal/plastic body
• Compliance: RoHS, IEC 61754-20

Recommendations

For optimal performance, use with matching LC/APC patch cables and ensure clean connections. This attenuator is ideal for precise signal level adjustment in high-speed optical networks.
