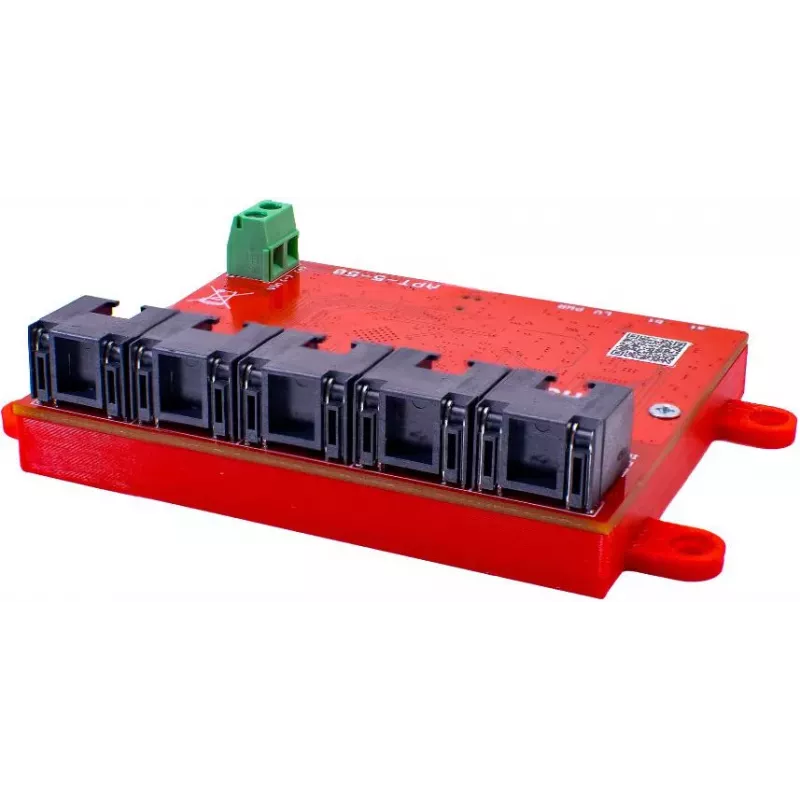

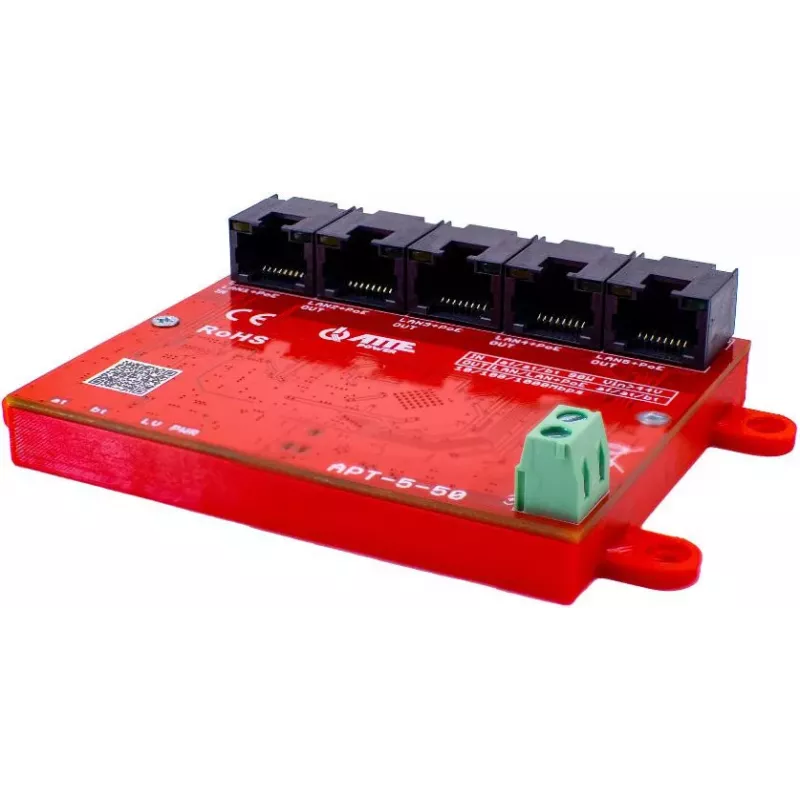

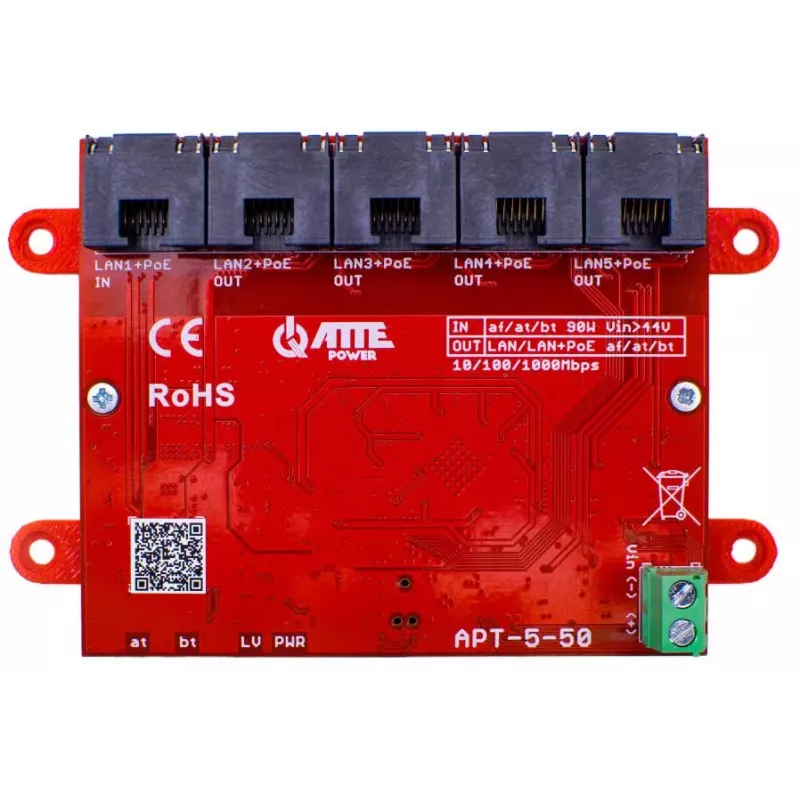

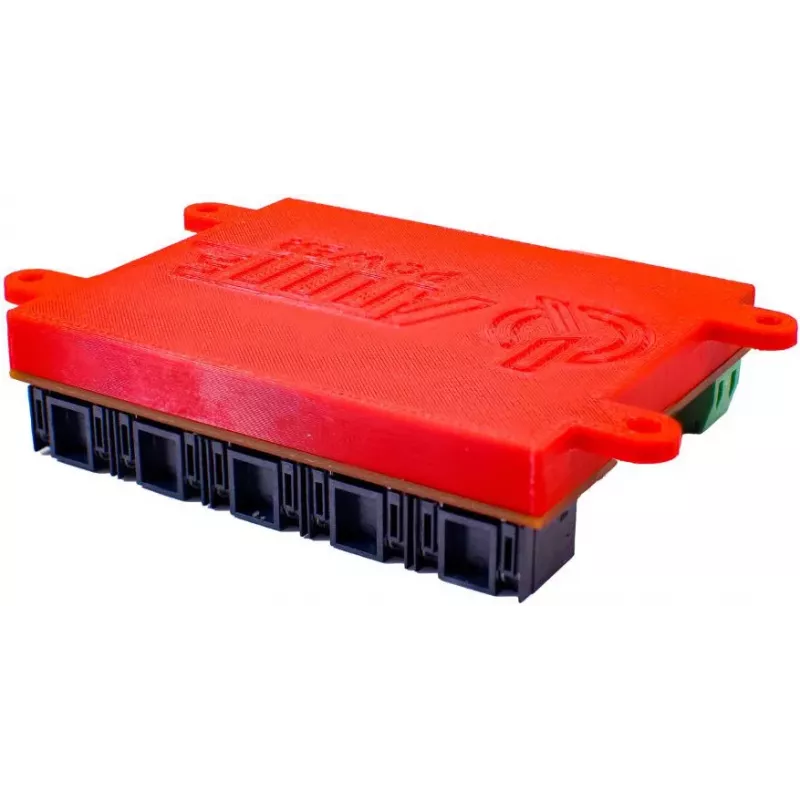

ATTE APT-5-50 switch/extensor PoE+ de 5 portas, 4x PoE (30W/porta), orçamento 50W, 10/100 Mbps, modo Extend 250m

The ATTE APT-5-50 is a versatile 5-port PoE+ switch and network extender designed for IP CCTV systems and network expansion. With 4 PoE+ ports delivering up to 30W per port and a total budget of 50W, it powers cameras, access points, and other PoE devices while extending data and power up to 250 meters in Extend Mode. Its compact desktop and wall-mountable design makes it ideal for small to medium installations.

Advantages

Cost-effective solution combining switching and PoE extension in one device. Extend Mode allows long-distance connections up to 250m at 10 Mbps, perfect for remote cameras. VLAN Mode enhances network segmentation and security. PoE Watchdog automatically reboots unresponsive PoE devices, reducing maintenance visits.

Suitable for

• IP CCTV systems requiring long-distance PoE
• Small office or home network expansion
• Extending network to outbuildings or remote areas
• Powering and connecting PoE devices like cameras, VoIP phones, and wireless access points

Key specifications

• 5 Ethernet ports: 4 PoE+ (ports 1-4) + 1 uplink (port 5)
• 10/100 Mbps speed per port
• PoE standard: IEEE 802.3af/at (PoE+)
• Max power per PoE port: 30W
• Total PoE power budget: 50W
• Switching capacity: 1 Gbps
• Packet forwarding rate: 0.74 Mpps
• MAC address table: 1K entries
• Jumbo frame support: 1536 bytes
• Power supply: External DC 48V
• Operating temperature: -10°C to +50°C
• Mounting: Desktop, wall-mountable
• LED indicators: Power, Link/Act, PoE Status
• Special features: Extend Mode (250m), VLAN Mode, PoE Watchdog

Recommendations

For optimal performance in IP surveillance, use Extend Mode for cameras beyond 100m. Ensure total PoE consumption does not exceed 50W. The switch is plug-and-play; no configuration required for basic operation.
