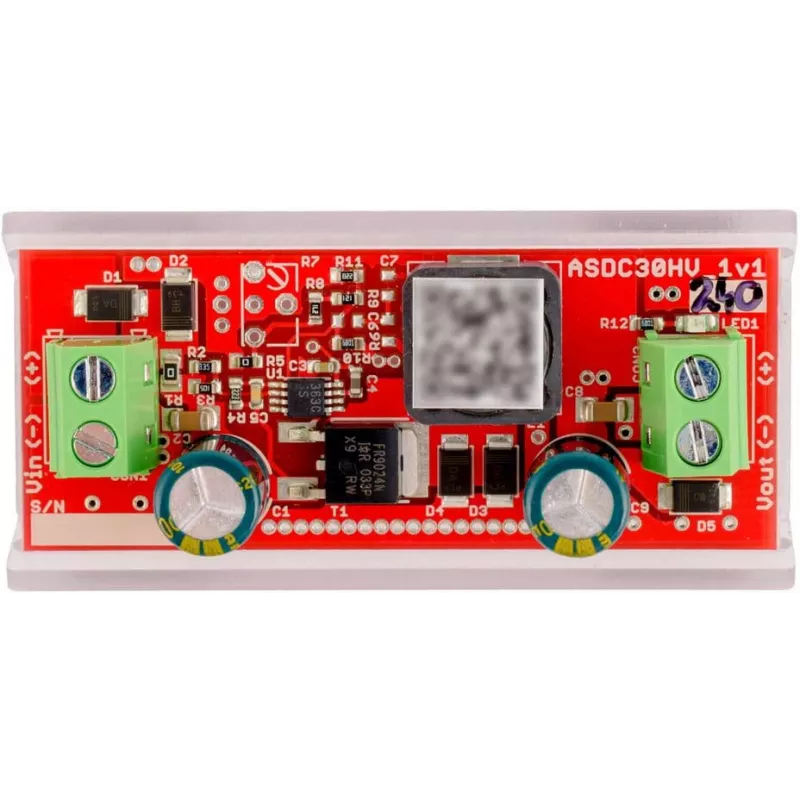

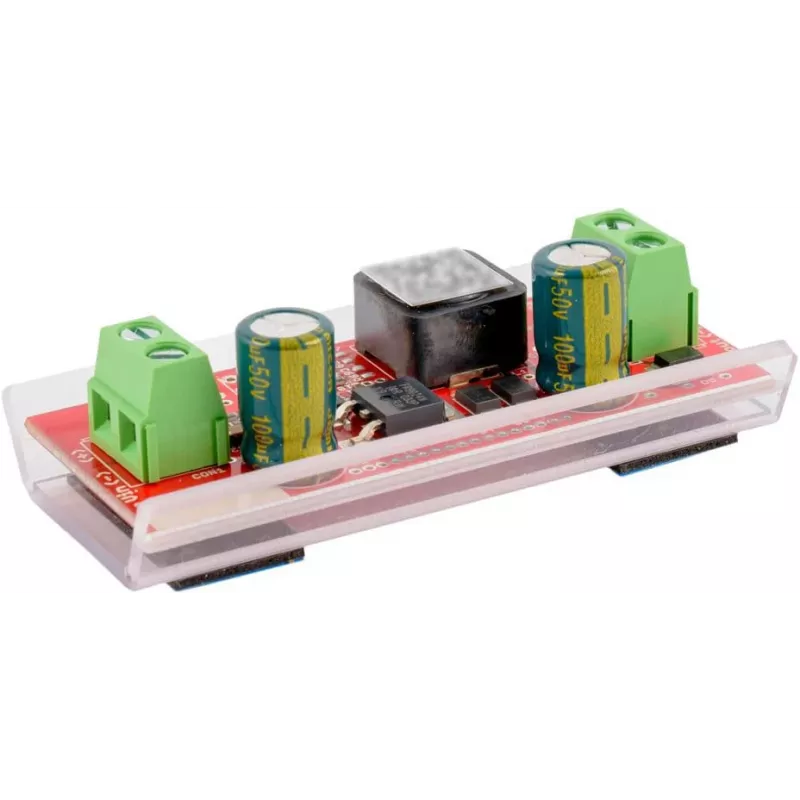

ATTE ASDC-30-240-OF Conversor DC/DC Step-Down 24V 2,5A 60W Calha DIN

The ATTE ASDC-30-240-OF is a high-efficiency DC/DC step-down (buck) converter designed to reduce input voltages from 30-60V DC to a stable 24V DC output. With a continuous output current of 2.5A and 60W power, it is ideal for industrial automation, control systems, and telecommunications equipment. The converter features screw terminals for easy wiring, overload and short circuit protection, and a compact DIN rail mountable plastic housing.

Advantages

This converter offers reliable voltage regulation with over 90% efficiency, ensuring minimal power loss. Its non-isolated design provides a cost-effective solution for applications where isolation is not required. The built-in protection features safeguard against overload, short circuit, overvoltage, and reverse polarity on the input, enhancing system safety and longevity.

Suitable for

• Industrial control panels
• Automation systems
• Telecom equipment
• Security systems
• LED lighting installations

Key specifications

• Converter Type: DC/DC Step-Down (Buck)
• Input Voltage Range: 30 - 60V DC
• Output Voltage: 24V DC
• Output Current (Continuous): 2.5A
• Output Power: 60W
• Efficiency: >90%
• Isolation: Non-Isolated
• Input Connector Type: Screw Terminals
• Output Connector Type: Screw Terminals
• Protection: Overload, Short Circuit, Overvoltage, Reverse Polarity (Input)
• Operating Temperature: -10°C to +50°C
• Mounting Type: DIN Rail (TS-35)
• Enclosure: Enclosed Plastic Housing
• Cooling: Natural Convection
• Ripple & Noise: <100mVp-p
• Certifications: CE (expected)

Recommendations

For optimal performance, ensure the input voltage is within the specified range and the load does not exceed 2.5A continuous. Use appropriate wire gauges for screw terminals and mount on a standard TS-35 DIN rail in a well-ventilated area.
