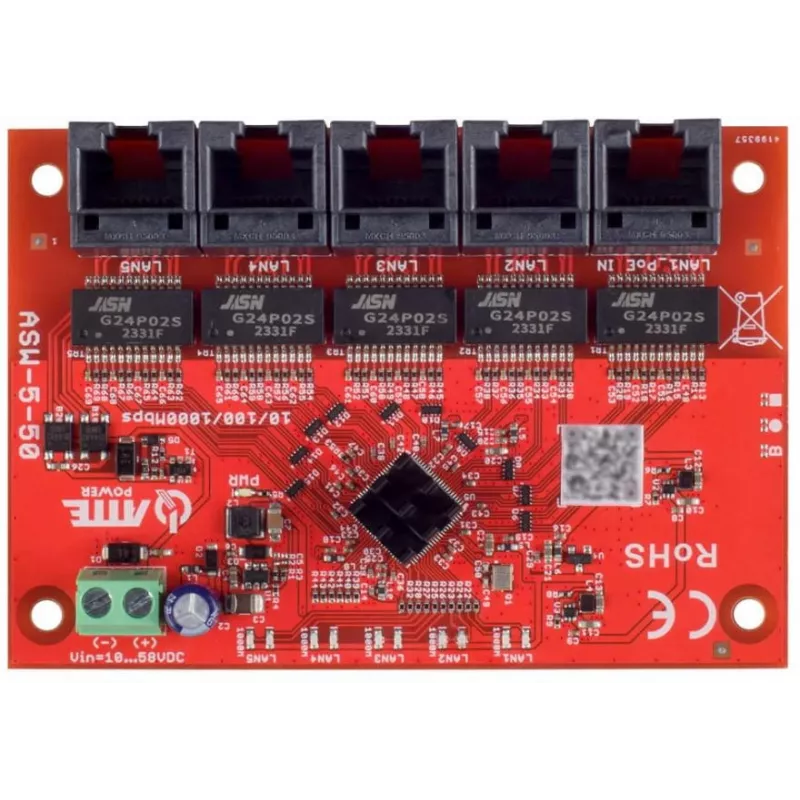

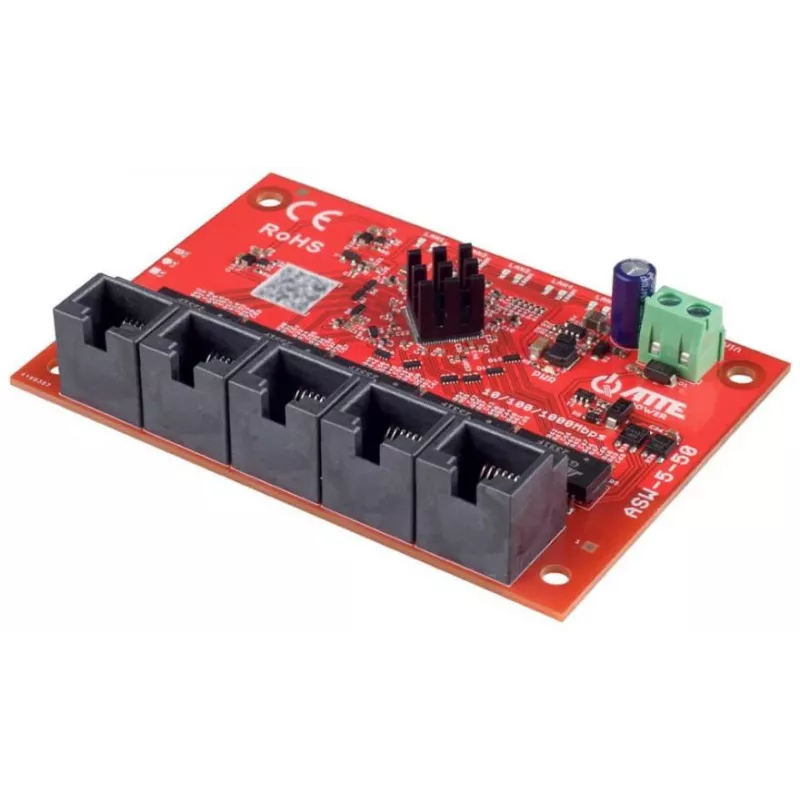

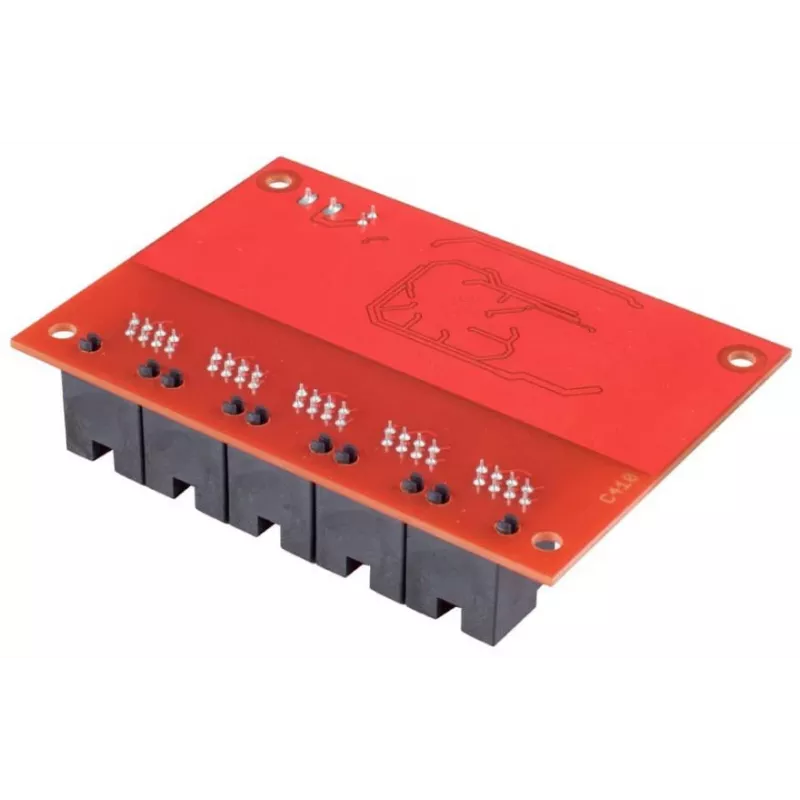

ATTE ASW-5-50-OF Switch PoE não gerido de 5 portas, 4 portas PoE, orçamento 50W, 10/100 Mbps, caixa metálica

The ATTE ASW-5-50-OF is a compact and reliable unmanaged PoE switch designed for small to medium-sized networks. With 5 Fast Ethernet ports, 4 of which support PoE (IEEE 802.3af/at), it delivers power and data over a single cable, simplifying installation and reducing cable clutter. The switch offers a total PoE power budget of 50W, with up to 30W per port, making it ideal for powering IP cameras, VoIP phones, and wireless access points.

Advantages

Plug-and-play operation with no configuration required, saving time and effort. The metal housing ensures durability and efficient heat dissipation, while the compact desktop and wall-mountable design fits seamlessly into any environment. Auto MDI/MDIX eliminates the need for crossover cables, and store-and-forward switching ensures reliable data transmission.

Suitable for

• Small office/home office (SOHO) networks
• Surveillance systems with PoE IP cameras
• VoIP phone deployments
• Wireless access point installations
• Retail and hospitality environments

Key specifications

• 5 x 10/100 Mbps Ethernet ports (4 PoE, 1 uplink)
• PoE standard: IEEE 802.3af/at
• Total PoE power budget: 50W
• Max power per PoE port: 30W
• Switching capacity: 1 Gbps
• MAC address table: 1K
• Forwarding mode: Store-and-Forward
• LED indicators: Power, Link/Act, PoE Status
• Power supply: External DC adapter (52V DC)
• Operating temperature: -10°C to 40°C
• Housing material: Metal
• Mounting: Desktop, wall-mount

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. The switch is best suited for applications requiring reliable PoE delivery and basic network connectivity without advanced management features.
