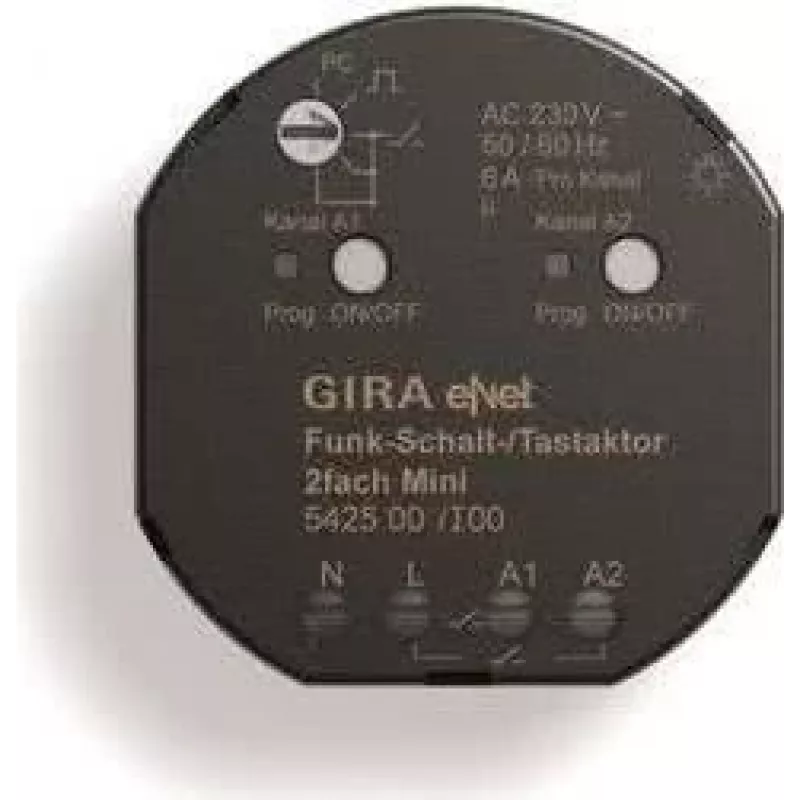

Atuador de comutação/botão via rádio GIRA Mini 2 canais 542500

The GIRA Wireless Switching/Push-button Actuator Mini 2-channel enables remote control of lighting and other electrical loads via EnOcean wireless technology. With two independent potential-free relay outputs, it offers flexible switching, push-button, and time switch functions in a compact flush-mounted design.

Advantages

Its zero-crossing switching extends relay life and reduces interference. The actuator supports up to 35 taught-in transmitters and can be locally controlled via a universal control voltage input (8–230V UC), making it adaptable to existing installations.

Suitable for

• Retrofit projects where no additional wiring is desired
• Controlling lighting, fans, or other resistive loads up to 10 A per channel
• Integration with EnOcean-based smart home systems
• Flush-mounted installation in standard 60 mm boxes or surface-mounted using appropriate enclosures

Key specifications

• 2 channels, each with normally open potential-free contact
• EnOcean wireless, 868.3 MHz
• Supply voltage: 230V AC
• Max. switching current per channel: 10 A (resistive)
• Max. incandescent lamp load: 2000 W
• Max. LED lamp load: 600 W (max. 200 W per channel)
• Standby loss: 0.8 W
• Operating temperature: -20°C to +50°C
• Protection class: IP20

Recommendations

For reliable operation, ensure the actuator is installed within range of EnOcean transmitters and that the connected load does not exceed the specified limits per channel. Use with GIRA EnOcean-compatible switches and sensors for seamless integration.
