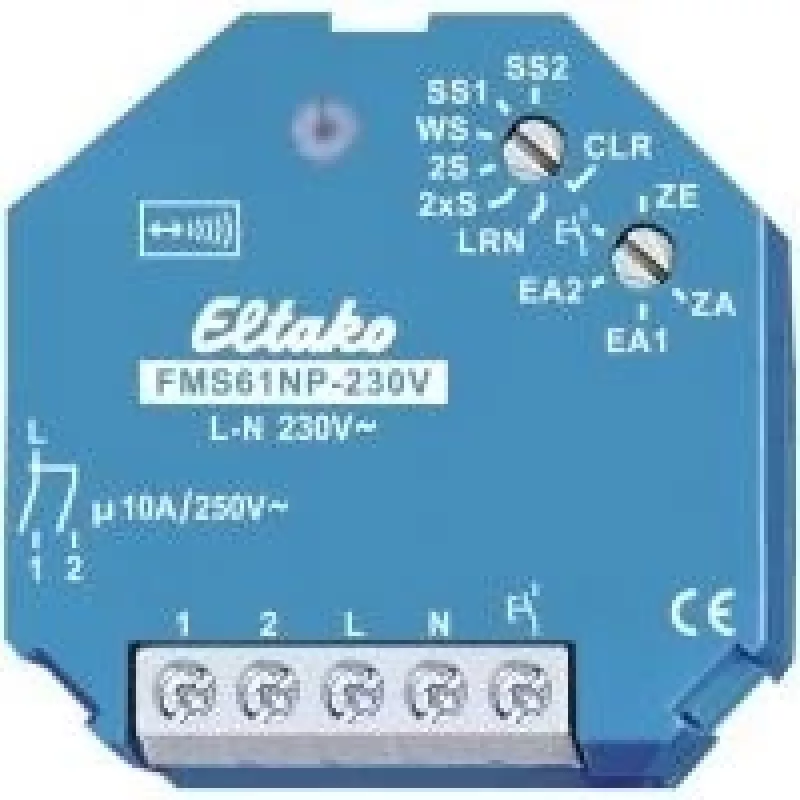

Atuador de comutação Eltako FMS61NP-230V

The Eltako FMS61NP-230V is a flush-mounted switching actuator designed for reliable control of lighting and other electrical loads. With a compact housing measuring 45 mm x 33 mm x 45 mm, it fits into standard installation boxes and installations where space is limited. The device accepts an input voltage of 230–250 V and provides a switching capacity suitable for many residential and light commercial applications.

Advantages

The actuator offers a high switching capacity up to 2000 W while maintaining a small physical footprint, allowing installation in constrained spaces. It operates at a nominal current of 10 A and is engineered for steady on/off switching of resistive and many inductive loads typical in lighting circuits. Its flush-mounted design integrates with standard electrical installation practices for a tidy and concealed setup.

Suitable for

Key specifications

How to use

Install the actuator in a standard flush-mounted box following local electrical codes and safety practices. Connect the supply live and neutral conductors and the switched live output to the controlled load according to the wiring diagram supplied by the manufacturer. After wiring, secure the actuator and reassemble the cover or switch interface. Use the actuator for manual switching through a connected switch or as part of a control system where on/off switching is required.

Recommendations

Verify compatibility of the connected load with the actuator’s 10 A rating and 2000 W maximum switching capacity. For inductive loads such as motors or certain fluorescent/LED drivers, confirm that inrush currents and device types are acceptable. Ensure all installation and maintenance work is performed by a qualified electrician and that local regulations are followed.
