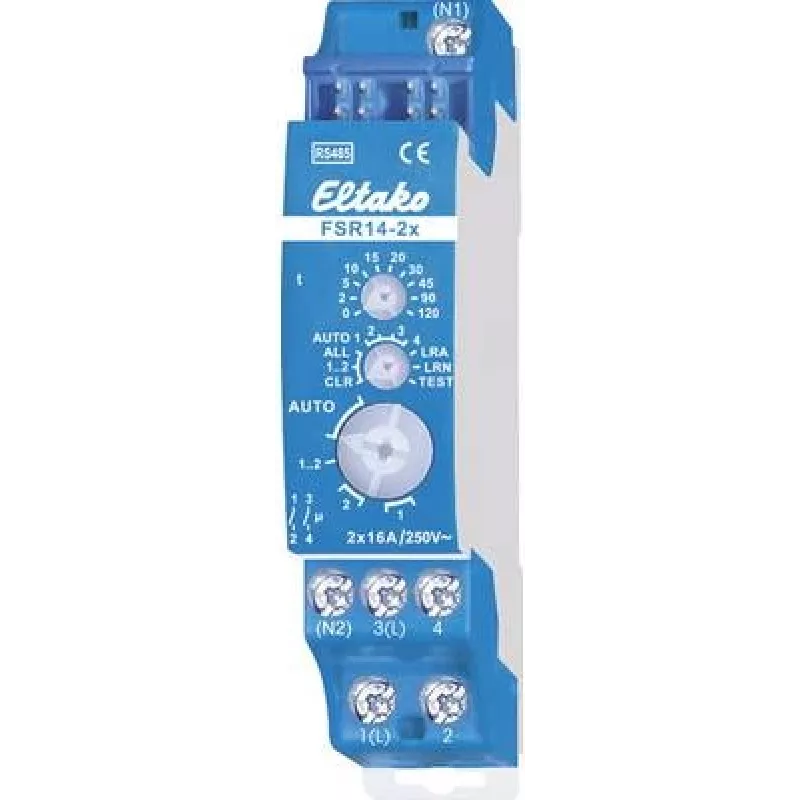

Atuador de comutação Eltako FSR14-2X 2 canais 2000 W atuador de comutação

Eltako FSR14-2X is a compact 2-channel switching actuator designed for DIN-rail installation in building automation systems. Each channel provides a relay output for on/off control of lighting and electrical loads with a rated switching capacity of 2000 W at 250 V and 50 Hz. The device is intended for integration into residential and commercial control installations where centralized switching of appliances and luminaires is required.

Advantages

The FSR14-2X offers two independent channels in an 18 mm wide housing for space-saving DIN-rail mounting. With a maximum switching power of 2000 W per channel and standard 250 V/50 Hz operation, it supports a wide range of lighting and resistive loads. Its compact dimensions (18 mm × 58 mm depth) simplify installation in distribution cabinets and enable neat wiring within control panels.

Suitable for

Key specifications

How to use

Mount the actuator on a standard DIN rail and connect the supply voltage and load conductors according to the wiring diagram provided by the manufacturer. Assign control inputs or bus connections as required by the building automation system to operate the two relay outputs. Verify correct wiring and protective devices before energizing the unit. Test each channel by switching loads on and off to confirm proper operation.

Recommendations

Use appropriate circuit protection and ensure loads do not exceed the 2000 W rating per channel. Observe local electrical codes and install the device in a distribution enclosure with adequate ventilation and access for maintenance.
