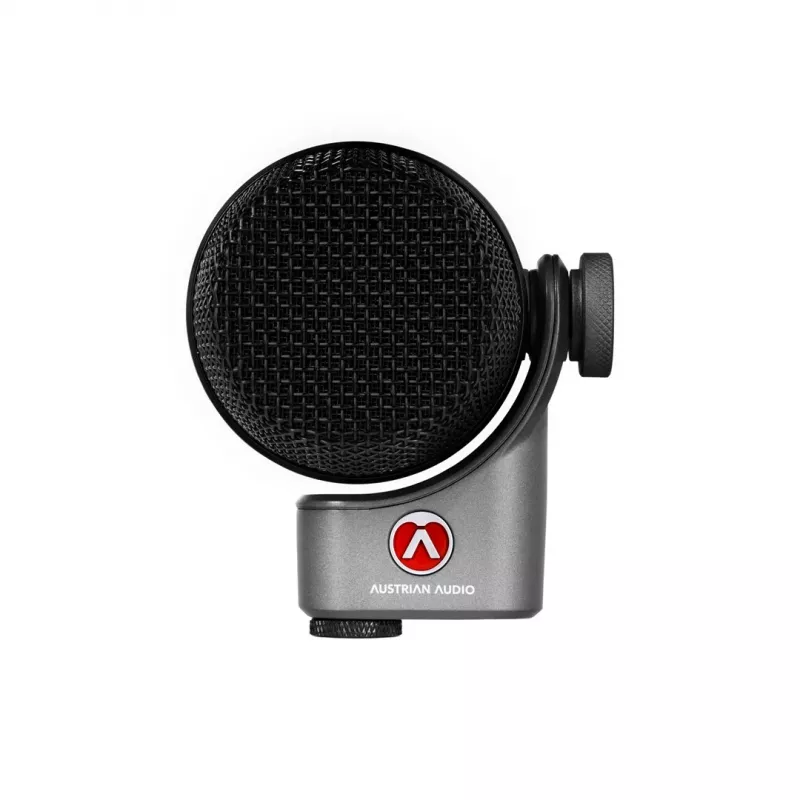

Austrian Audio OC-B6 Microfone de Condensador de Grande Diafragma

The Austrian Audio OC-B6 is a professional large-diaphragm condenser microphone designed for studio and live applications. Featuring a hand-made CKR12 ceramic capsule, it delivers exceptional audio quality with a wide frequency response of 20 Hz to 20 kHz. The microphone offers multiple polar patterns (cardioid, figure-8, omni, hypercardioid, and custom via PolarDesigner app) and dual output capability for simultaneous main and rear capsule signals. With a high SPL handling of up to 158 dB (with -20dB pad) and low self-noise of 9 dB SPL, the OC-B6 is ideal for capturing vocals, instruments, and complex sound sources with precision.

Advantages

The OC-B6 stands out for its versatile polar pattern selection, allowing users to tailor the pickup to any recording scenario. The dual output feature enables creative routing and processing of the rear capsule signal independently. The included PolarDesigner app (with optional OCR8 Bluetooth dongle) provides wireless control over polar patterns and filters, making it a flexible tool for modern studios. The all-metal housing ensures durability, while the comprehensive studio set includes a spider mount, mic clip, mini XLR cable, windscreen, and wooden case.

Suitable for

• Professional studio recording (vocals, acoustic instruments, drums)
• Broadcast and podcasting
• Live sound reinforcement
• Field recording and sound design
• Instrument miking (guitar amps, piano, strings)

Key specifications

• Transducer Type: Condenser
• Polar Patterns: Cardioid, Figure-8, Omni, Hypercardioid, Custom (via PolarDesigner app)
• Frequency Range: 20 Hz - 20 kHz
• Sensitivity: 13 mV/Pa
• Equivalent Noise Level: 9 dB SPL (A-weighted)
• Max SPL: 158 dB SPL (with -20dB pad)
• Impedance: 275 Ohms
• Power Requirement: 48V Phantom Power (IEC 61938)
• Output Connector: XLR 3-pin (main), Mini XLR 5-pin (rear capsule output)
• Pad Settings: -10 dB, -20 dB
• High-Pass Filter: 40 Hz (2nd order), 80 Hz (2nd order)
• Included Accessories: OC818 Microphone, OCS8 Spider Mount, OCH8 Mic Clip, OCC8 Mini XLR Cable, OCF8 Windscreen, OCW8 Wooden Case

Recommendations

The Austrian Audio OC-B6 is a top-tier microphone for professionals seeking versatility and pristine sound. Its dual output and wireless control capabilities make it a future-proof investment for any serious recording setup.
