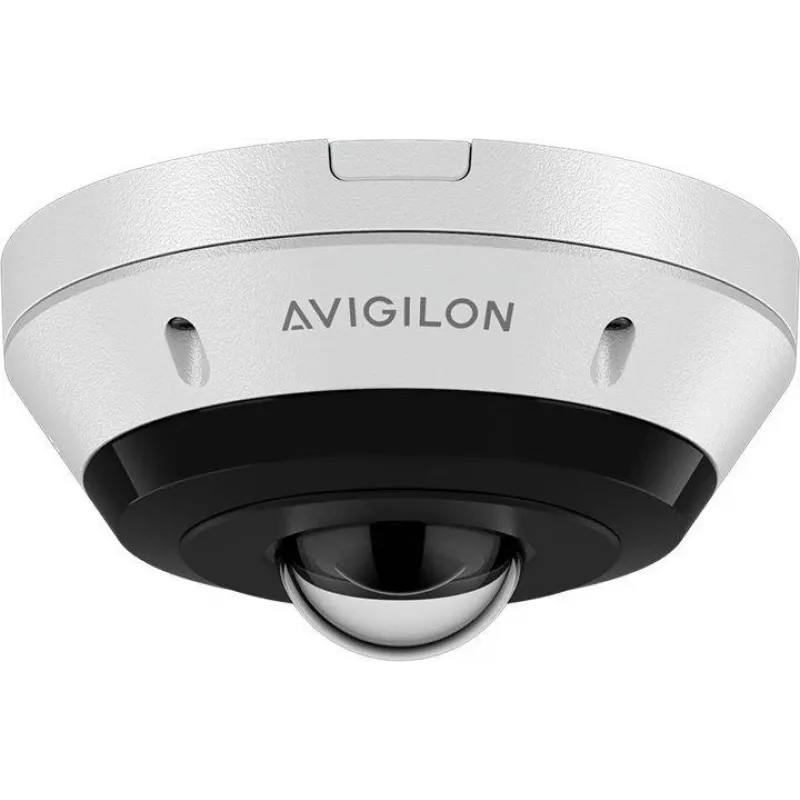

Avigilon Unity 12.0C-H6A-FE-360-DO1-IR Câmara Fisheye 12MP H6A, 1,74mm Distância Focal Fixa, Montagem à Superfície, WDR, IR, IP66/IP67

The Avigilon Unity 12.0C-H6A-FE-360-DO1-IR is a high-performance 12MP fisheye camera designed for 360° panoramic surveillance. Featuring a 1.74mm fixed lens, integrated IR illumination, and robust IP66/IP67 weatherproofing, this camera delivers exceptional image quality in demanding indoor and outdoor environments.

Advantages

With 12MP resolution and H.265 compression, the camera provides detailed, bandwidth-efficient video. The 360° panoramic view eliminates blind spots, while True Day/Night functionality with IR-cut filter ensures 24/7 monitoring. IK10 vandal resistance and wide operating temperature range (-40°C to 60°C) guarantee reliability in harsh conditions.

Suitable for

• Retail stores and shopping centers
• Warehouses and logistics facilities
• Parking lots and building perimeters
• Educational campuses and public spaces

Key specifications

• 12 Megapixel 1/1.7" Progressive Scan CMOS sensor
• 1.74mm fixed fisheye lens, 360° panoramic field of view
• Video compression: H.265, H.264, MJPEG
• Wide Dynamic Range (WDR) for high-contrast scenes
• Integrated IR illumination for low-light operation
• True Day/Night with IR-cut filter
• IP66/IP67 dust and water resistant, IK10 vandal resistant
• Surface mount design
• Power over Ethernet (PoE) for simple installation
• Built-in microphone, audio input/output
• MicroSD card slot for edge storage
• 10/100 Base-T Ethernet (RJ45)
• Avigilon Self-Learning Video Analytics
• Compatible with Avigilon Unity Video (formerly ACC)

Recommendations

For optimal performance, pair with an Avigilon Unity Network Video Recorder (NVR) and use high-quality PoE switches. Ensure proper mounting height for best 360° coverage.
