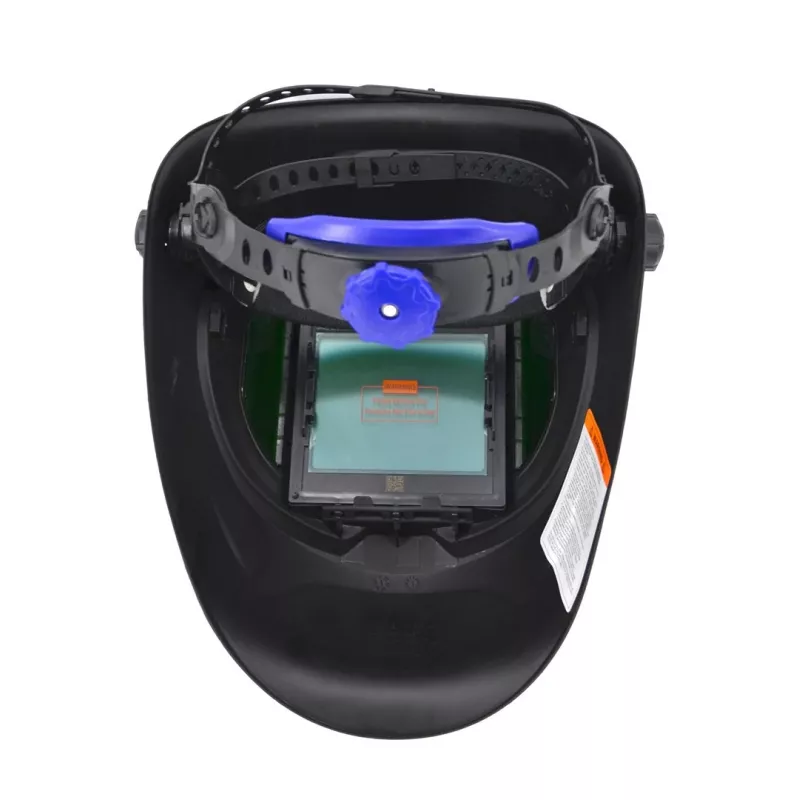

AWTOOLS máscara de soldar automática escura LYG-7 com classe ótica 1/1/1/2, campo de visão 92x42 mm, tonalidade DIN 4/9-13, modo de esmerilhamento

With a true 1/1/1/2 optical class, the AWTOOLS LYG-7 eliminates distortion and delivers razor-sharp clarity across the entire 92 x 42 mm viewing area — every weld pool detail stays visible without lifting the hood. The auto-darkening filter reacts in just 1/25,000 of a second, shielding your eyes the instant the arc strikes, while permanent UV/IR protection up to DIN 16 keeps harmful radiation out even in the light state.

Overview

Built for professional welders and demanding hobbyists, the LYG-7 combines a lightweight, high-impact polypropylene shell with a versatile auto-darkening filter. The external shade knob lets you steplessly adjust from DIN 9 to 13 to match your process, while the integrated grinding mode means you can switch from welding to surface prep without changing helmets. Two independent arc sensors ensure reliable triggering even in tight or obstructed positions, and the solar-assisted power system with replaceable CR2032 batteries keeps the filter ready for long work sessions.

What stands out

• True 1/1/1/2 optical class for superior clarity and reduced eye strain
• Large 92 x 42 mm viewing area improves visibility of the weld joint and surroundings
• Stepless DIN 9–13 shade control with external knob for quick adjustments
• Grinding function with external switch – no need to swap helmets between tasks
• Permanent UV/IR protection up to DIN 16, even in light state
• Adjustable sensitivity and delay (0.1–1.0 s) to fine-tune for different processes and positions
• Solar cell plus two replaceable CR2032 batteries for extended operation

Technical details

• Optical class: 1/1/1/2
• Viewing area: 92 x 42 mm
• Light state shade: DIN 4
• Dark state shade range: DIN 9–13 (stepless adjustment)
• Shade control: external knob
• Switching time (light to dark): ≤1/25,000 s
• Delay time (dark to light): 0.1–1.0 s adjustable
• Arc sensors: 2
• Power supply: solar cell + 2x CR2032 lithium batteries (replaceable)
• UV/IR protection: up to DIN 16 permanent
• Grinding function: yes (external switch)
• Sensitivity control: adjustable (internal)
• Helmet material: high-impact resistant polypropylene (PP)
• Operating temperature: -5°C to +55°C
• Storage temperature: -20°C to +70°C
• Filter cartridge dimensions: 110 x 90 x 9 mm
• Compliance: CE, EN379, EN175

Our verdict

The AWTOOLS LYG-7 delivers professional-grade optical performance and versatile shade control in a rugged, lightweight package. Whether you're TIG welding thin sheet or grinding between passes, this helmet keeps you protected and productive all day long.
