AWTOOLS Separador hidráulico 10 toneladas com bomba manual e tubos de extensão

Straightening bent frames, separating seized components, and lifting heavy loads can be a struggle without the right equipment. The AWTOOLS Hydraulic Spreader 10 Ton solves these challenges with a powerful 10-ton capacity and a versatile set of attachments. This kit combines a manual hydraulic pump, a single-acting ram, and a spreader jaw to push, pull, spread, and lift with precision. Whether you're working on automotive body repair or industrial maintenance, this tool delivers controlled force exactly where you need it.

Who is it for

This hydraulic spreader is built for professional mechanics, auto body technicians, and industrial maintenance crews. It's also suitable for serious DIY enthusiasts who need reliable heavy-duty lifting and spreading power. If you regularly deal with frame straightening, rusted parts, or heavy machinery, this kit will save you time and effort.

Main features

• 10-ton (10,000 kg) maximum lifting capacity for demanding jobs
• Manual hydraulic hand pump with integrated overload protection valve for safe operation
• Maximum working pressure of 62 MPa (620 bar / 9000 PSI) for high force output
• Ram stroke of 135 mm and minimum ram height of 390 mm for versatile positioning
• Hydraulic spreader jaws with approximately 90 mm opening for spreading and pulling
• Includes 4 extension tubes (125 mm, 250 mm, 350 mm, 500 mm) for extended reach

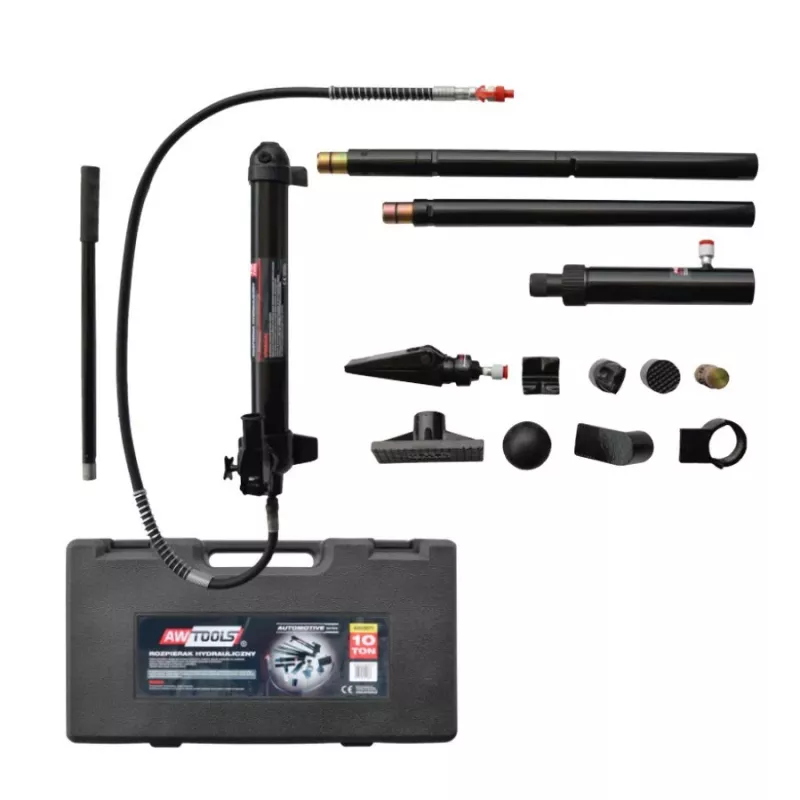

• Complete attachment set: flat base, V-base, wedge head, rubber head, plunger toe, male connector
• Durable blow-molded plastic storage case keeps all components organized

Specifications

• Maximum lifting capacity: 10 Ton (10,000 kg)
• Pump type: Manual hydraulic hand pump
• Maximum working pressure: 62 MPa (620 bar / 9000 PSI)
• Ram stroke: 135 mm
• Minimum ram height: 390 mm
• Hydraulic hose length: 1.5 m
• Pump oil capacity: 500 g
• Construction material: Heavy-duty steel alloy
• Spreader jaw opening: Approximately 90 mm
• Extension tubes: 4 pieces (125 mm, 250 mm, 350 mm, 500 mm)
• Included attachments: Flat base, V-base, wedge head, rubber head, plunger toe, male connector
• Storage case: Durable blow-molded plastic case
• Safety feature: Integrated overload protection valve

Tips

Before use, ensure all connections are tight and the pump is filled with the recommended hydraulic oil. For spreading operations, position the jaws securely against the workpiece to prevent slipping. When extending the ram with the tubes, always check that the extension is fully seated. After use, clean the components and store them in the provided case to protect against dust and damage.
