Axagon RHD-225 METAL Suporte para 2x 2,5 polegadas HDD/SSD em baia de 3,5 polegadas, suporte de ventoinha

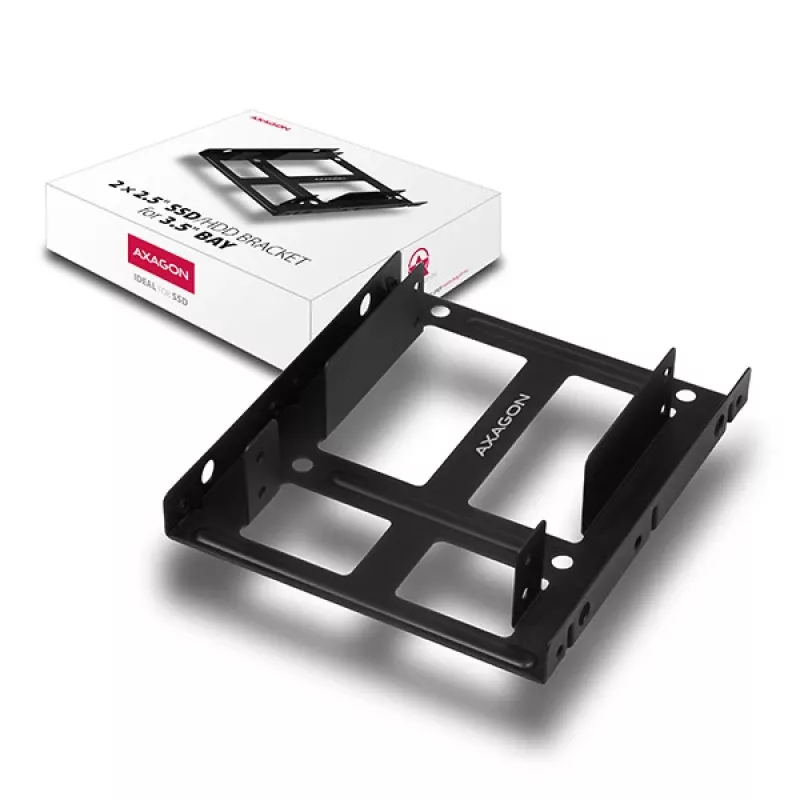

The AXAGON RHD-225 is a black metal mounting frame that allows installation of two 2.5" HDDs or SSDs into a single 3.5" bay of a PC case. The compact steel construction fits the standard 3.5" drive position and includes provision for an 8 cm fan to improve cooling.

Advantages

The frame supports two 2.5" drives up to 9.5 mm in height and is pressed from steel with a black painted finish for durability. Its external dimensions match the standard 3.5" mounting position, and it includes pre-drilled holes for optional fan installation. The package contains mounting screws for both the drives and the frame.

Suitable for

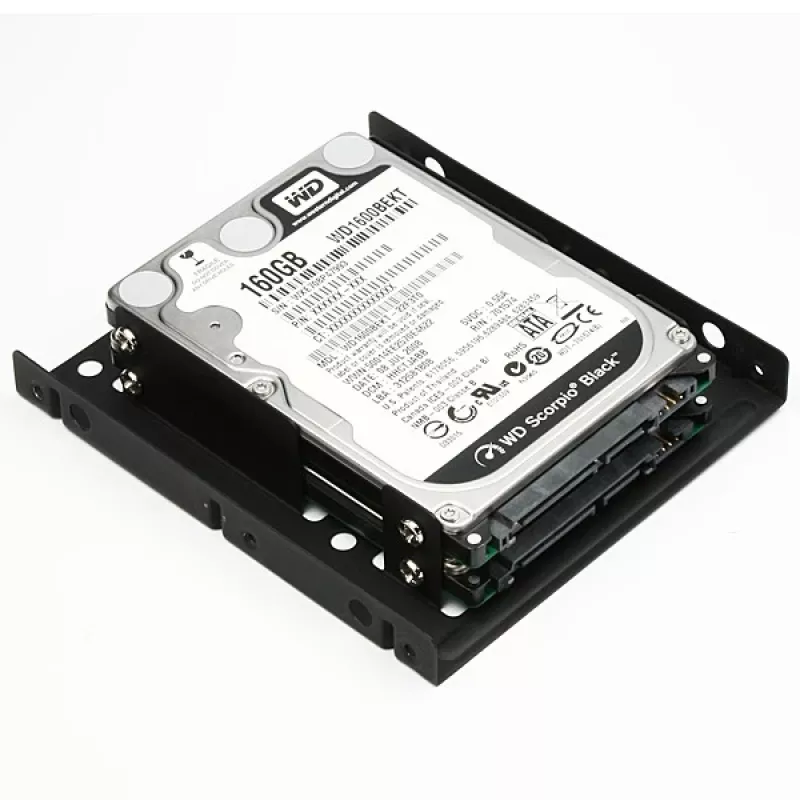

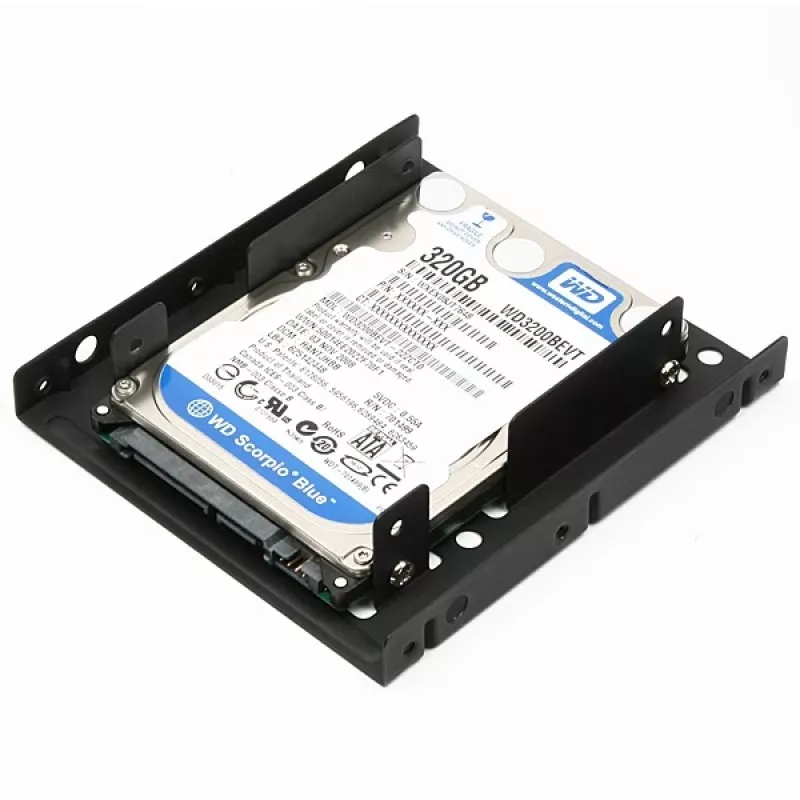

• Installing two 2.5" SSDs or HDDs into one 3.5" bay
• Upgrading storage in compact desktop PCs
• Creating a small internal disk array for additional capacity or redundancy

Key specifications

• Compatible drives: 2 x 2.5" HDD/SSD, up to 9.5 mm height

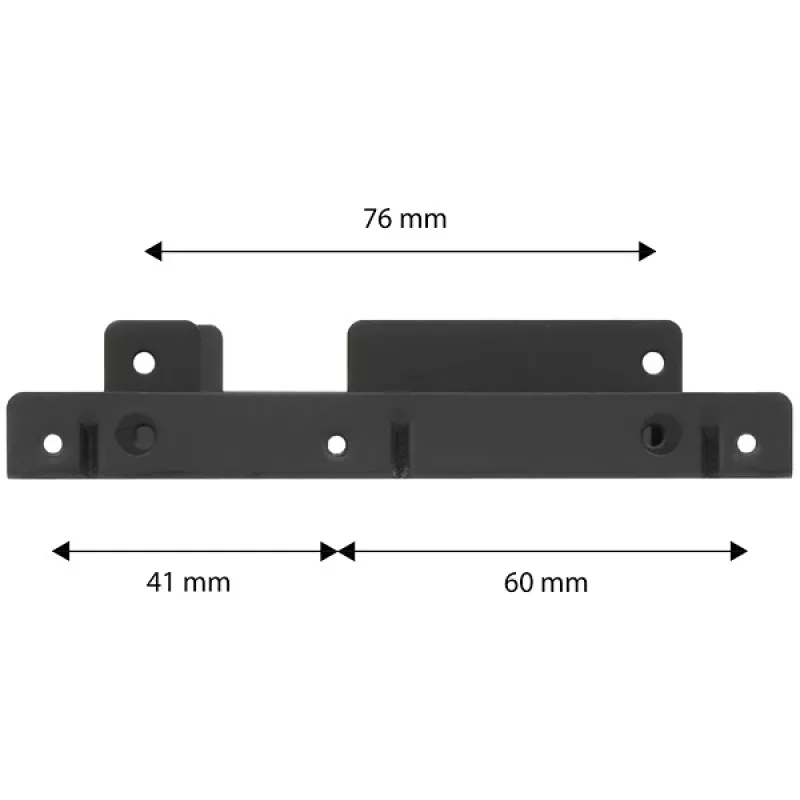

• Frame dimensions (W x D x H): 102 x 115 x 24 mm
• Material: pressed steel, black painted

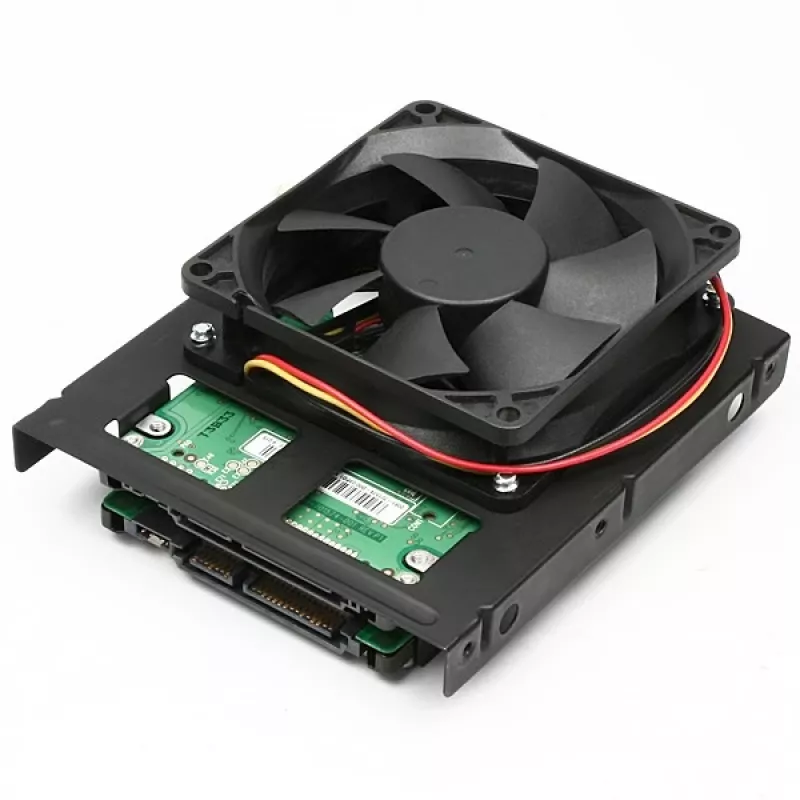

• Fan support: prepared holes for 8 cm fan (fan not included)
• Weight: 58 g

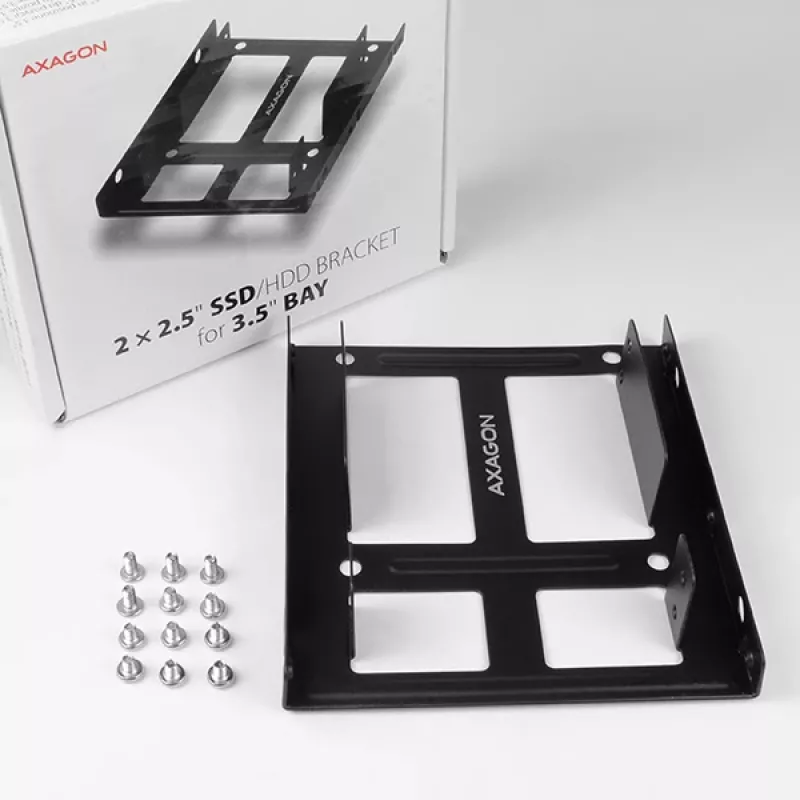

• Included in package: frame, 8 screws for drives, 4 screws for mounting, cardboard box

How to use

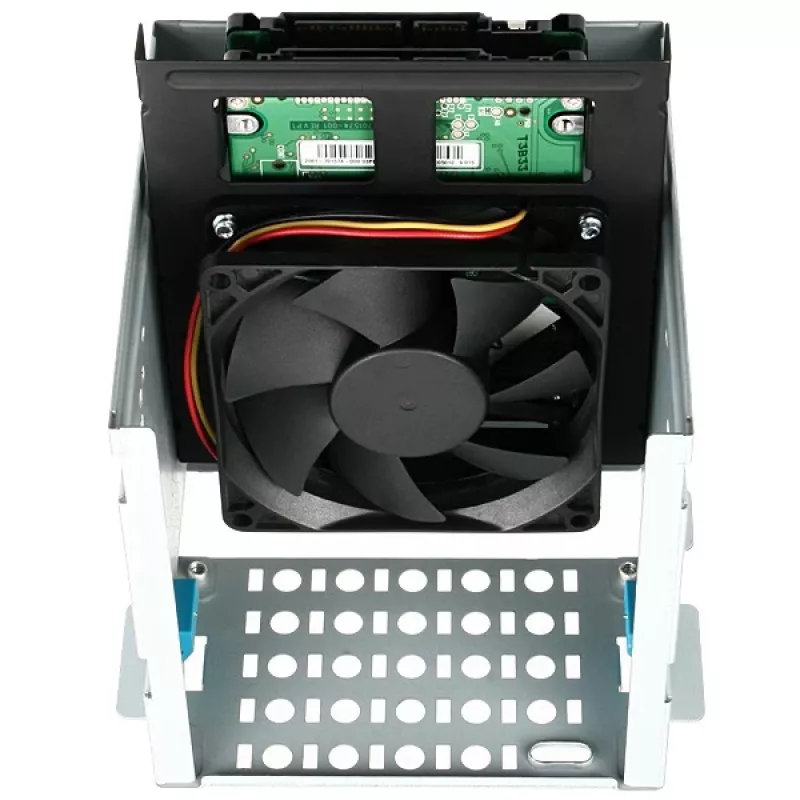

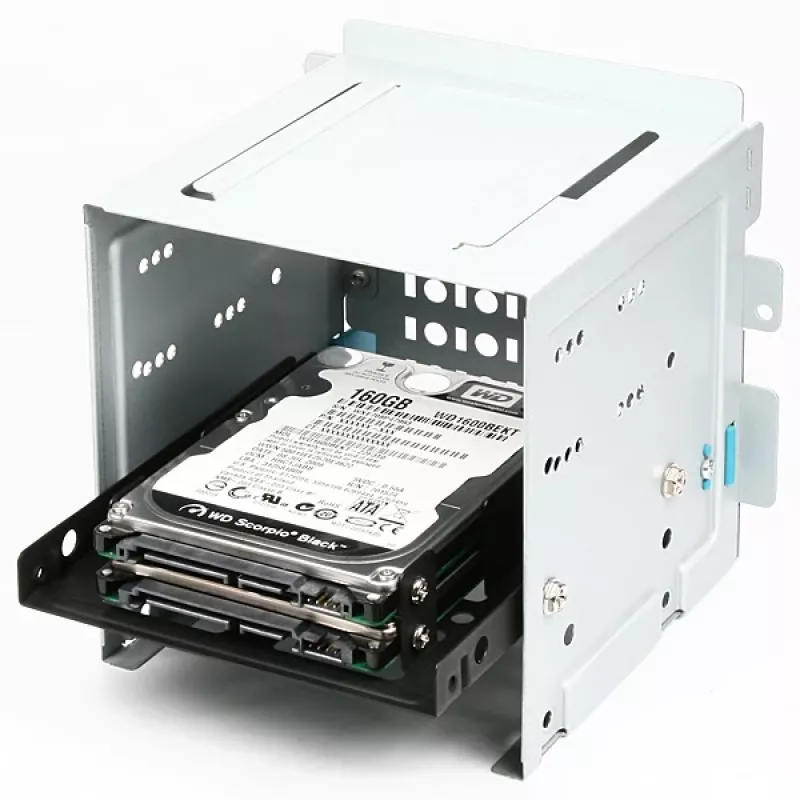

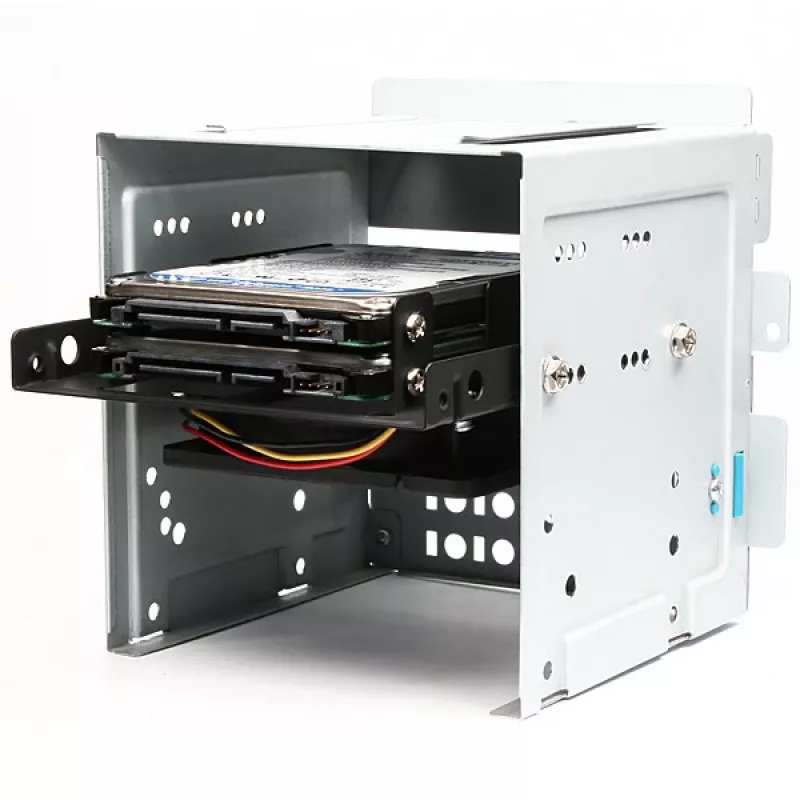

Mount each 2.5" drive into the frame using the provided screws, then install the assembled frame into a 3.5" bay of the PC case using the four supplied mounting screws. If additional cooling is needed, attach an 8 cm fan to the prepared holes and connect it to an appropriate power source in the system.

Recommendations

Ensure drives are compatible with the 9.5 mm height limit and secure all screws firmly. If installing a fan, verify airflow direction and secure cable connections to avoid contact with moving parts.
